CHAUVET COLORdash Batten Quad 12

https://www.mdrlighting.co.nz/web/image/product.template/3889/image_1920?unique=e4c42fb

COLORDASHBATTENQ12

1,098.69 1098.69 NZD 1,098.69

1,098.69

Software Download

    This combination does not exist.

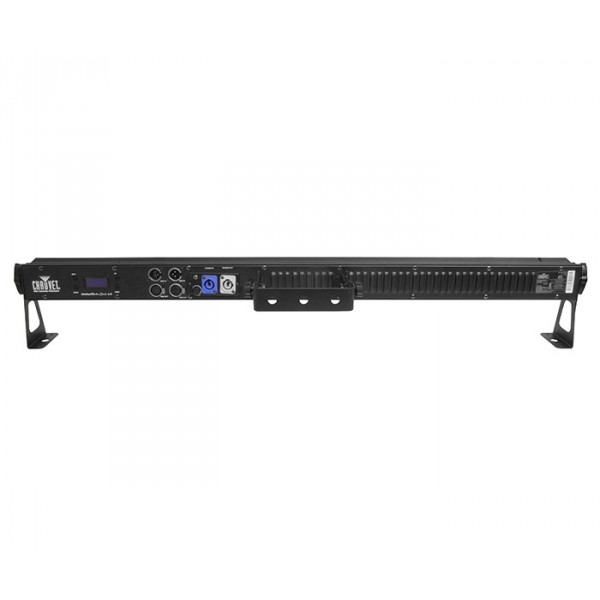

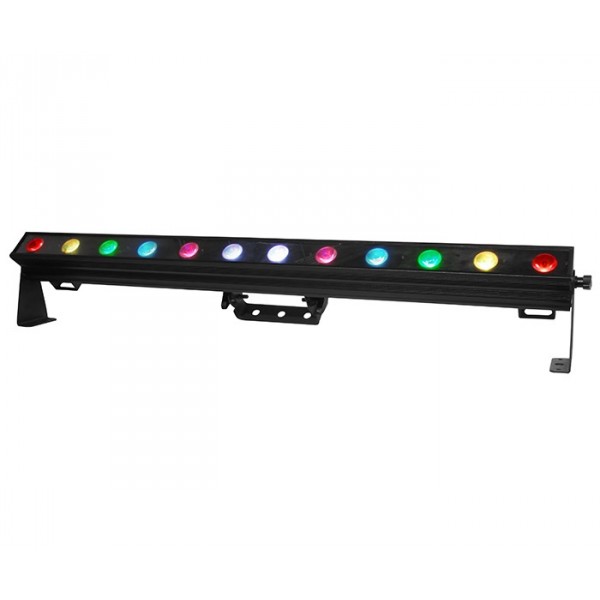

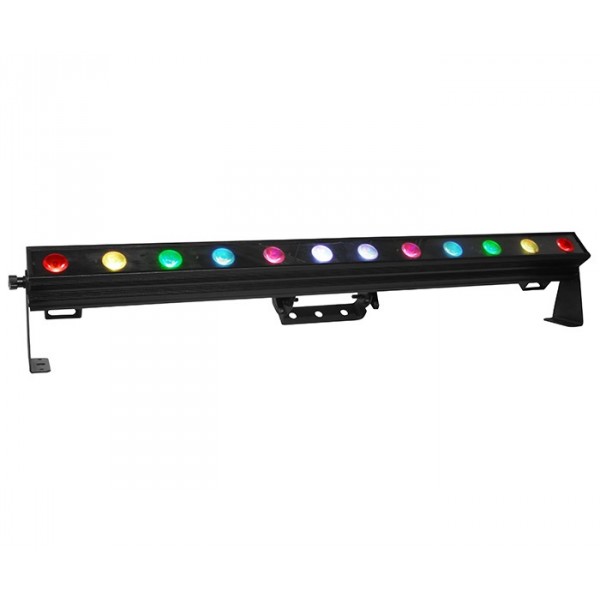

    COLORdash™ Batten-Quad 12 is a linear wash fixture with 12 individually controllable quad-colored RGBA LEDs that produce any variation of white as well as richly saturated colors due to the inclusion of amber LEDs. It pixel maps beautifully when used in multiples because it maintains an even pixel pitch. It can be stacked in an array using the optional CBB-6 bracket or lined up end-to-end. Setup is easy with a hanging bracket, floor trunnions, Neutrik® powerCON® power in and out, and 3- and 5-pin DMX connections.

    FEATURES

    • Built-in auto and custom programs recalled via DMX or Master/Slave
    • Metal construction for added durability
    • Individual pixel control
    • Silent flicker-free operation
    • Mount multiple units in stack or end-to-end to maintain pixel pitch

    SPECIFICATIONS

    • DMX Channels: 4, 6, 10, 48 or 52
    • Data Connectors: 3- and 5-pin XLR
    • Light Source: 12 LEDs (quad-color RGBA) 7 W, (500 mA), 50,000 hours life expectancy
    • Shutter/Strobe: Electronic
    • Strobe Rate: 0 to 20 Hz
    • Stand Alone Color Mixing: Yes
    • Color Temperature Presets: Yes
    • Installed Optics: 20°
    • Beam Angle: 22°
    • Field Angle: 31°
    • Dimming Modes: 4
    • Illuminance: 539 lux @ 5 m
    • Color Temperature (range): 2,800 to 10,000 K
    • IP Rating: IP20, dry location
    • Cable Length: 5 ft (1.5 m)
    • Power Connection: Edison plug to Neutrik® powerCON®
    • Power Input: Neutrik® powerCON®
    • Power Output: Neutrik® powerCON®
    • Power Linking: 9 units @ 120 V; 16 units @ 208 V; 17 units @ 230 V
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power and Current: 175 W, 1.45 A @ 120 V, 60 Hz
    • Power and Current: 168 W, 0.81 A @ 208 V, 60 Hz
    • Power and Current: 175 W, 0.76 A @ 230 V, 50 Hz
    • Weight: 10.6 lb (4.8 kg)
    • Dimensions: 41 x 3.2 x 6.5 in (1041 x 82 x 164 mm)
    • Approvals: CE, MET
