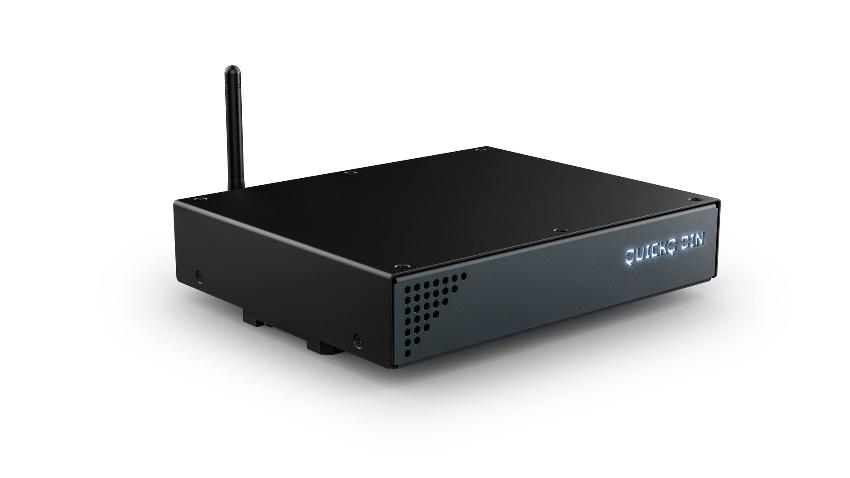

The intuitive simplicity of QuickQ software in a space-saving DIN rail mount solution.
QuickQ DIN supports all QuickQ features including Events, 10Scene and Executes, making it ideal for any installation where space is at a premium and control in a small package is required.
Control up to 4 universes from the device via Art-Net or sACN, the QuickQ DIN also features two RDM-enabled DMX outputs. Easily build installed lighting control systems with connectivity features that include inbuilt Wi-Fi for programming and remote control, and four 10Scene ports for connecting up to forty 10Scene wall plates.
FEATURES
- Ideal for installations and architectural settings
- Featuring four Universes of DMX output
- Two RDM enabled DMX outputs
- Inbuilt Wi-Fi for programming and remote control
- Four 10Scene ports for connection of up to forty 10Scene wall plate
- Features the same intuitive software as QuickQ Consoles
- Simple Hot-Takeover mode allowing an external console to take control
SPECIFICATIONS
Hardware Specifications:
- Universes supported: 4
- Direct DMX Outputs Pheonix Screw Terminal: 2
- External Monitor: 1920 x 1080 HDMI
- Inbuilt Wi-Fi: Yes
- Network Port: 1
- USB Ports: 2
- Power Input: 12v DC
Software Specifications:
- Max Number of DMX Channels: 2048
- Max Number of Fixtures Supported: 2048
- OSC Supported: Yes
- RDM Autopatch for fast show patching
- Fixture library of over 48,000 fixture files
- Built in FX generator
- Colour picker and Gel inbuilt Gel library
- RDM Autopatch for fast show patching
- Offline designer software available for Windows and Mac
- Supported fixtures: All - LEDs, Dimmers & Moving Lights
Rack Weights and Dimensions:
- Width : 200mm (7.8 inches)
- Depth: 165mm (6.5 inches)
- Height: 40mm (1.6 inches)
- Weight: 0.65kg (1.43lb)
Included Accessories:
- Wi-Fi Antenna: 1
- DIN Rail Mount Clips: 2
- 10Scene Connectors: 4
- 12v Power Supply: 1
Boxed Weights and Dimensions:
- Width: 268mm (10.5 inches)
- Depth: 220mm (8.7 inches)
- Height: 130mm (5.1 inches)
- Weight: 1.04kg (2.29 lb)
The GLP impression X5 IP Maxx delivers an extraordinary luminous flux of up to 21,000 lumens, with an expanded colour space, from 37 powerful 40-watt RGBL LEDs.
Equipped with the new iQ.Gamut colour algorithm, the impression X5 IP Maxx generates a clean white point with a CRI 86 / TLCI 88+ at 6,500 Kelvin. It also offers the option of quickly switching to other fixed colour temperatures, all of which are precisely calibrated to the colour temperature curve, while still offering a colour quality of CRI 84+ / TLCI 74 even with warm white light of 3,200 Kelvin.
With the new 19:1 zoom mechanism, the impression X5 IP Maxx delivers up to 3.56 Mcd light intensity, a penetrating 3.3° parallel beam and up to 66° homogeneous wash light. The new, circular lens design offers a modern look, while additional fantastic looks can be generated using individual pixel control with pixel mapping and integrated dynamic pattern effects.
The impression X5 IP Maxx comes with an extensive feature and effects package, including a virtual colour wheel with access to 64 colours from the LEE filter palette, new colour quality control, magenta/green correction, a tungsten simulation and effects channel and a 2-layer effect option.
Thanks to the IP65 certification, the fixture can be used both indoors and outdoors in any weather. The compact design, with a weight of < 30 kg, is designed for easily installation in standard pre-rig truss systems.
The impression X5 IP Maxx can be controlled via DMX, ArtNet, sACN and LumenRadio CRMX. It also has NFC and the iQ.Mesh module for convenient configuration via the GLP iQ.Service app.
