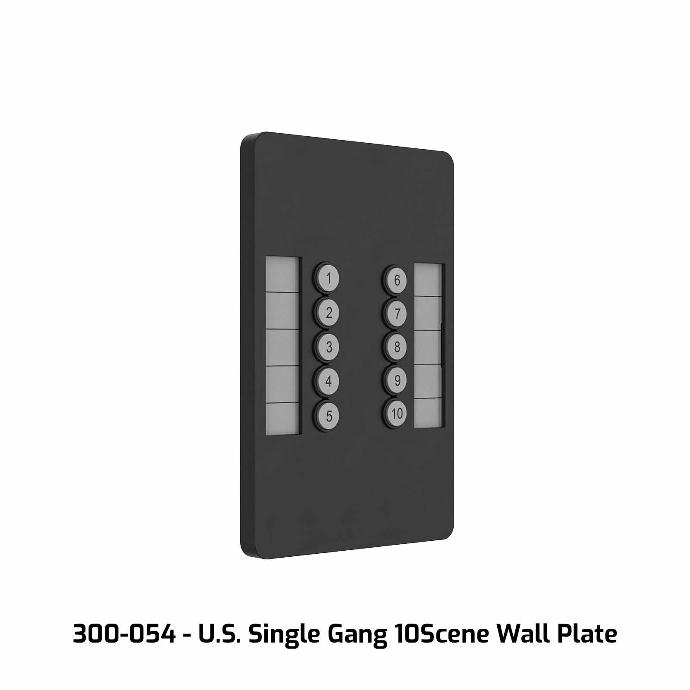

ChamSys GeNetix 10 Scene wall plate (dual pack) US model
CS300054
he 10Scene Wall Plate features ten 10Scene trigger buttons, with dual colour LED status indication.
Connect 10Scene wall plates directly to the QuickQ Rack or to the SnakeSys Gateway interface, where it can then integrate with any MagicQ or QuickQ system for remote Scene activation.
Supplied in a dual pack containing two wall plates available in either EU or US back box fit and with two black and two white clip on faceplates to go with.
FEATURES
- Using standard Cat 5E cable for connectivity
- Connect direct to QuickQ Rack or 10Scene Gateway, no power injectors required
- Easy to daisy chain – up to ten 10Scene wall plates per chain
- Long distance – one 10Scene at 1000 metres or five 10Scenes in a chain at 300m
- Supplied in a dual pack containing 2 wall plates, 2 white faceplates and 2 black faceplates
- Available in EU (Part no:300-055) or US (Part no:300-054) single gang backbox fit
SPECIFICATIONS
Hardware Specifications:
- 10Scene Buttons: 10
- Dual Colour Red/Blue buttons: Yes
- Powered via 10Scene Protocol: Yes
- Max Number of 10Scene wall plates per chain: 10
- Compatible with QuickQ Rack: Yes (In-built connectors or via Gateway)
- Compatible with both MagicQ & QuickQ systems: Yes (via Gateway)
The GLP impression X5 IP Maxx delivers an extraordinary luminous flux of up to 21,000 lumens, with an expanded colour space, from 37 powerful 40-watt RGBL LEDs.
Equipped with the new iQ.Gamut colour algorithm, the impression X5 IP Maxx generates a clean white point with a CRI 86 / TLCI 88+ at 6,500 Kelvin. It also offers the option of quickly switching to other fixed colour temperatures, all of which are precisely calibrated to the colour temperature curve, while still offering a colour quality of CRI 84+ / TLCI 74 even with warm white light of 3,200 Kelvin.
With the new 19:1 zoom mechanism, the impression X5 IP Maxx delivers up to 3.56 Mcd light intensity, a penetrating 3.3° parallel beam and up to 66° homogeneous wash light. The new, circular lens design offers a modern look, while additional fantastic looks can be generated using individual pixel control with pixel mapping and integrated dynamic pattern effects.
The impression X5 IP Maxx comes with an extensive feature and effects package, including a virtual colour wheel with access to 64 colours from the LEE filter palette, new colour quality control, magenta/green correction, a tungsten simulation and effects channel and a 2-layer effect option.
Thanks to the IP65 certification, the fixture can be used both indoors and outdoors in any weather. The compact design, with a weight of < 30 kg, is designed for easily installation in standard pre-rig truss systems.
The impression X5 IP Maxx can be controlled via DMX, ArtNet, sACN and LumenRadio CRMX. It also has NFC and the iQ.Mesh module for convenient configuration via the GLP iQ.Service app.
