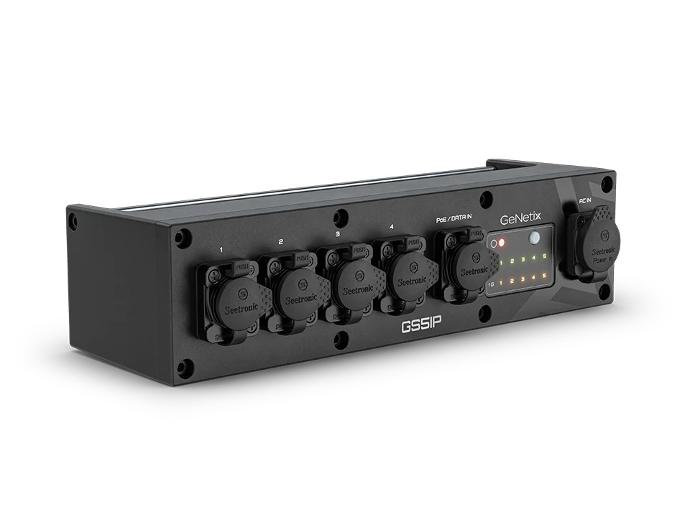

GeNetix Switch 5IP is a five-port IP65-rated unmanaged Gigabit network switch that can be powered either via PoE or via Mains power to its PowerCon True1 Mains Input connector. This compact and rugged all-weather device comes with multiple rigging options for easily mounting in your rig. Port Status LEDs provide visual indication to know if ports are connected/active and if running at Gigabit speed.
FEATURES
- 5 port Unmanaged Gigabit Network Switch
- IP65 Rated
- Locking Ethernet Connectors
- Can be mains or PoE Powered
- PowerCon True1 Top Mains Input
- M12 Threaded Insert for Clamp Mounting
- Built in Rail for secondary Safety bond when rigged
SPECIFICATIONS
Hardware Specifications:
- Network Ports: 5
- Mains Input: PowerCon True1 Top
- Can be PoE Powered: Yes
- Port Status LEDs: Yes
- M12 Clamp Fixing: Yes
- Safety Bond Fixing Rail: Yes
Software Specifications:
- Gigabit Ethernet: Yes
- Unmanaged Network Switch: Yes
Included Accessories:
- Neutrik powerCON TRUE1 Power Cable: 1
Node Weights and Dimensions:
- Width: 274mm (10.81 inches)
- Depth: 76mm (3,0 inches)
- Height: 68mm (2.68 inches)
- Weight: 1.40 KG (3.09 lb)
The GLP impression X5 IP Maxx delivers an extraordinary luminous flux of up to 21,000 lumens, with an expanded colour space, from 37 powerful 40-watt RGBL LEDs.
Equipped with the new iQ.Gamut colour algorithm, the impression X5 IP Maxx generates a clean white point with a CRI 86 / TLCI 88+ at 6,500 Kelvin. It also offers the option of quickly switching to other fixed colour temperatures, all of which are precisely calibrated to the colour temperature curve, while still offering a colour quality of CRI 84+ / TLCI 74 even with warm white light of 3,200 Kelvin.
With the new 19:1 zoom mechanism, the impression X5 IP Maxx delivers up to 3.56 Mcd light intensity, a penetrating 3.3° parallel beam and up to 66° homogeneous wash light. The new, circular lens design offers a modern look, while additional fantastic looks can be generated using individual pixel control with pixel mapping and integrated dynamic pattern effects.
The impression X5 IP Maxx comes with an extensive feature and effects package, including a virtual colour wheel with access to 64 colours from the LEE filter palette, new colour quality control, magenta/green correction, a tungsten simulation and effects channel and a 2-layer effect option.
Thanks to the IP65 certification, the fixture can be used both indoors and outdoors in any weather. The compact design, with a weight of < 30 kg, is designed for easily installation in standard pre-rig truss systems.
The impression X5 IP Maxx can be controlled via DMX, ArtNet, sACN and LumenRadio CRMX. It also has NFC and the iQ.Mesh module for convenient configuration via the GLP iQ.Service app.
