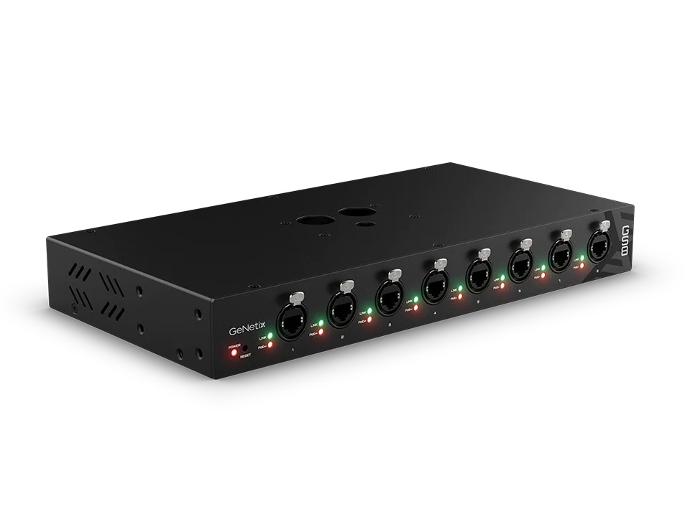

GeNetix Switch 8 is an eight-port unmanaged Gigabit PoE network switch that provides a total output of up to 200W of Power over Ethernet across its 8 ports. Ports 1-4 support IEEE 802.3bt up to 100W per port. In modes A & B, all ports support 802.3af and 802.3at standards. This rack mountable switch features a rear PowerCon True1 Mains input connector and is also truss mountable via its M12 threaded insert.
FEATURES
- 200w 8 port Unmanaged Gigabit PoE Network Switch
- Supports Multiple PoE Specifications: Ports 1-4 802.3bt and on all ports 802.3af, 802.3at in Modes A & B
- Ports 1-4 Support PoE++ (up to 100w per port), Ports 5-8 PoE+ (up to 30w per port) up to 200w switch limit
- Locking Ethernet Connectors
- PowerCon True1 Top Mains Input
- Desktop or 19” Rack Mountable (1U)
- M12 Threaded Insert for Clamp Mounting
SPECIFICATIONS
Hardware Specifications:
- Network Ports: 8
- Mains Input: PowerCon True1 Top
- Port Status LEDs: Yes
- 802.3af and 802.3at in Modes A & B: Yes
- 802.3bt up to 100W per Port: Ports 1-4
- Removable Rack Ears: Yes
Software Specifications:
- Gigabit Ethernet: Yes
- Unmanaged Network Switch: Yes
Included Accessories:
- Neutrik powerCON TRUE1 Power Cable: 1
Node Weights and Dimensions:
- Width (No Rack Ears): 330mm (12.99 inches)
- Width (With Ears): 482mm (18.98 inches)
- Depth: 172mm (6.77 inches)
- Height: 43mm (1.69 inches)
- Weight: 2.05 KG (4.52 lb)
The GLP impression X5 IP Maxx delivers an extraordinary luminous flux of up to 21,000 lumens, with an expanded colour space, from 37 powerful 40-watt RGBL LEDs.
Equipped with the new iQ.Gamut colour algorithm, the impression X5 IP Maxx generates a clean white point with a CRI 86 / TLCI 88+ at 6,500 Kelvin. It also offers the option of quickly switching to other fixed colour temperatures, all of which are precisely calibrated to the colour temperature curve, while still offering a colour quality of CRI 84+ / TLCI 74 even with warm white light of 3,200 Kelvin.
With the new 19:1 zoom mechanism, the impression X5 IP Maxx delivers up to 3.56 Mcd light intensity, a penetrating 3.3° parallel beam and up to 66° homogeneous wash light. The new, circular lens design offers a modern look, while additional fantastic looks can be generated using individual pixel control with pixel mapping and integrated dynamic pattern effects.
The impression X5 IP Maxx comes with an extensive feature and effects package, including a virtual colour wheel with access to 64 colours from the LEE filter palette, new colour quality control, magenta/green correction, a tungsten simulation and effects channel and a 2-layer effect option.
Thanks to the IP65 certification, the fixture can be used both indoors and outdoors in any weather. The compact design, with a weight of < 30 kg, is designed for easily installation in standard pre-rig truss systems.
The impression X5 IP Maxx can be controlled via DMX, ArtNet, sACN and LumenRadio CRMX. It also has NFC and the iQ.Mesh module for convenient configuration via the GLP iQ.Service app.
