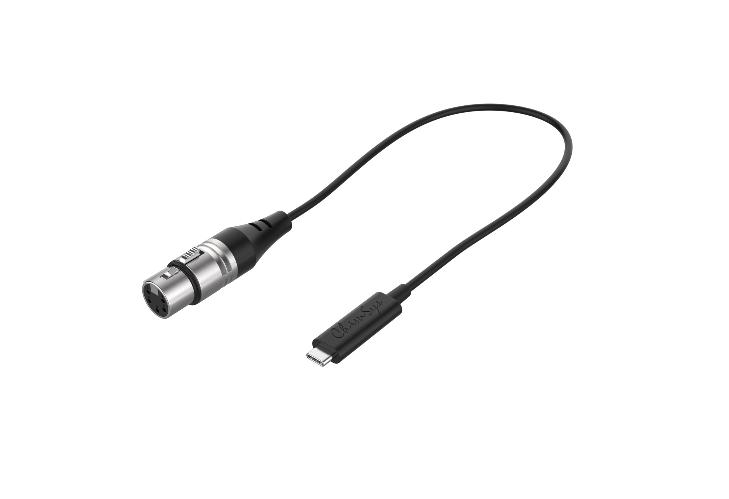

The MagicDMX Full USB to DMX Interface offers a full universe of DMX control with RDM support and without any time limit. It has the option of being used either as Output, or as an Input enabling use for monitoring DMX. Remotely set DMX addresses, select fixture modes and auto patch RDM compliant fixtures to MagicQ.
FEATURES
- One Universe DMX output
- 5 pin female XLR
- USB-C connector
- Basic electrical protection
- LED status indicator
SPECIFICATIONS
Hardware Specifications:
- DMX Port(s): 1
- RDM Support: Yes
- USB Port(s): 1 (USB-C)
- Unlocks ‘demo mode features: No
- Time Restriction: No
Software Specifications:
- Universes: 64
- Channels: 32,768
- Number of fixtures: upto 32,768
- Cues: 5000
- Cue stacks: 2000
- Palettes: 4096
- Groups: 5000
- Media server support: 50 (each different content)
MagicQ features restricted when using MagicDMX Interfaces:
- Execute Window full screen
- Scheduled Events and Automations
- iOS / Android Remote app
- 10Scene Gateway and 10Scene remote app
- Remote Control Protocol (serial, or network)
- Web Server editing (viewing is supported)
- Auto starting Playbacks
- Startup in full screen / saved window positioning
- Playback Synchronisation
- Multi Programming including Net Sessions
- Triggering of playbacks using DMX input
- Mouse control of pan/tilt (only supported when connected to a MagicQ Wing with encoders)
- Audio control and playback synchronisation with Winamp (this is supported when connected via network to a MagicQ console)
- Timecode receive from ArtNet
- Midi Notes & Timecode from 3rd Party USB/Virtual interfaces.
- Audio input from PC/Mac sound card
Included Accessories:
- Soft Shell Carry Case: 1
The GLP impression X5 IP Maxx delivers an extraordinary luminous flux of up to 21,000 lumens, with an expanded colour space, from 37 powerful 40-watt RGBL LEDs.
Equipped with the new iQ.Gamut colour algorithm, the impression X5 IP Maxx generates a clean white point with a CRI 86 / TLCI 88+ at 6,500 Kelvin. It also offers the option of quickly switching to other fixed colour temperatures, all of which are precisely calibrated to the colour temperature curve, while still offering a colour quality of CRI 84+ / TLCI 74 even with warm white light of 3,200 Kelvin.
With the new 19:1 zoom mechanism, the impression X5 IP Maxx delivers up to 3.56 Mcd light intensity, a penetrating 3.3° parallel beam and up to 66° homogeneous wash light. The new, circular lens design offers a modern look, while additional fantastic looks can be generated using individual pixel control with pixel mapping and integrated dynamic pattern effects.
The impression X5 IP Maxx comes with an extensive feature and effects package, including a virtual colour wheel with access to 64 colours from the LEE filter palette, new colour quality control, magenta/green correction, a tungsten simulation and effects channel and a 2-layer effect option.
Thanks to the IP65 certification, the fixture can be used both indoors and outdoors in any weather. The compact design, with a weight of < 30 kg, is designed for easily installation in standard pre-rig truss systems.
The impression X5 IP Maxx can be controlled via DMX, ArtNet, sACN and LumenRadio CRMX. It also has NFC and the iQ.Mesh module for convenient configuration via the GLP iQ.Service app.
