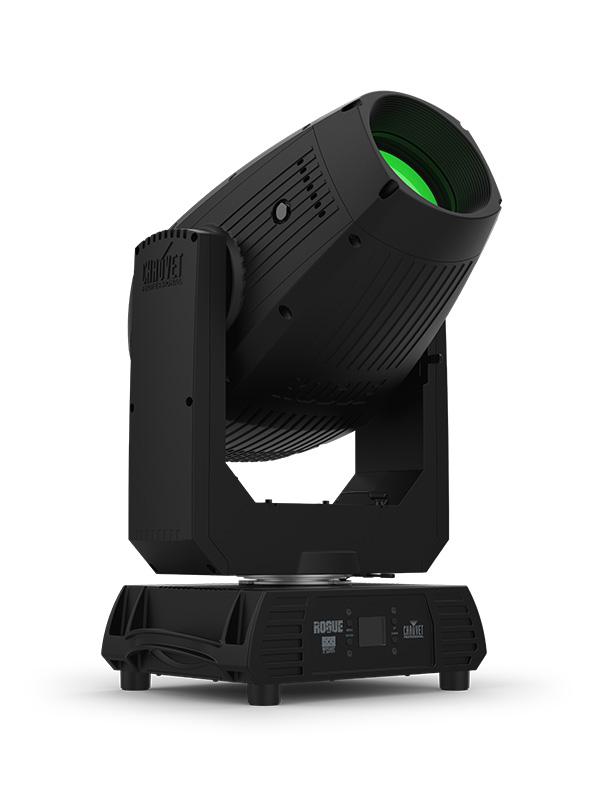

Rogue Outcast 3 Spot is a compact IP65 LED moving head that combines the latest lightweight alloy technology with a wheelhouse that delivers the color possibilities of dual color wheels, the dynamic morphing effects of dual gobo wheels, the beauty of smooth 16-bit fades, and a wide zoom range that adds flexibility to achieving desired coverage. Iris, prism and frost round out its effects, and its durable housing not only weathers outdoor elements but also brings advantages to indoor installations with a low-maintenance impervious design that withstands particulates such as fog and haze.
FEATURES
IP 65 rated LED Spot with (2) color wheels, a static and rotating gobo wheel, motorized zoom, Iris, 5 facet prism, encased in a lightweight aluminum and magnesium alloy
Zoom range of 4.9° to 38.7° to easily cover stages and surfaces from a distance
Perfect gobo morphing between gobo wheels
Two color wheels with 7 colors, split color ability, and continuous variable speed scrolling
Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel
Iris, 5-facet prism, and frost for beam control
Beautiful 16-bit LED dimming for ultimate fade control
IP65 rated power input/output connections for power linking
5-pin DMX input/output connections
RDM enabled for remote addressing and trouble shooting
Selectable PWM settings to maintain flicker free operation on camera
Simple and complex DMX channel profiles for programming versatility
USB-C port for uploading software
SPECIFICATIONS
OPTICAL
- Light Source: 1 LED (CW) 300 W, (5 A), 7044 K, 50,000 hours life expectancy.
- Color Temperature (at full): 7044 K
- Front lens diameter: 119 mm
- CRI: 70
- Beam Angle: 4.9° to 33.7°
- Field Angle: 5.5° to 38°
- Cutoff Angle: 5.6° to 38.7°
- Zoom Range: 4.9° to 38.7°
- Lumens – Source: 20,000
- Lumens – Output: 14,989
- Illuminance (4.9°): 56,916lux @ 5 m
- Illuminance (38.7°) 7,260 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
DYNAMIC EFFECTS
- Pan and Tilt: 540°/270°
- Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
- Colors (1): 7 + white, split colors, continuous scroll at variable speeds
- Colors (2): 7 + white, split colors, continuous scroll at variable speeds
- Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
- Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
- Gobo Size: Gobo Wheel 1 (rotating); size: 25.5 mm (outside), 14.8 mm (image), 2 mm (max. thickness)
- Gobo Size: Gobo Wheel 2 (static): size: 24 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Focus: Motorized
- Frost: Motorized
- Iris: Motorized
- Prism: 5 Facets, motorized, rotating
- Strobe Rate: 0 to 20 Hz
- Move in Black: Yes
CONSTRUCTION / PHYSICAL
- Dimensions: 14.41 x 9.61 x 25.16 in (366 x 244 x 639 mm)
- Weight: 51 lb (23.2 kg)
- Exterior Color: Black
- Housing Material: High-impact flame-retardant polymer
CONNECTIONS
- Power Connection: Edison (local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: DMX, RDM
- DMX Channels: 20 or 25
- Modes/Personalities: 2 personalities (20, 25)
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V
- Power and Current: 506 W, 4.24 A @ 120 V, 60 Hz
- Power and Current: 493 W, 2.43 A @ 208 V, 60 Hz
- Power and Current: 494 W, 2.19 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE, MET, UKCA
- IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
- Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
- Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
- Maximum Ambient Temperature (ta): 45° C / 113° F
WHAT'S INCLUDED
- Rogue Outcast 3 Spot
- Seetronic Powerkon IP65 power cord
- (2) Omega brackets with mounting hardware
OPTIONAL ACCESSORIES
- Clamps
- IP65 5 pin DMX Cables
- IP65 PowerKon Extension cables
- Flight Case
The GLP impression X5 IP Maxx delivers an extraordinary luminous flux of up to 21,000 lumens, with an expanded colour space, from 37 powerful 40-watt RGBL LEDs.
Equipped with the new iQ.Gamut colour algorithm, the impression X5 IP Maxx generates a clean white point with a CRI 86 / TLCI 88+ at 6,500 Kelvin. It also offers the option of quickly switching to other fixed colour temperatures, all of which are precisely calibrated to the colour temperature curve, while still offering a colour quality of CRI 84+ / TLCI 74 even with warm white light of 3,200 Kelvin.
With the new 19:1 zoom mechanism, the impression X5 IP Maxx delivers up to 3.56 Mcd light intensity, a penetrating 3.3° parallel beam and up to 66° homogeneous wash light. The new, circular lens design offers a modern look, while additional fantastic looks can be generated using individual pixel control with pixel mapping and integrated dynamic pattern effects.
The impression X5 IP Maxx comes with an extensive feature and effects package, including a virtual colour wheel with access to 64 colours from the LEE filter palette, new colour quality control, magenta/green correction, a tungsten simulation and effects channel and a 2-layer effect option.
Thanks to the IP65 certification, the fixture can be used both indoors and outdoors in any weather. The compact design, with a weight of < 30 kg, is designed for easily installation in standard pre-rig truss systems.
The impression X5 IP Maxx can be controlled via DMX, ArtNet, sACN and LumenRadio CRMX. It also has NFC and the iQ.Mesh module for convenient configuration via the GLP iQ.Service app.
