924.41 924.41 NZD 924.41 GST Excluded

924.41 GST Excluded

Software Download

    This combination does not exist.

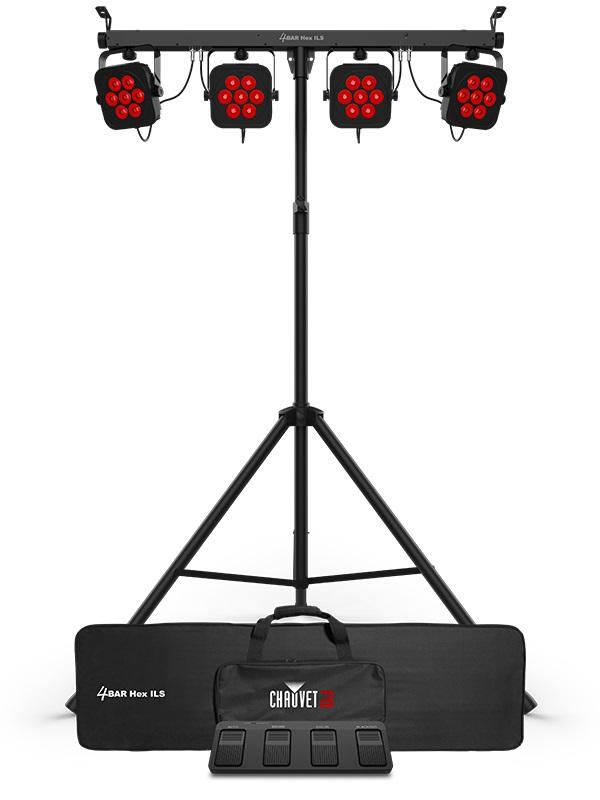

    4BAR Hex ILS is a complete wash lighting solution fitted with high-intensity hex-color (RGBAW+UV) LEDs that can be controlled wirelessly right out of the box using the included footswitch or optional IRC-6 remote. ILS compatibility offers ultimate control flexibility and makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology. A tripod and carry bag are included for effortless setup and quick tear down.

    • Complete wash lighting solution fitted with high-intensity, hex-color (RGBAW+UV) LEDs

    • ILS compatibility for use in the ILS ecosystem

    • D-Fi USB compatibility for wireless Master/Slave or DMX control

    • Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology

    • Update the unit’s software from the built-in USB port

    • Out of the box wireless control with included footswitch or optional IRC-6 controller

    • Easily set up and tear down in minutes with the included tripod stand and carrying bags

    • Achieve total room or stage coverage with 4 individually adjustable heads

    • Increase mounting options by safely mounting to truss using built-in bolts

    • DMX Channels:6, 8, or 27
    • DMX Connectors:3-pin XLR
    • Max Unobstructed Distance:(foot switch): 100 ft (30.5 m)
    • Light Source:42 LEDs (hex color RGBAW+UV) 5.1 W, (2 A), 50,000 hours life expectancy
    • Strobe Rate:0 to 20 Hz
    • Beam Angle:16°
    • Field Angle:25°
    • Illuminance:1570 lux @ 2 m (per pod)
    • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power and Current:
      97 W, 1.3 A @ 120 V, 60 Hz
      94 W, 0.7 A @ 230 V, 50 Hz
    • Weight:12.2 lb (5.5 kg)
    • Size:45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
    • Approvals:CE, RoHS, UKCA
    • Footswitch battery: 9 V
    • Operating Frequency (D-Fi): 2.412 to 2.484 GHz
    • Operating Frequency (foot switch): 433 MHz
    • Stand Height: 7 ft 4 in (2.2 m)
    • Fits Tripod Sizes: 1.5 in (36.80 mm)
    • Bracket Mounting Hole: M10 (1.5 mm pitch)
    • Weight (Controller): 1.2 lb (0.6 kg)
    • Size (Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
    • Optional Controllers: IRC-6, ILS Command


    • 4BAR Hex ILS
    • Power cord
    • Carrying bag
    • Tripod
    • Tripod Carry bag
    • Wireless Footswitch
    • Quick Reference Guide
