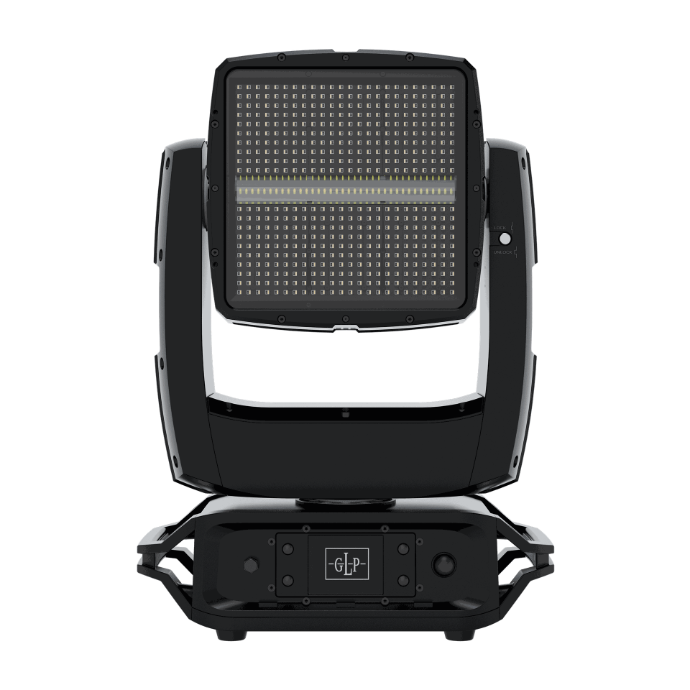

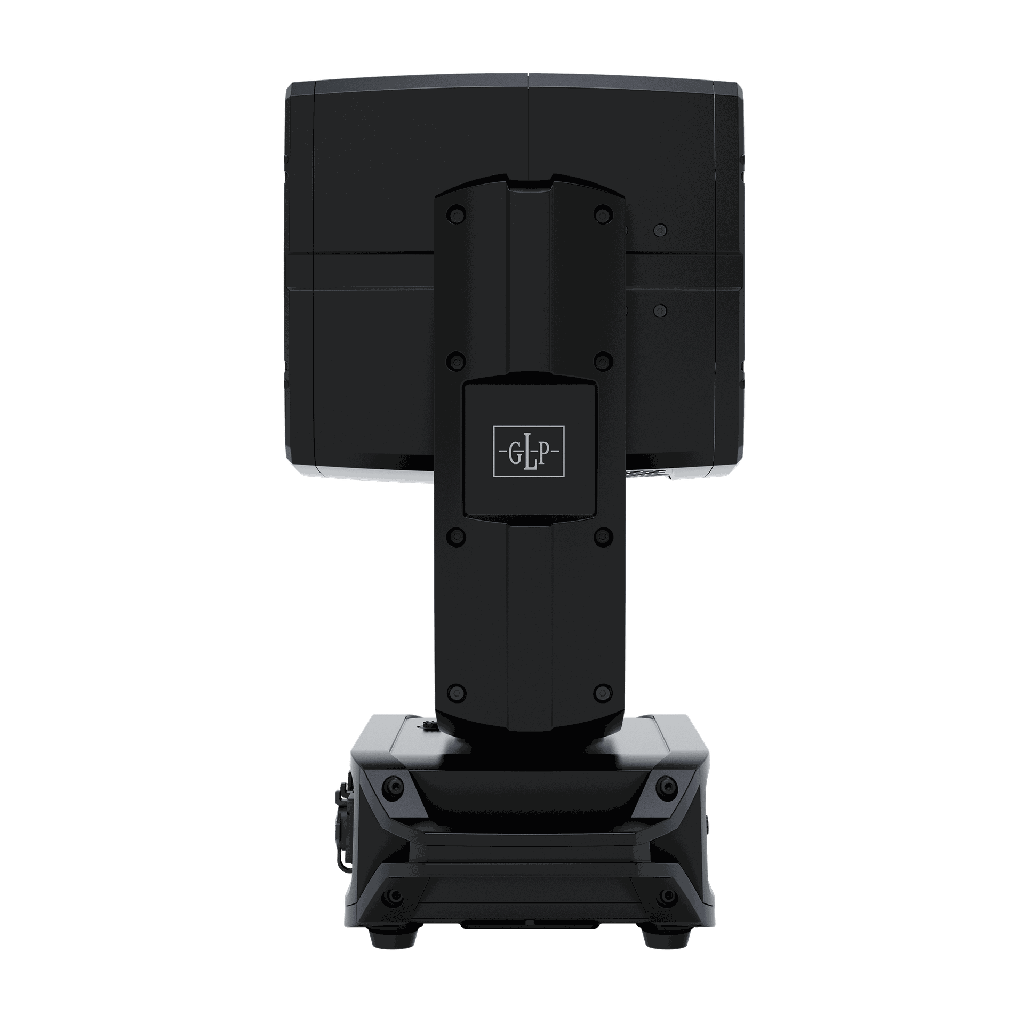

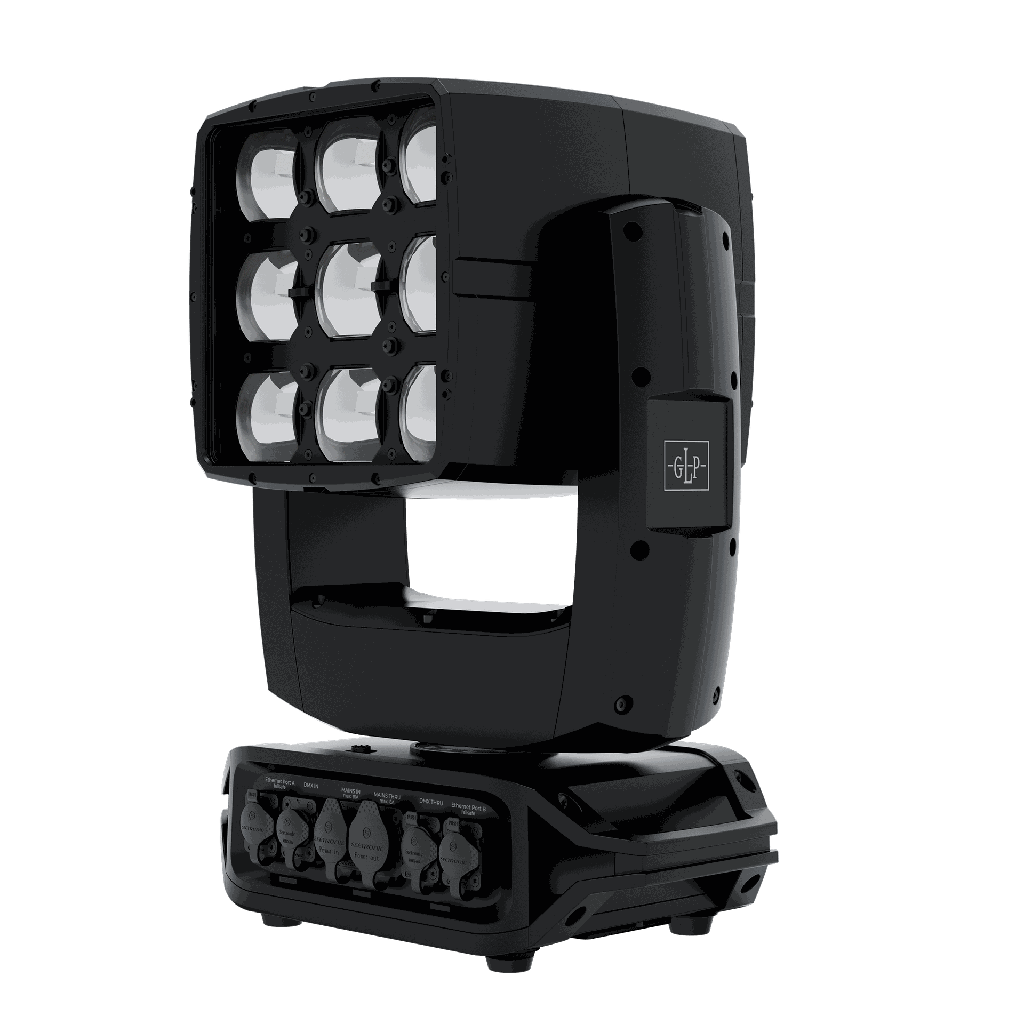

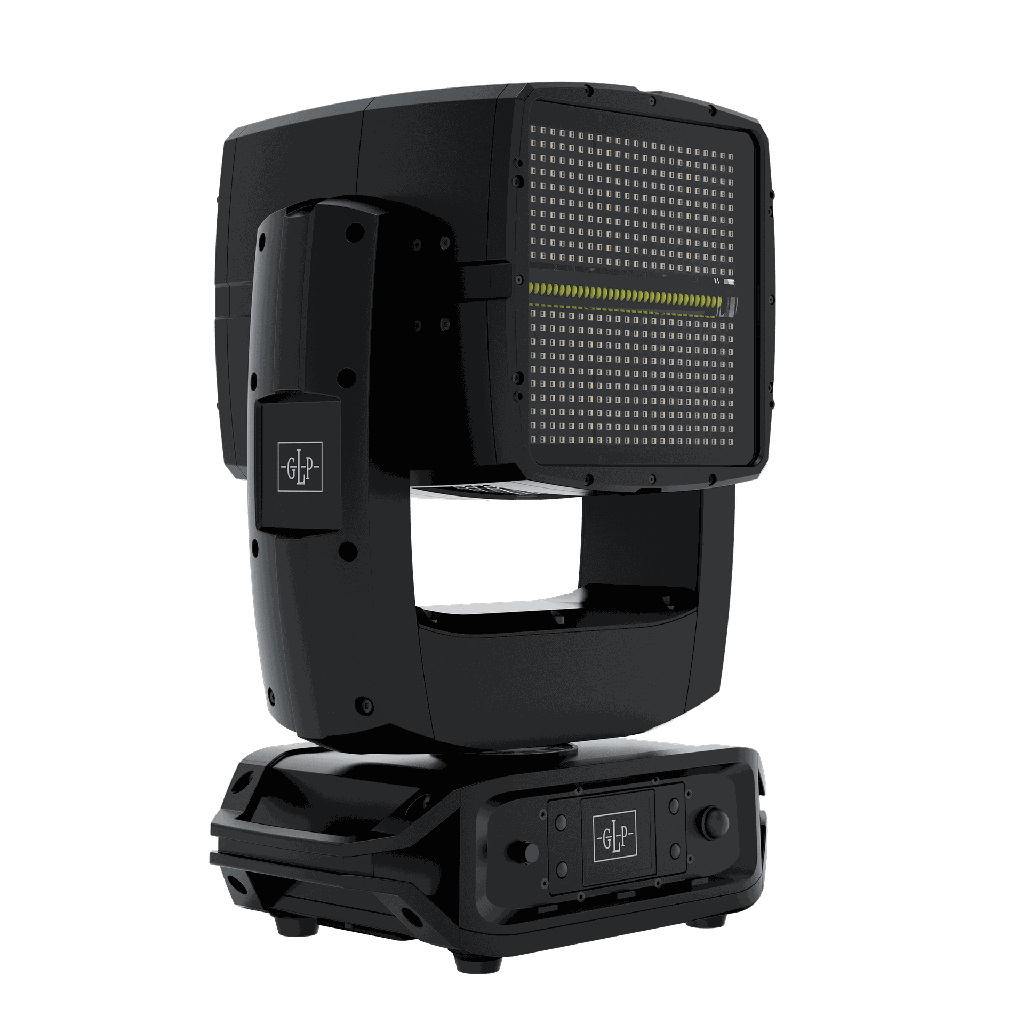

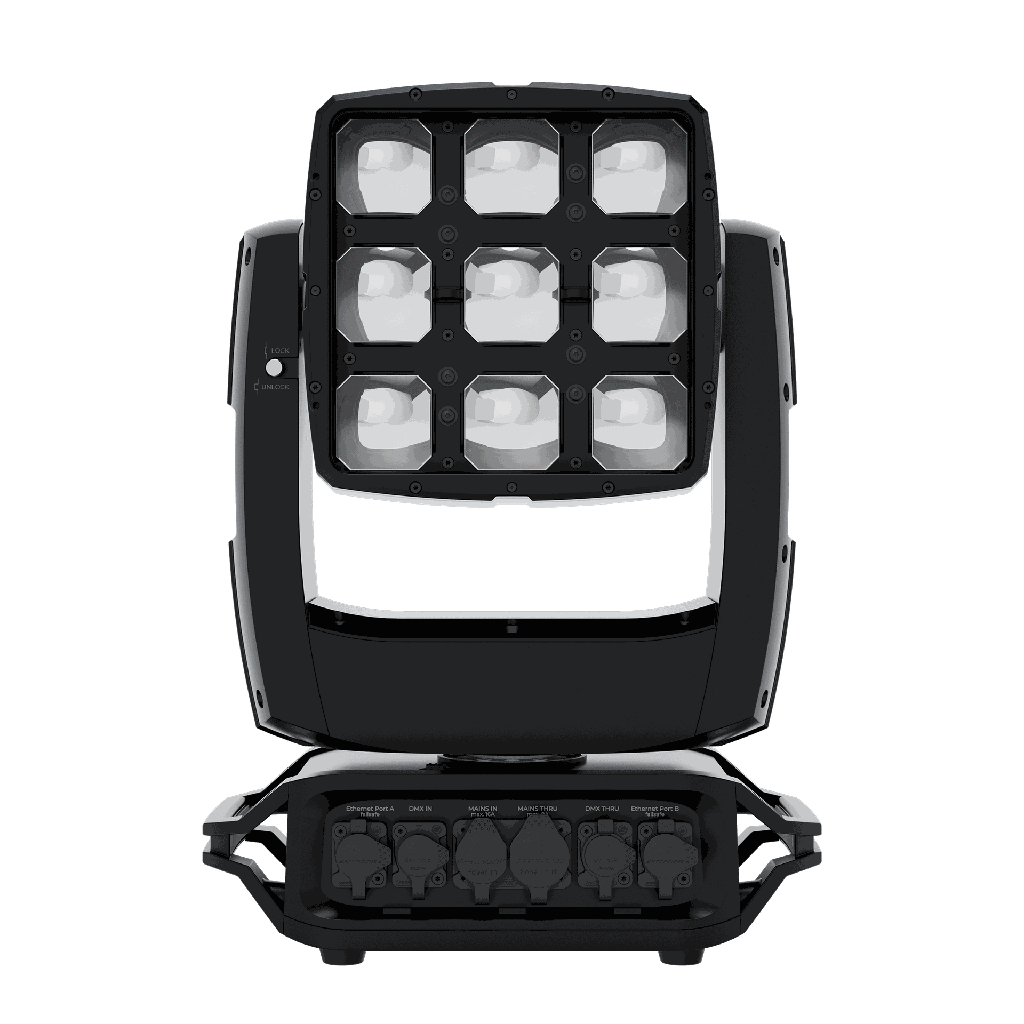

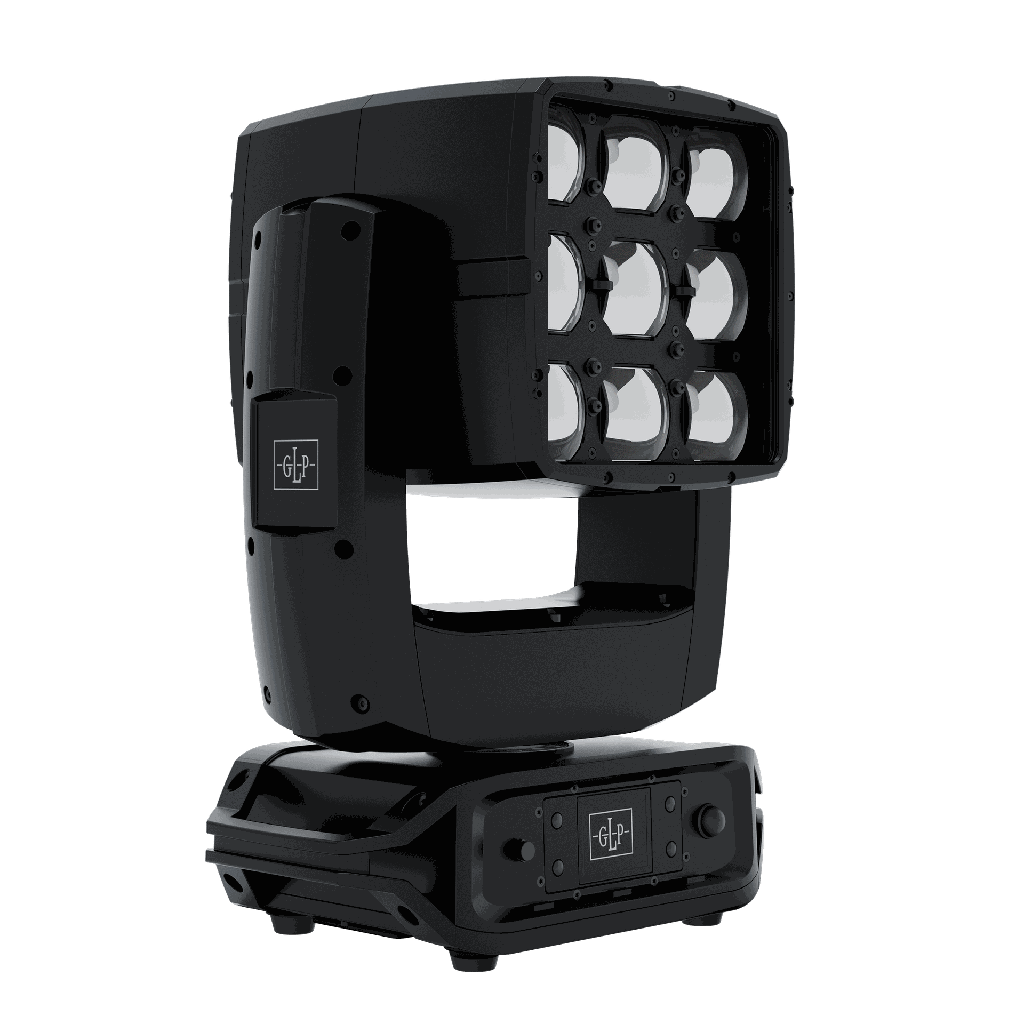

GLP TWYN
This innovative dual-face moving head combines two powerful lighting systems in one compact fixture, with a perfect fixture match to GLP Creos and GLP JDC Burst 1. One side features a 3×3 RGBL wash array with a 4° to 53° zoom – similar to GLP Creos –, delivering up to 4060 lumens and outstanding color quality (CRI >85). The reverse side transforms into a hybrid strobe inspired by the JDC Burst 1, with 36 white LEDs for explosive strobe effects and up to 22,800 lm output and 480 RGBW LEDs for vivid color accents and more than 12,400 lm output. With continuous pan and tilt rotation, iQ.Mesh integration, and a lightweight 16 kg design, this fixture offers exceptional flexibility and performance. Perfect for club tours, small venues, and mobile productions, it delivers maximum creativity with minimal setup. Supplied with the GLP DRX Dual Sleeve for safe transport and easy installation. The low investment price allows a quick ROI and to equip your stage with higher fixture quantity.
Light Source
- Type: RGBAL
- Count: 3×3 lenses per pixel, 9 lenses total
- Power: each pixel; 40 W, total 360W
Optical System
- Total Output: up to 4,060 lm
- Peak Luminous intensity: 575 kcd
- Min Zoom: 4°
- Max Zoom: 53°
- Front Lense: Zoom Lens System
- Light Aperture: 180 x 180 mm/ 7.08 x 7.08 in
Light Source Plate
- Color Mixing: RGBW
- Count: 480 LEDs total in 24 segments
- Power: each pixel 0.6 W | total:280 W
Optical System Color Plate
- Total Output: Up to 12,400 lm
- Peak Luminous Intensity: 4.68 kcd
- Light Distribution Angles: beam angle: 110° | field angle: 150°
- Light Aperture: 180 x 180 mm | 7.08 x 7.08 in
Light Source Strobe Line
- Type: White Light LED
- Count: 36
- Power: each pixel: 17 W total | 600 W
Optical System Strobe Line
- Total Output: up to 22,800 lm
- Peak Luminous Intensity: 25.7 kcd
- Light Distribution Angles: beam angle: 80° x 54° |field angle: 150° x 63°
- Light Aperture: 180 x 22 mm / 7.08 x 0.86 in
Dynamic Effects
- Dimmer: 0-100%, 16 bit
- Shutter effects: Pan | Tilt | Zoom | Dual layer with dynamic pattern effects
Control & Programming
- DMX Channels: tbd
- Control Modes: tbd
- Protocols: DMX (USITT DMX512-A) | RDM (ANSI/ESTA E1.20) | Art-Net | sACN | GLP iQ.Mesh
- High-Res Channels: Dimmer | Tilt | Colormix
- Dimming Curves: linear | soft | S-curve
- Fan Modes: regulated | high | medium | low
- Setting and Addressing: backlit graphic LCD | 4 Button Menu Navigation | RDM | GLP iQ.Mesh
- Software Update: DMX Link via Dprog | GLP iQ.Mesh | GLP iQ Tool
Connections
- Power Connection: Neutrik powerCON TRUE1 In/Out
- Signal Connection: Neutrik XLR 5-Pin In/Out | 2x-ethercon-inout-failsafe
Construction
- Housing Color: Black
- Housing Material: high-impact flame – retardant thermoplastic | aluminum | steel metal plates | glass
- Protection Rating: IP65
- Construction Features: Tilt-Lock-System | Base Handles | Accessory Screw Threads
Electrical Specifications
- Power Input: 100 – 240 VAC / 50 – 60 Hz
- Power Supply Unit: auto-ranging electronic switch mode
- max. Power (@230 V): 800 W
Installation
- Mounting: 2 pairs of 1/4-turn locks | 1 eyelet for safety cable
- Orientation: any
- Location: Indoor temporary | Outdoor temporary
- min Distance to Illuminated Surfaces: 1.0 m
Movement
- Pan: 360° continuous, 16 bits
- Tilt: 360° continuous, 16 bits
Shipping
- Single Fixture: carton, with GLP DRX Foam Roadcase insert (2 UP)
- Tourpack: 6-way
Thermal Specifications
- Cooling: combined convection and forced air
- Overheating Protection: automatic
- min. Ambient Temperature: -10 °C / 14 °F
- max. Ambient Temperatur: 45 °C / 115 °F
- Total Heat Dissipation: 2,800 BTU/h
Dimensions & Weight
- Height (leg): 11.3 mm / 0.5 in
- Height (head straight up): 479 mm / 19 in
- Height (head vertical): 468 mm / 18 in
- Width (across yoke): 331 mm / 13 in
- Depth (head straight up): 219 mm / 9 in
- min. Center Distance: 335 mm / 13 in
- Weight (netto): 16 kg / 35 lbs
