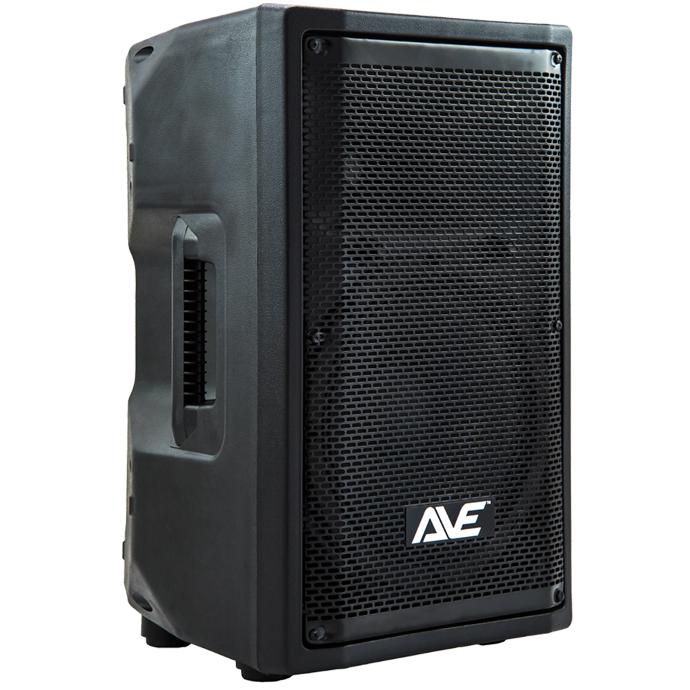

AVE REVO12-DSP 1100W Powered Speaker

https://www.mdrlighting.co.nz/web/image/product.template/2854/image_1920?unique=d5e5543

AVE-REVO12-DSP

520.87 520.87 NZD 520.87 GST Excluded

520.87 GST Excluded

Software Download

    This combination does not exist.


    REVO 12 DSP is a 12″ powered speaker that is part of a new and innovative portable loudspeaker series designed in Australia by AVE. Each REVO12-DSP is tuned and rigorously tested for 2 days by AVE engineers, ensuring reliability and performance out of each and every speaker. The powerful 1100W amplifier uses both Class-D and Class-A/B technology, for maximum performance and efficiency. And have been fitted with carefully selected high-frequency and low-frequency drivers for uncompromising performance. Providing pristine sound quality at an extremely affordable price point.


    SPECIFICATIONS
    Product number:REVO12DSP
    Product type:PA loudspeaker
    Type:Powered 2-Way
    Low/mid driver dimensions:12″ (304.8mm)
    HF driver dimensions:1.75” (44.5mm)
    Amplifier:Class A/B & Class D
    Dispersion (H x V):90° x 60°
    RMS:350W
    Peak power:1100W
    Frequency response:50 Hz – 20 kHz
    Max. SPL (peak):121dB
    DSP Control:8 Selectable Programs (4 User editable)
    Max Input Level:20 dBu
    Signal to Noise:90 dB (A-Weighted)
    Total Harmonic Distortion (THD):<0.5% (1kHz -9dB)
    Controls:1 x mic gain, 1x main level, DSP selector mode, power
    Indicators:Power, limit
    Inputs:1x XLR (line), 1x ¼” TS Jack (mic)
    Outputs:1x XLR
    Other Connections:1x USB-B port (DSP Connection)
    Operating voltage:110 – 240 V / 50 – 60 Hz, Switching Power Supply
    Power Connection:Powercon
    Cabinet material:ABS Plastic
    Dimensions:620 x 380 x 350 mm
    Weight:15.3kg
