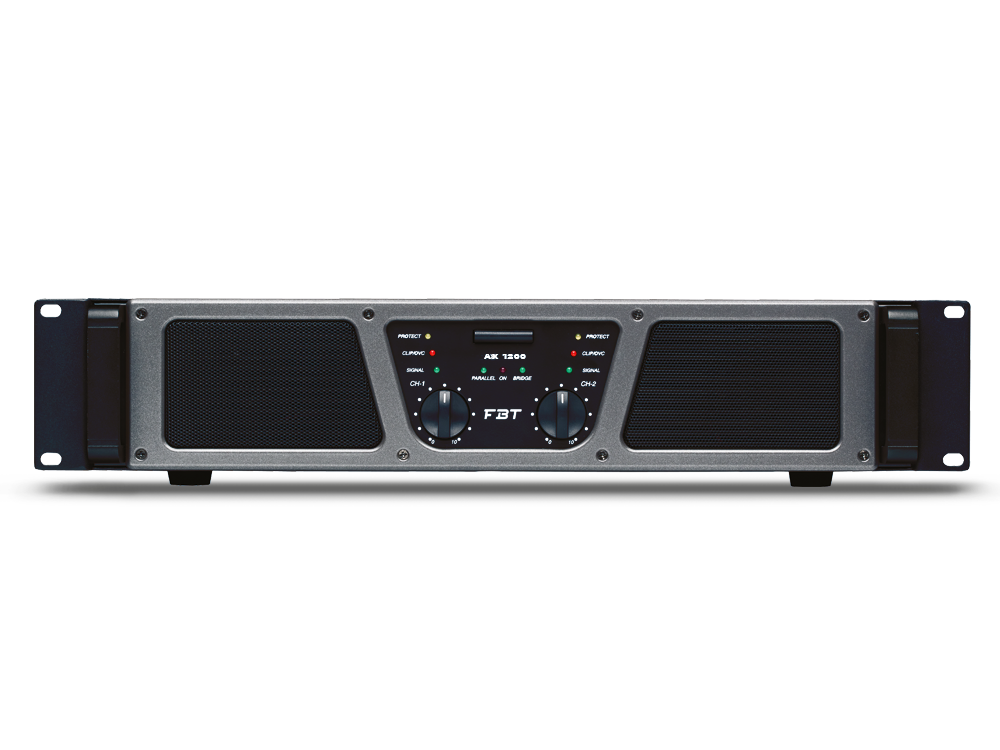

The FBT AX 1200 delivers 600W + 600W at 4 Ω or 1200W bridged at 8 Ω. Built with the same rugged components as its larger siblings, it is an ideal mid-range amplifier for fixed sound systems, rental rigs, and any application where reliable, clean power is essential.
- 1200W bridge output (8 Ω) — ample power for medium-scale systems
- Class H topology — efficient amplification with low heat output
- Damping factor > 400 — precise speaker control
- SNR > 100 dB — ultra-low noise floor for clean, professional results
- THD < 0.03% — transparent audio reproduction

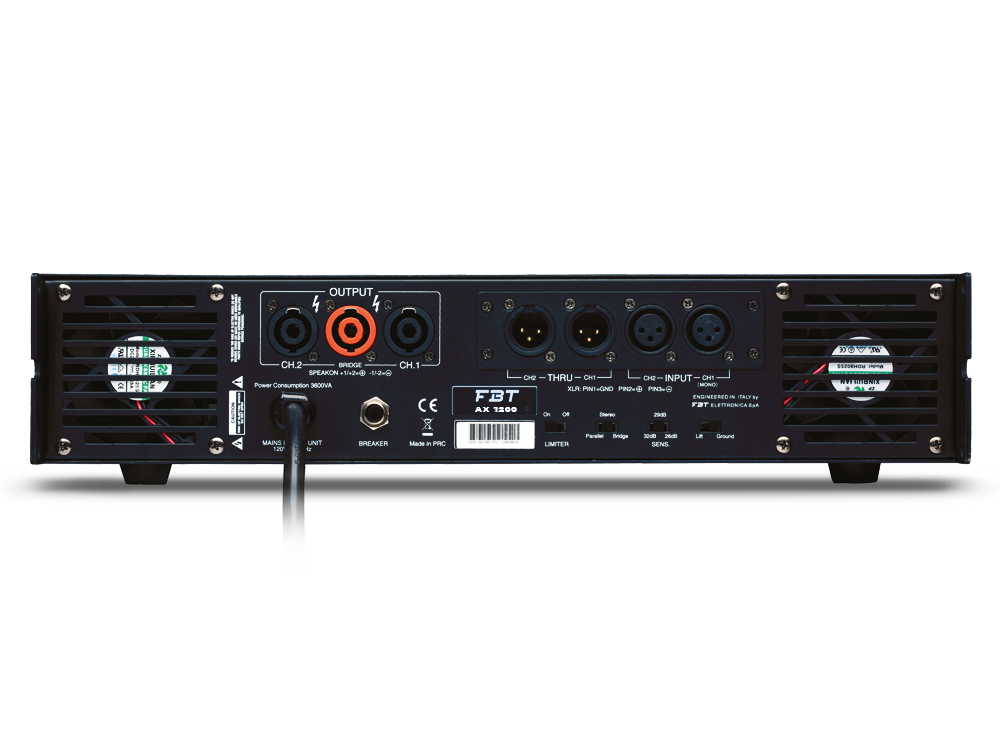

- XLR / Jack inputs, Speakon / Binding post outputs — flexible connectivity
- Forced-air cooling system — reliable thermal management under sustained load
- Oversized power supply — reserves for dynamic peaks without clipping
- 2U 19" rackmount chassis — standard rack integration
| Both Channels, 8 Ω (cont / imp) | 340 / 350W |
|---|---|
| Both Channels, 4 Ω (cont / imp) | 460 / 600W |
| Bridge, 8 Ω (1% THD, cont / imp) | 920 / 1200W |
| Amplifier Class | H (2-step) |
| Frequency Response | 20 Hz – 40 kHz (–6 dB) |
| Signal to Noise Ratio | > 100 dB |
| THD (1 kHz, 4 Ω) | < 0.03% |
| Damping Factor | > 400 |
| Input Impedance | 20 kΩ balanced |
| Input Connectors | XLR / Jack |
| Output Connectors | Speakon / Binding post |
| Protections | Short circuit, thermal |
| Operation Modes | Stereo / Parallel / Bridge |
| Maximum Power Consumption | 1300 VA |
| Power Supply Voltage | 220–230 V AC, 50/60 Hz |
| Net Dimensions (W × H × D) | 482 × 88 × 367 mm (2U 19") |
