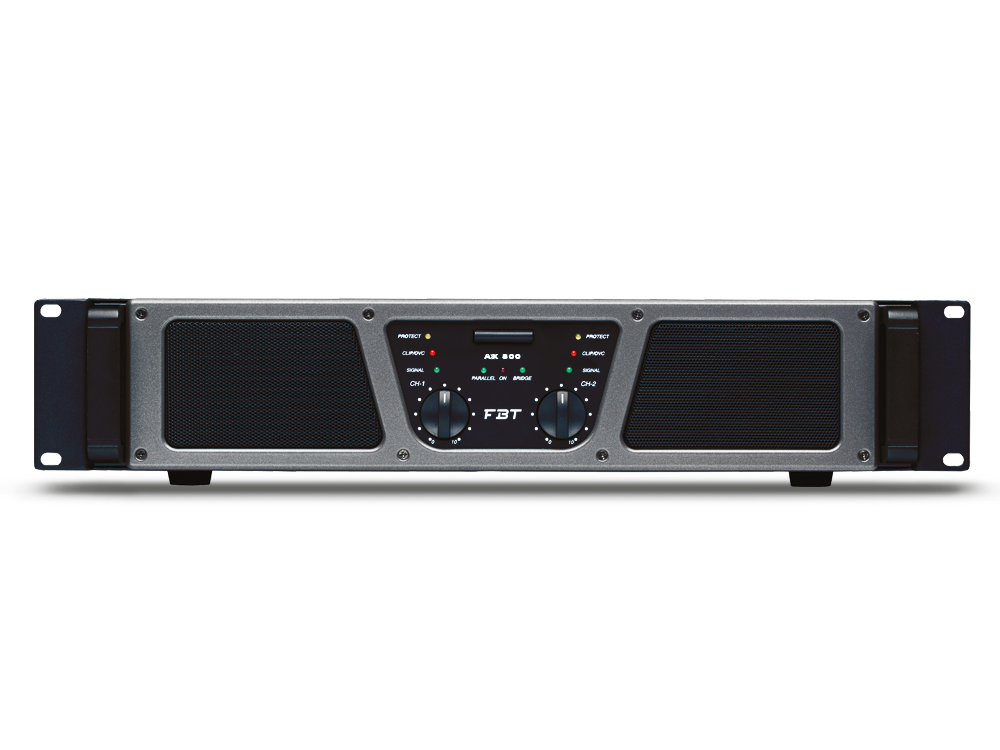

The FBT AX 800 is the entry point to the AX amplifier family — 400W + 400W at 4 Ω or 800W bridged at 8 Ω in a compact 2U chassis. It is the ideal amplifier for small sound reinforcement systems, conference rooms, and distributed audio installations where space and reliability are equally important.
- 800W bridge output (8 Ω) — reliable power for smaller speaker systems
- Class AB topology — low distortion and warm, natural dynamics
- Robust linear power supply with toroidal transformer — clean, stable power delivery
- Damping factor > 400 — precise woofer control
- SNR > 100 dB — silent background for speech and music clarity
- THD < 0.03% — minimal colouration at all operating levels
- XLR / Jack inputs, Speakon / Binding post outputs — professional, flexible connections
- Clip limiter, thermal and short circuit protection — safeguards speakers and the amplifier
- 2U 19" rackmount chassis — neat rack integration
| Both Channels, 8 Ω (cont / imp) | 230 / 250W |
|---|---|
| Both Channels, 4 Ω (cont / imp) | 350 / 400W |
| Bridge, 8 Ω (1% THD, cont / imp) | 700 / 800W |
| Amplifier Class | AB |
| Frequency Response | 20 Hz – 40 kHz (–6 dB) |
| Signal to Noise Ratio | > 100 dB |
| THD (1 kHz, 4 Ω) | < 0.03% |
| Damping Factor | > 400 |
| Input Impedance | 20 kΩ balanced |
| Input Connectors | XLR / Jack |
| Output Connectors | Speakon / Binding post |
| Protections | Short circuit, thermal, clip limiter |
| Operation Modes | Stereo / Parallel / Bridge |
| Maximum Power Consumption | 1000 VA |
| Power Supply Voltage | 220–230 V AC, 50/60 Hz |
| Net Dimensions (W × H × D) | 482 × 88 × 290 mm (2U 19") |
