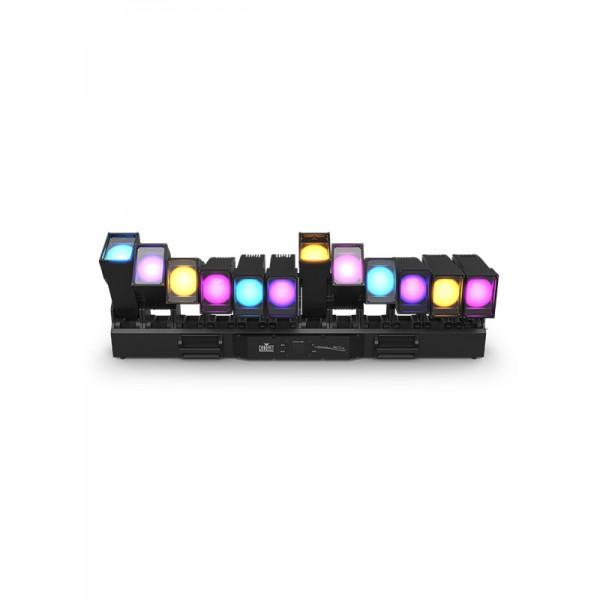

CHAUVET COLORado PXL CURVE 12 - Individual 12 zoom/tilt pods

Great stories have a personality. Consider telling a great story that provides personality. Writing a story with personality for potential clients will assist with making a relationship connection. This shows up in small quirks like word choices or phrases. Write from your point of view, not from someone else's experience.

Great stories are for everyone even when only written for just one person. If you try to write with a wide, general audience in mind, your story will sound fake and lack emotion. No one will be interested. Write for one person. If it’s genuine for the one, it’s genuine for the rest.

COLORado PXL Curve 12 is a fully pixel-mappable motorized IP65-rated RGBW LED batten with individual control of zoom, tilt and color across twelve independent heads. Basic and advanced operating modes and an extensive library of pre-built effects that includes virtual gobos, movement macros, and foreground/background color control make creating complex and volumetric looks easy. Seamless edge-to-edge mounting maintains pixel pitch between fixtures helping to make runway effects consistent. COLORado PXL Curve 12 speaks DMX, sACN, Art-Net, Kling-Net and RDM.

FEATURES

• IP65 batten with (12) 45W RGBW LEDs. (12) individually controllable tilting heads with a 5.7° to 36.3°zoom range. Maintains pixel pitch between fixtures.

• Quiet and quick operation of 200° of tilt of each if (12) heads

• Quiet and quick operation of (12) individual zoom zones

• Fully pixel mappable

• Several built-in effects including virtual gobos and movement macros with foreground and background color control for easy pixel animation effects

• DMX, SACN, Art-Net, and Kling-Net control for full flexibility

• RDM Enabled for remote addressing and trouble shooting

• 5.7° to 36.3° zoom range for variable beam sizes

• TRUE1 compatible power input/output ports

• IP65-rated 5 pin DMX and TCP/IP input/output ports

• IP65-rated USBc software upload port

• Slotted Omega brackets for easy hanging on truss

SPECIFICATIONS

OPTICAL

• Light Source: 12LEDs (RGBW) 45 W, (2.96 A) 50,000 hours life expectancy
• Color Temperature (range): 2700 to 8000 K
• Beam Angle Spot: 5.7°
• Beam Angle Flood: 26.8°
• Beam Angle 50% Zoom: 13.8°
• Field Angle Spot: 9°
• Field Angle Flood: 33.9°
• Field Angle 50% Zoom: 19.2°
• Cutoff Angle Spot: 9.9°
• Cutoff Angle Flood: 36.3°
• Cutoff Angle 50% Zoom: 21.6°
• Zoom Range: 5.7° to 36.3°
• Lumens: 5,807 lm
• Illuminance (Spot) : 38,727 lux @ 5 m
• Illuminance (Flood) : 1,120 lux @ 5 m
• Selectable PWM: 600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

DYNAMIC EFFECTS

• Tilt: 200°
• Tilt Range: 60°, 180°, 200°
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20Hz
• Standalone Color Mixing: No
• Color Temperature Presets: Yes
• Dim Modes: 5
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 39.49 x 6.65 x 12.76 in (1,003 x 169 x 324 mm)
• Weight: 76 lb (34.5 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast, High-Impact flame-retardant polymer, Steel

CONNECTIONS

• Power Connection: Edison (Local) plug to Seetronic Powercon IP65
• Power Input: Seetronic Powercon IP65
• Power Output: Seetronic Powercon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: Art-Net, sACN, DMX, RDM, Klingnet
• DMX Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• Art-Net Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• sACN Channels: 20ch, 53ch, 101ch, 155ch, 179ch
• Modes/Personalities: 5 personalities( 20ch, 53ch, 101ch, 155ch, 179ch)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 1 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V
• Power and Current: 790 W, 6.70 A @ 120 V, 60 Hz
• Power and Current: 772 W, 3.80 A @ 208 V, 60 Hz
• Power and Current: 768 W, 3.44 A @ 230 V, 50 Hz
• Fuse: F12 A, 250 V

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, UKCA, FCC
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

WHAT'S INCLUDED

• COLORADO PXL Curve 12
• (2) Omega brackets
• Seetronic Powercon IP65 power cord

OPTIONAL ACCESSORIES

• Professional Clamps
• Neutrik TRUE1 power linking cables
• 5-pin DMX Cables
• Ethercon Cables
