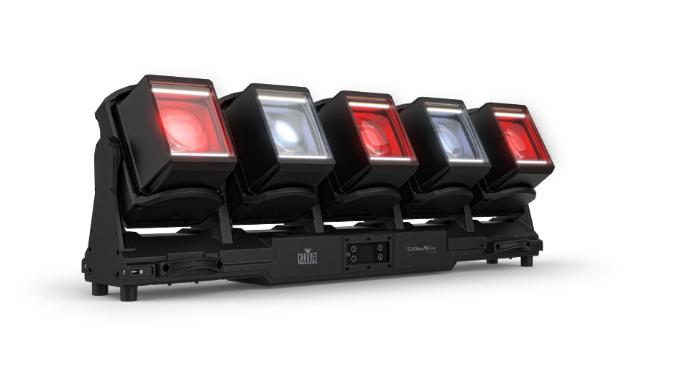

An IP65-rated RGBW arrayable batten featuring five independent motorized heads with zoom, pan, and tilt, plus dual linear cool and warm white strobes per head for dynamic effects.
Optimized for seamless side-by-side mounting, alignment pins keep spacing consistent across linked fixtures for cohesive looks on touring stages, theatrical productions, and temporary outdoor events.
FEATURES
Fully featured IP65 rated Bar style fixture with (5) heads, each consisting of single (120W) RGBW LEDs, and two linear four cell CW and WW Strobe LEDs
Wash and beam fixtures with pan and tilt functionality and the ability to maintain pixel pitch when using multiple fixtures together
Quick and quiet operation of 200° of tilt and 60° of pan per head
8 section control of Warm White and Cool White strobe cells per head
DMX, SACN, and Art-Net control for full flexibility
RDM and NFC Enabled for remote addressing and trouble shooting
IP65-rated 5-pin DMX and TCP/IP input and output ports
NFC functionality (COMING SOON)
Software update over Bluetooth (COMING SOON)
Slotted Omega bracket for easy hanging on trusSS
- Light Source
- 5 LEDs (RGBW) 120 W, (4.5A) 50,000 hours life expectancy
- Color Temperature (range)
- 3200 to 7500 K
- Zoom Range - 8.3° to 155.1°
- Lumens
- 42,172 lm
- Illuminance
- Selectable PWM
- 600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz
Dynamic Effects
- Pant and Tilt
- 60°/200°
- Dimmer
- Electronic
- Shutter/Strobe
- Electronic
- Strobe Rate
- 0 to 25Hz
- Standalone Color Mixing
- No
- Color Temperature Presets
- Yes
- Dim Modes
- 2
- Built-in Automated Programs
- Yes
Construction/Physical
- Dimensions
- 39.33 x 8.86 x 13.50 in (999 x 225 x 343 mm)
- Weight
- 71.4 lb (32.4 kg)
- Exterior Color
- Black
- Housing Material
- Aluminum diecast, High-Impact flame-retardant polymer, Steel
Connections
- Power Connection
- Edison (Local) plug to Seetronic Powercon IP65
- Power Input
- Seetronic Powercon IP65
- Power Output
- Seetronic Powercon IP65
- Data Connectors
- 5-pin IP65 XLR, Seetronic etherCON IP65
- Cable Length (power)
- 5 ft (1.5 m)
Control
- Control Protocol
- Art-Net, sACN, DMX, RDM
- DMX Channels
- 120 ch, 155 ch, 195 ch,355 ch
- Art-Net Channels
- 120 ch, 155 ch, 195 ch,355 ch
- sACN Channels
- 120 ch, 155 ch, 195 ch,355 ch
- Modes/Personalities
- 4 personalities: 120 ch, 155 ch, 195 ch,355 ch
Electrical
- Input Voltage
- 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking
- ; 1 units @ 120 V; 2 units @ 208 V; 2 units @ 230 V,
- Power and Current
- 1136 W, 9.49 A @ 120 V, 60 Hz
- Power and Current
- 1105 W, 5.44 A @ 208 V, 60 Hz
- Power and Current
- 1113 W, 4.87 A @ 230 V, 50 Hz
Certifications/Qualifications
- CE, MET, UKCA, FCC
- IP Rating
- IP65, temporary outdoor/wet use
- Temperature (Ambient)
- 14 °F to 113 °F (-10 °C to 45 °C)
Compatible Accessories
- CTC-50HC – Clamp
- CTC-50HCN – Narrow Clamp
- CTC-SLC – Lightweight Clamp
- CTC-50G – Trigger Clamp
- SC08 – Safety Cable
- RIGLINKTR1 – Powerkon IP65
- RIGLINK powerKON cables
- RIGLINK etherKON cables
- RIGLINKDMX – DMX 5 Pin
- RIGLINKCOMBO – IP65 Power and DMX
- POWERSTREAM4IP – Power distribution
- CPRACK
What's Included
- COLORADO PXL Curve 5
- Seetronic Powercon IP65 power cord
- (2) Omega Brackets
