CHAUVET COLORdash PAR H18XM

https://www.mdrlighting.co.nz/web/image/product.template/60686/image_1920?unique=bae74b3

COLORDASHPARH18XM

$ 1,790.00 1790.0 NZD $ 1,790.00 GST Excluded

$ 1,790.00 GST Excluded

Software Download

    This combination does not exist.

    Contact Us

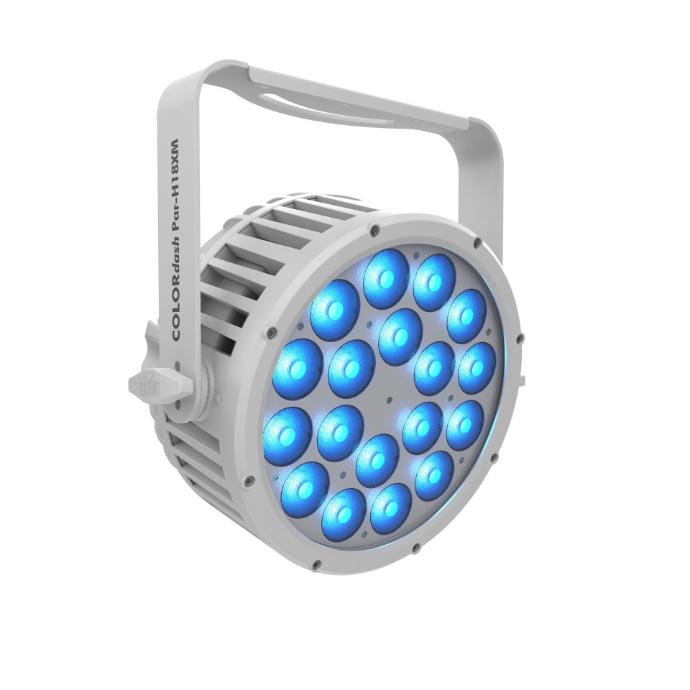

    CHAUVET COLORdash PAR H18XM Led Par IP65

    The Colordash Par H18X M is a rugged RGBWA-UV LED wash with a C5-X marine grade coating, designed for events in demanding conditions. It’s at home in any weather with IP-rated connections, offers adjustable PWM to avoid camera flicker, and features RDM for added flexibility.

    FEATURES

    • Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed

    • At home in any weather conditions with IP-rated power and DMX connections

    • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

    • RDM (Remote Device Management) for added flexibility

    • Selectable, smooth dimming curves for eliminating flicker and choppiness in fades

    • Easy-to-read OLED display with password protection and touchscreen interface

    • Advanced optics provide exceptional color mixing and high efficiency

    • Double-bracketed yoke with omega bracket doubles as floor stand


    OPTICAL

    • Light Source: 18 LEDs (HEX-color RGBAWUV)
    • Color Temperature (range): 2,800 to 10,000 K
    • Color Temperature (at full): 8,439 K
    • Beam Angle: 25.4°
    • Field Angle: 39°
    • Lumens: 5,567 lm
    • Illuminance (total): 1,106 lux @ 5 m
    • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

    DYNAMIC EFFECTS

    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Strobe Rate: 0 to 20 Hz
    • Standalone Color Mixing: Yes
    • Color Temperature Presets: Yes
    • Dim Modes: 4
    • Built-in Automated Programs: Yes

    CONSTRUCTION / PHYSICAL

    • Dimensions: 13.58 x 12.89 x 6.23 in (344.8 x 327.4 x 158.2 mm)
    • Weight: 14.4 lb (6.6 kg)
    • Exterior Color: White, C5-M Coated
    • Housing Material: Aluminum diecast
    • Accessory Holder/Gel Frame Size: 9.5 in (241.3 mm)

    CONNECTIONS

    • Power Connection: Edison (local) plug to Seetronic Powerkon IP65
    • Power Input: Seetronic Powerkon IP65
    • Power Output: Seetronic Powerkon IP65
    • Data Connectors: 3- and 5-pin XLR
    • Cable Length (power): 5 ft (1.5 m)
    • Software Update: USB-C

    CONTROL

    • Control Protocol: DMX, RDM
    • DMX Channels: 6, 8, 9, 13 or 14
    • Modes/Personalities: 5 personalities (6ch, 8ch, 9ch, 13ch, 14ch)

    ELECTRICAL

    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power Linking: 9 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V
    • Power and Current: 154 W, 1.25 A @ 120 V, 60 Hz
    • Power and Current: 148 W, 0.72 A @ 208 V, 60 Hz
    • Power and Current: 150 W, 0.66 A @ 230 V, 50 Hz

    CERTIFICATIONS / QUALIFICATIONS

    • CE, MET, FCC, UKCA
    • IP Rating: IP65, temporary outdoor/wet use
    • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

    WHAT'S INCLUDED

    • COLORdash PAR H18X IP
    • Seetronic Powerkon IP65 power cord
    • Gel frame
    • Omega bracket
    • Quick Reference Guide or User Manual

    OPTIONAL ACCESSORIES

    • Professional Clamps: CTC-50HC, CTC-50HCN
    • Riglink TR1 Cables
    • Riglink IP DMX cables
