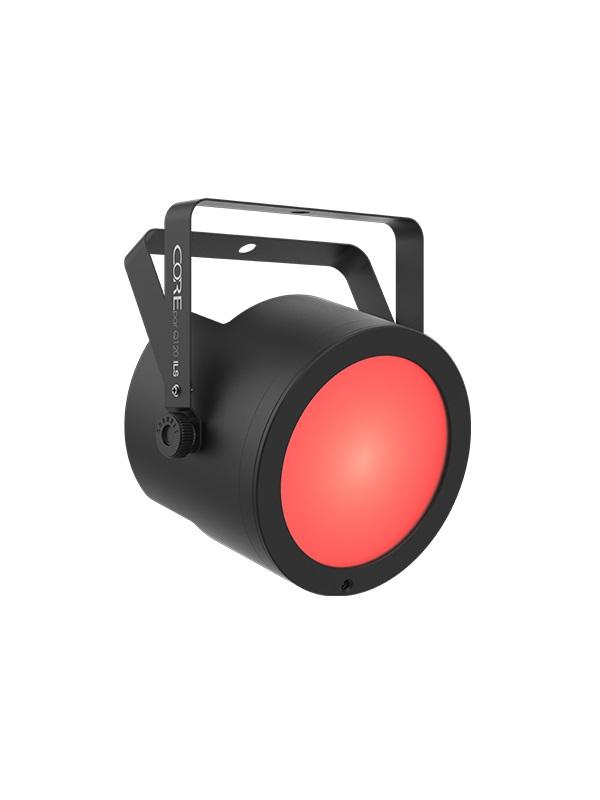

COREpar Q120 ILS is a 120-watt quad-color (RGBW) COB (Chip-on-Board) LED that produces a full spectrum of light with unsurpassed color mixing. Its robust housing withstands the harshness of traveling from gig to gig and its sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit for easy connections. Among the powerful features of the COREpar Q120 is ILS compatibile which makes creating coordinated light shows across different fixture types easy as 1, 2, 3. D-Fi USB compatibility is also board for wireless Master/Slave or DMX control. Achieve flicker-free video operation with high-frequency LED dimming and the included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds. Create customized colors using the built-in LED display and achieve smooth LED fading with built-in dimming curves.
FEATURESCOB (Chip-on-Board) LED produces a full spectrum of light with unsurpassed color mixing
ILS compatibility for use in the ILS ecosystem (D-Fi™ USB sold separately)
D-Fi USB compatibility for wireless Master/Slave or DMX control
Included magnetic Fresnel lens allows the flexibility to go from ultra-wide to narrow beam in seconds
Withstand the harshness of traveling from gig to gig with a robust housing
Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit
Achieve flicker-free video operation with high-frequency LED dimming
Save time running cables and extension cords by power linking multiple units
Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote
Create customized colors using the built-in LED display
Achieve smooth LED fading with built-in dimming curves
Easily transports in the optional CHS-40 VIP Gear Bag
- DMX Channels:4 or 9
- DMX Connectors:3-pin XLR
- Light Source:1 COB LED (quad-color RGBW) 120 W, (6.9 A), 50,000 hours life expectancy
- Strobe Rate:0 to 29 hz
- Beam Angle:
(without lens): 56°
(with lens): 20° - Field Angle:
(without lens): 100°
(with lens): 30° - Illuminance:
(without lens) : 868 lux @ 2 m
(with lens) : 4,639 lux @ 2 m - Power Linking:6 units @ 120 V; 10 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:
100 W, 1.3 A @ 120 V, 60 Hz
94 W, 0.7 A @ 230 V, 50 Hz - Weight:4.6 lbs. (2.1 kg)
- Size:8.9 x 7.4 x 9 in (225 x 188 x 228 mm)
- Approvals:CE, RoHS, UKCA
- Color Temperature Range: 2700 K – 6000 K
- Cable Length: 5ft (1.5 m)
- Bracket Mounting Hole: 13 mm
What's Included
- Fixture
- Power cord
- Magnetic lens
- Quick Reference Guide
