ChamSys QUICK Q RACK 4 Universe controller


5,940.00 5940.0 NZD 5,940.00


Software Download

    This combination does not exist.

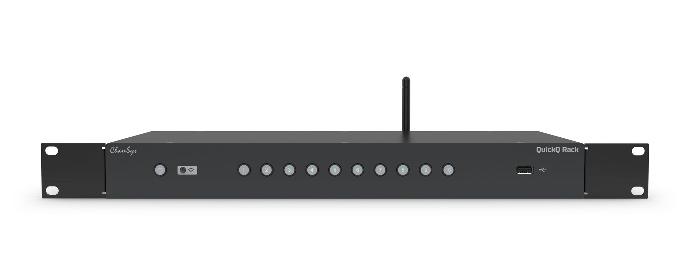

    QuickQ Rack is a small rack mountable version of the QuickQ console designed for installations. It features the same operating system as QuickQ series consoles, but is designed to operate as a remote system without physical user control.

    Featuring 10 playback/execute buttons on the unit, the QuickQ Rack is ideally paired with 10Scene wall plates.

    Supporting four universes QuickQ Rack is ideal for installations, control rooms and bars. The unit can be used as a desktop box or rack mounted with the supplied rack ears.


    • Ideal for installations and architectural settings
    • Featuring four Universes of DMX output
    • Two RDM enabled 5-pin DMX connectors
    • Inbuilt Wi-Fi for programming and remote control
    • Ten buttons for activation of Cues and Playbacks
    • Four 10Scene ports for connection of up to forty 10Scene wall plate
    • Features the same intuitive software as QuickQ Consoles
    • Simple Hot-Takeover mode allowing an external console to take control


    Hardware Specifications:

    • Universes supported: 4
    • Direct DMX Outputs 5-Pin XLR: 2
    • 10Scene buttons: 10
    • External Monitor: 1920 x 1080 HDMI
    • Inbuilt Wi-Fi: Yes
    • Network Port: 1
    • USB Ports: 2
    • Audio Input: 1
    • Audio Output: 1
    • MIDI Ports in/out: Yes
    • TrueCon Power Input: 90-250v AC

    Software Specifications:

    • Max Number of DMX Channels: 2048
    • Max Number of Fixtures Supported: 2048
    • Max Number of Scenes: 10
    • Midi & Midi Timecode Supported: Yes
    • OSC Supported: Yes
    • RDM Autopatch for fast show patching
    • Fixture library of over 30,000 fixture files
    • Built in FX generator
    • Colour picker and Gel inbuilt Gel library
    • Offline designer software available for Windows and Mac
    • Supported fixtures: All - LEDs, Dimmers & Moving Lights

    Rack Weights and Dimensions:

    • Width (without ears): 403mm (15.8 inches)
    • Depth: 195mm (7.7 inches)
    • Height: 45mm (1.8 inches)
    • Weight: 3.1kg (6.8 lb)

    Included Accessories:

    • Wi-Fi Antenna: 1
    • Rackmount Ears: 2
    • 10Scene Connectors: 4
    • Neutrik powerCON TRUE1 Power Cable: 1

    Boxed Weights and Dimensions:

    • Width: 480mm (18.9 inches)
    • Depth: 330mm (13.0 inches)
    • Height: 150mm (5.9 inches)
    • Weight: 4kg (8.81 lb)
