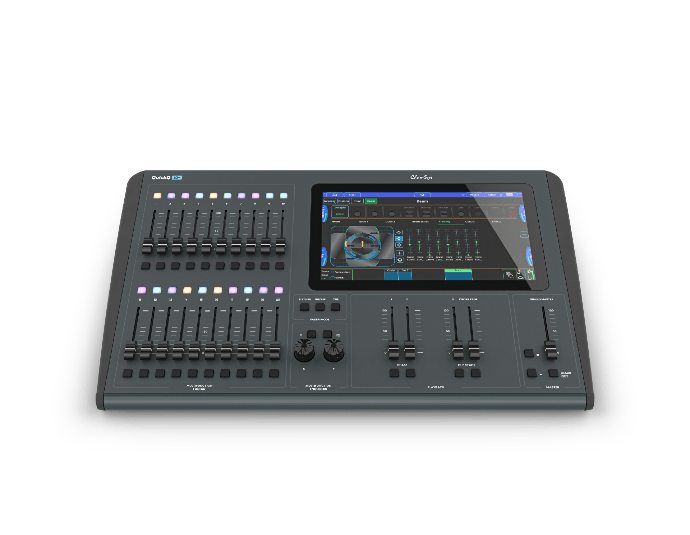

ChamSys QUICK Q 10+ lighting console
QuickQ 10+ is part of the ChamSys QuickQ range of user friendly and affordable lighting control consoles. The QuickQ 10+ is the perfect choice of console for control of dimmer and LED colour mixing fixtures, outputting a full universe of control via direct DMX or Art-Net/sACN. The console features a large 11.6 inch touch screen utilising a smart phone like interface for setup, programming and playback of your show.
Dual network ports enable the separation of lighting and control data. The console can automatically detect and patch RDM compliant fixtures, and features an internal Wi-Fi antenna that enables remote connection to the free QuickQ app available on iOS, Android and Windows tablets and phones. Easily connect the app by simply scanning the QR code on the console display.
The console has easy-to-understand buttons and faders, simple colour selection and intensity control tools, a large touch screen with zooming and scrolling at your fingertips, as well as a simple cue/chase system for playback. Specifically aimed at the novice user, the QuickQ interface easily leads you through setup, programming and operation of the console, with a locking power supply to safeguard against unintended power interruptions.
The console has a free to download offline programming software available for Mac and Windows. You can program your show on your computer, save it onto a flash drive and load it onto the QuickQ console.
QuickQ uses ChamSys extensive and continuously updated personality library with over 60,000 personalities.
QuickQ shows can be loaded onto any MagicQ system, allowing compatibility with and future progression onto the more advanced MagicQ range of consoles.
Key Features
- 1 Universe output via direct DMX or Art-Net/sACN
- User Interface Modelled on smartphone icon interfaces for ease of use
- In-Built Wi-Fi for easy connection to the remote app on iOS & Android devices
- Intuitive interface allowing simple control of all fixture attributes
- Dual Network ports allowing seperation of Lighting and Control Data
Hardware Specifications:
- Universes supported: 1
- Direct DMX Outputs 5-Pin XLR: 1
- Master Playback Faders: 2 Chase, 1 Cue Stack, 1 Crossfader
- Multifunction Fixture Faders: 20
- Bump Buttons: Yes
- Attribute Encoders: 0
- Multifunction Encoders: 2 (Colour/Intensity control options)
- Inbuilt 11.6” Multi-touch Display: Yes
- External Monitor: 1920 x 1080 HDMI
- Inbuilt Wi-Fi: Yes
- Network Port: 2
- USB Ports: 2
- Audio Input: 1
- Audio Output: 1
- MIDI Ports in/out: No
- Max Power Consumption (mains): 60w
Software Specifications:
- Max Number of DMX Channels: 512
- Max Number of Fixtures Supported: 512
- Max Number of Cue Stacks: 1
- Max Number of Chases: 2
- Midi & Midi Timecode Supported: No
- OSC Supported: Yes
- RDM Autopatch for fast show patching
- Fixture library of over 60,000 fixture files
- Built in FX generator
- Colour picker and Gel inbuilt Gel library
- Offline designer software available for Windows and Mac
Included Accessories:
- USB Desk light: 1
- Dust cover: 1
- Tablet stand: 1
- 12V power supply: 1
- IEC power cable: 1
Boxed Weights and Dimensions:
- Width: 680 mm (26.8 inches)
- Depth: 420 mm (16.5 inches)
- Height: 230 mm (9 inches)
- Weight: 8kg (17.63 lb)
Flight Cased Weights & Dimensions:
- Width: 650 mm (25.6 inches)
- Depth: 490 mm (19.3 inches)
- Height: 210 mm (8.3 inches)
- Weight (console in flightcase): 16kg (35.27 lb)
Unit Weights and Dimensions:
- Width: 570mm (22.4 inches)
- Depth: 350mm (13.8 inches)
- Height: 106mm (4.2 inches)
- Weight: 5.2kg (11.46 lb)
