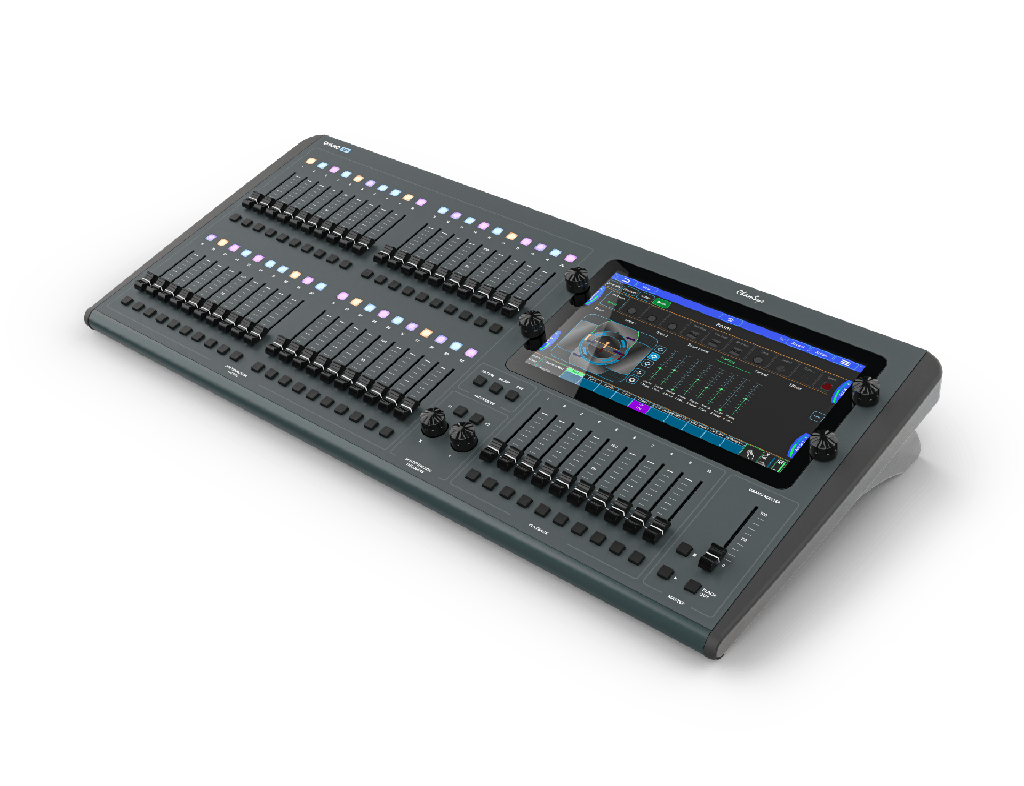

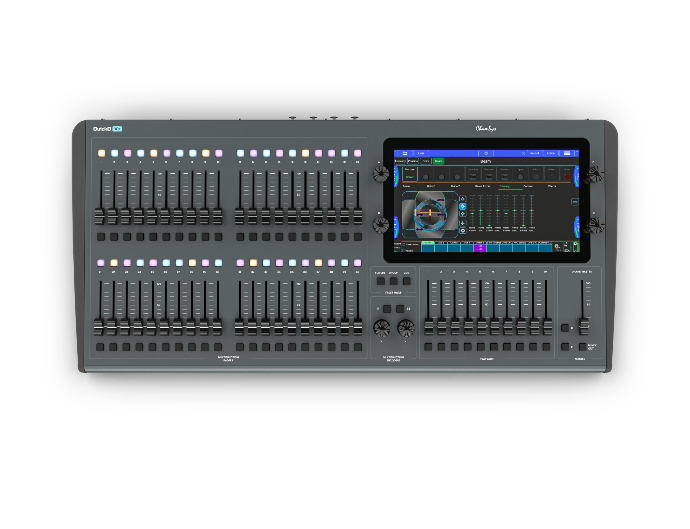

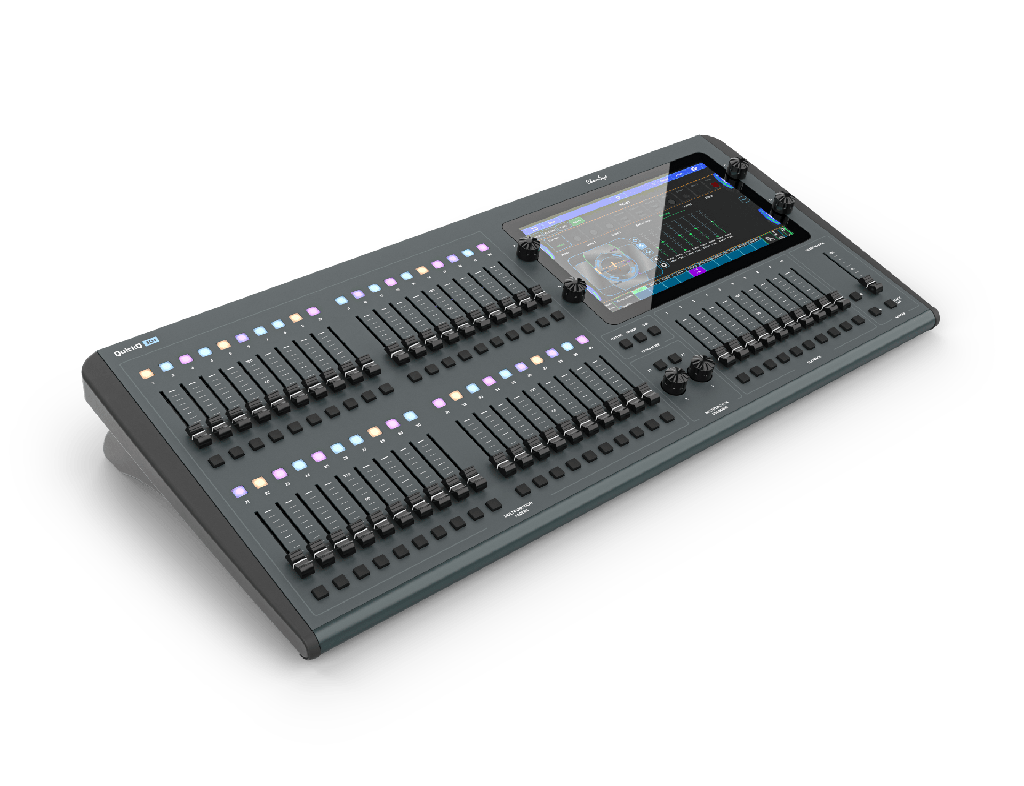

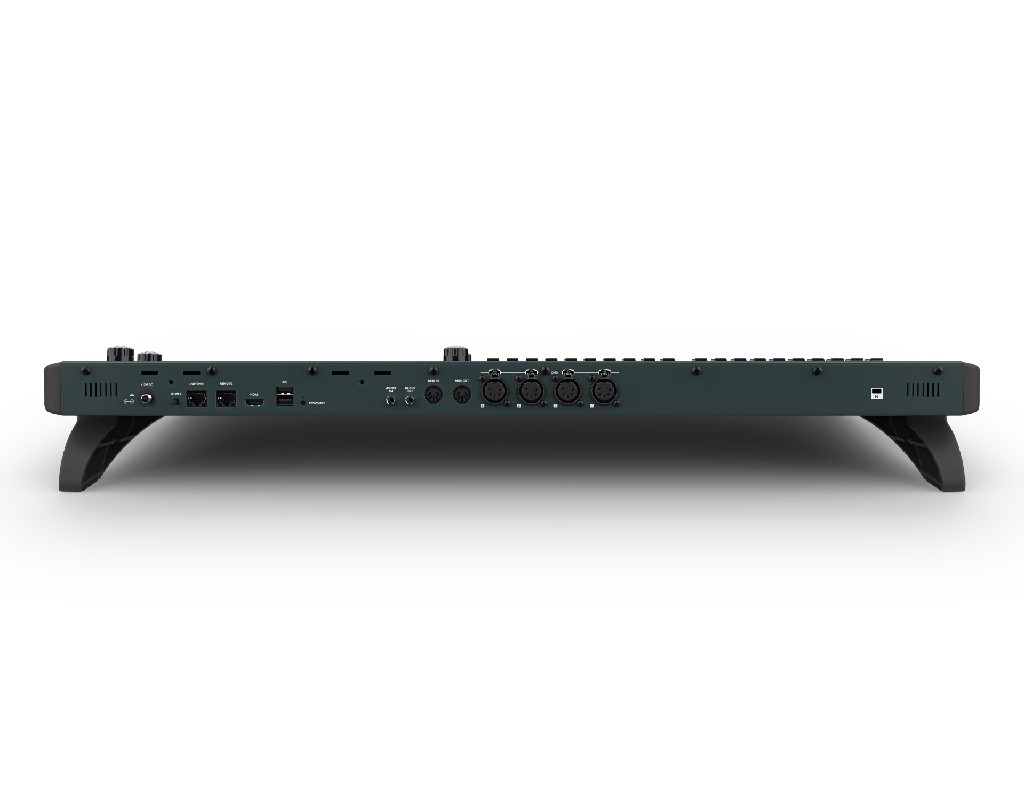

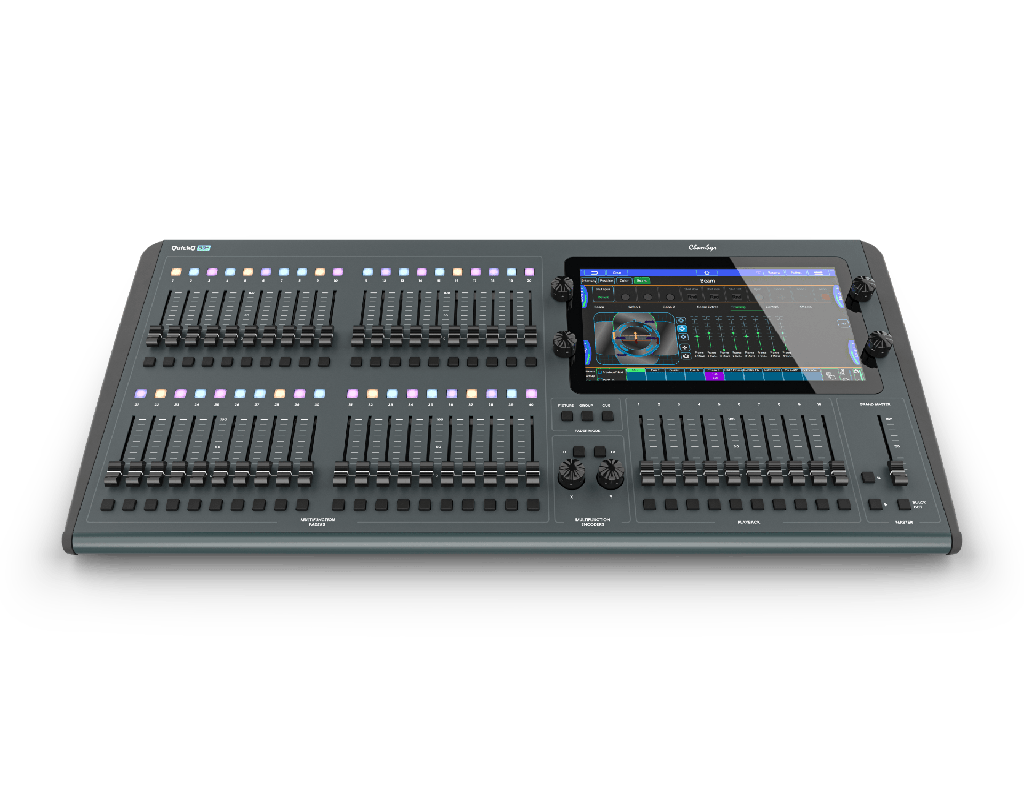

ChamSys QUICK Q 30+ lighting console
QuickQ 30+ is part of the ChamSys QuickQ range of user friendly and affordable lighting control consoles. The QuickQ 30+ is the perfect choice of console for control of dimmer, LED colour mixing and moving light fixtures, outputting four universes of control via direct DMX or six universes via Art-Net/sACN. The console features a large 11.6 inch touch screen utilising a smart phone like interface for setup, programming and playback of your show.
Dual network ports enable the separation of lighting and control data. The console’s four RDM-enabled DMX ports enable automatic detection and patching of RDM compliant fixtures, and its internal Wi-Fi antenna enables remote connection to the free QuickQ app available on iOS, Android and Windows tablets and phones. Easily connect the app by simply scanning the QR code on the console display.
The console has easy-to-understand buttons and faders, simple colour selection and intensity control tools, a large touch screen with zooming and scrolling at your fingertips, as well as a simple cue/chase system for playback. Specifically aimed at the novice user, the QuickQ interface easily leads you through setup, programming and operation of the console, with a locking power supply to safeguard against unintended power interruptions.
The console has a free to download offline programming software available for Mac and Windows. You can program your show on your computer, save it onto a flash drive and load it onto the QuickQ console.
QuickQ uses ChamSys extensive and continuously updated personality library with over 60,000 personalities.
QuickQ shows can be loaded onto any MagicQ system, allowing compatibility with and future progression onto the more advanced MagicQ range of consoles.
Key Features
- 6 Universe output via Art-Net/sACN
- 4 RDM Enabled Direct DMX Outputs
- User Interface Modelled on smartphone icon interfaces for ease of use
- In-Built Wi-Fi for easy connection to the remote app on iOS & Android devices
- Intuitive interface allowing simple control of all fixture attributes
- Dual Network ports allowing seperation of Lighting and Control Data
- Hardware Specifications:
- Universes supported: 6
- Direct DMX Outputs 5-Pin XLR: 4
- Master Playback Faders: 10
- Multifunction Fixture Faders: 20
- Bump Buttons: Yes
- Attribute Encoders: 4
- Multifunction Encoders: 2 (Colour/Intensity/Position control options)
- Inbuilt 11.6” Multi-touch Display: Yes
- External Monitor: 1920 x 1080 HDMI
- Inbuilt Wi-Fi: Yes
- Network Port: 2
- USB Ports: 2
- Audio Input: 1
- Audio Output: 1
- MIDI Ports in/out: Yes
- Max Power Consumption (mains): 60w
- Max Number of DMX Channels: 3072
- Max Number of Fixtures Supported: 3072
- Max Number of Cue Stacks: 2000
- Max Number of Chases: 2000
- Midi & Midi Timecode Supported: Yes
- OSC Supported: Yes
- RDM Autopatch for fast show patching
- Fixture library of over 60,000 fixture files
- Built in FX generator
- Colour picker and Gel inbuilt Gel library
- Offline designer software available for Windows and Mac
- USB Desk light: 1
- Dust cover: 1
- Tablet stand: 1
- 12V power supply: 1
- IEC power cable: 1
- Width: 900mm (35.4 inches)
- Depth: 420mm (16.5 inches)
- Height: 230mm (9 inches)
- Weight: 10kg (22.04 lb)
- Width: 860mm (33.8 inches)
- Depth: 490mm (19.3 inches)
- Height: 220mm (8.7 inches)
- Weight (console in flightcase): 20kg (44.09 lb)
- Width: 760mm (29.9 inches)
- Depth: 350mm (13.8 inches)
- Height: 106mm (4.2 inches)
- Weight: 6.1kg (13.44 lb)
Software Specifications:
Included Accessories:
Boxed Weights and Dimensions:
Flight Cased Weights & Dimensions::
Unit Weights and Dimensions::
All prices are exclusive of GST and freight, which are automatically calculated on order confirmation and/or checkout. Items in stock are generally dispatched within 1-2 working days of order being confirmed. Standard MDR terms and conditions (available below) apply to all orders.
