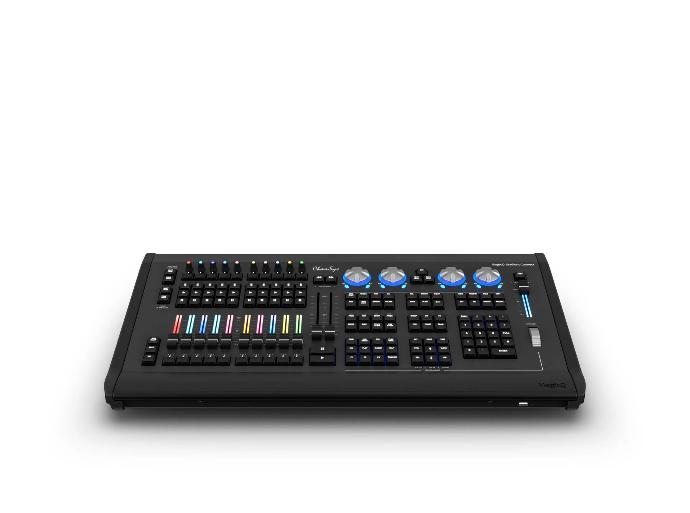

ChamSys MagicQ STADIUM CONNECT 64 Universe PC Control Surface
MagicQ Stadium Connect is a PC-based programming interface with the same programming keyset and dual crossfaders as the MQ250M and MQ500M. Outputting 64 universes directly from the Connect, and the ability to pre-vis up to 256 universes, MagicQ Stadium Connect is the ultimate solution for complete control on-the-go. With 10 backlit and motorised faders and 10 backlit playback encoders with executors, the MagicQ Stadium Connect provides plenty of programmable real estate for your show.
FEATURES
- 10 fully motorised fader playbacks
- 10 encoder playbacks
- RGB illumination of playbacks
- Backlit buttons
- 64 universes direct from MagicQ for Art-net/sACN output
- 256 visualisation universes for pre-programming
- Network port acts as network interface for PC
- Dual 100mm Manual Cross Faders
- 2 dedicated high power USBs for charging of phones/tablets
Hardware Specifications:
- Direct DMX Outputs: 4
- Motorised Playbacks: 10
- Encoder Playbacks: 10
- Total no of Playbacks: 20 (10+10)
- Dual Cross Faders: Yes
- Attribute Encoders: 4
- Backlit Keys: Yes
- Illuminated Playback/Encoders with RGB control: Yes
- Intensity Wheel: 1
- Network Ports: 1
- USB Ports : 4
- Audio Input Sound to Light: Yes
- MIDI Ports 1 in and out: Yes
- LTC Timecode Ports in and out: Yes
- 10Scene Port: 1
- Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
Software Specifications:
- Universes direct from software (via Artnet/sACN/Pathport): 64
- Visualisation Universes: 256
- Max Number of DMX Channels: 32,768
- Max Number of Fixtures Supported: 32,768
- Max Number of Cues: 5000
- Max Number of Cue Stacks: 2000
- Max Number of Groups: 5000
- Max Number of Palettes: 4096
- Number of Media Server Layers Supported: 50 (each different content)
- Supported on Windows (8.1 or higher), macOS (10.13 or higher) and Linux
Included Accessories:
- Dual Colour Desk lights: 2
- Dust cover: 1
- Neutrik powerCON TRUE1 Power Cable: 1
- USB Cable: 1
Flight Cased Weights and Dimensions:
- Width: 761mm (29.9")
- Depth: 467mm(18.3")
- Height: 197mm (7.7")
- Weight (stadium connect in flightcase): 20.0kg (44.1lbs)
Stadium Connect Weights and Dimensions:
- Width: 680mm (26.8")
- Depth: 364mm (14.3")
- Height: 85mm (3.3")
- Weight: 8.7kg (19.1bs)
