CHAUVET TRUSST 290mm QUAD 90 degree curve 2m diameter (4 to make circle)


820.88 820.88 NZD 820.88 GST Excluded

820.88 GST Excluded

Software Download

    This combination does not exist.

    TRUSST® is comprised of modular aluminum components that are manufactured from high-grade and lightweight aluminum which is easy for transportation and setup. All TRUSST® items are fabricated by SLV certified welders and made from 6082-T6 alloy aluminum.

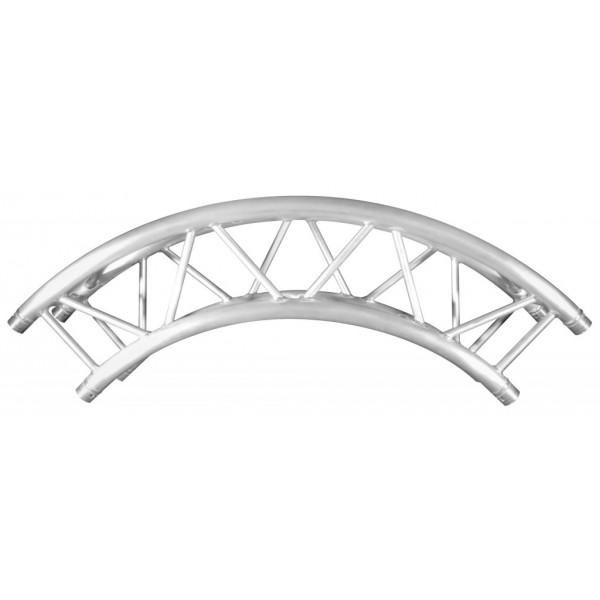

    The CT290-420CIR-90 arc truss with an outside diameter of 2.0 meters (6.56 ft) and an 90° arc is compatible with many TRUSST® accessories and ideal for a multitude of applications and designs when used in combination with TRUSST® Sticks, Corners, Base Plates, Accessories and Clamps.


    • Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup
    • Carefully crafted by SLV-certified welders
    • Compatible with many TRUSST® accessories to create an astonishing and custom presentation
    • Available in different sizes for mobile entertainers, productions, nightclubs and retail stores
    • Includes connecting hardware


    • Outside diameter: 6.56 ft (2 m)
    • Inside diameter: 4.92 ft (1.5 m)
    • Arc: 90°
    • Outer diameter tube: 2 in (50 mm)
    • Diagonal bracing: 0.75 in (20 mm)
    • Wall thickness: 0.08 in (2 mm)
    • Weight: 21.6 lb (9.8 kg)
    • Approvals: SLV
