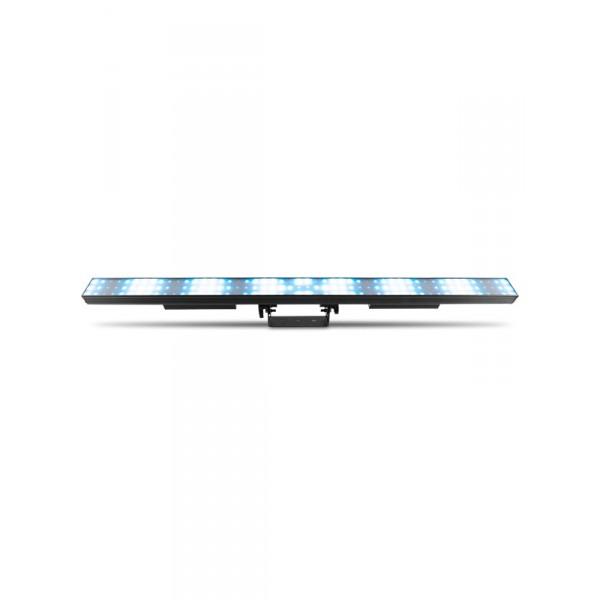

CHAUVET EPIX BAR TOUR led pixel strip light, 1m

https://www.mdrlighting.co.nz/web/image/product.template/3897/image_1920?unique=e4c42fb

EPIXBARTOUR

796.33 796.33 NZD 796.33 GST Excluded

796.33 GST Excluded

Software Download

    This combination does not exist.


    Épix Bar Tour is a pixel-mapping 1-meter LED bar, featuring 150 LEDs in three rows and a 125° viewing angle. Use the Épix Drive 900 to power and control it on Art-Net, Kling-Net, or sACN (streaming ACN).

    FEATURES

    • Pixel-mapping 1-meter 50 x 3 LED bar for showing video and/or motion graphics
    • Includes both black stealth filter (installed) for high contrast and white frosted filter (included) for high output
    • Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets
    • ÉPIX Drive 900 is required for operation

    SPECIFICATIONS

    OPTICAL

    • Light Source: 150 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
    • Viewing Angle: 125°
    • Illuminance (white frost filter installed): 2,040 NITS
    • Illuminance (black stealth filter installed): 601 NITS
    • Pixels: 50 x 3
    • Pixel Pitch: 20 mm
    • Refresh Rate: 4,700 Hz

    DYNAMIC EFFECTS

    CONSTRUCTION / PHYSICAL

    • Dimensions: 39.37 x 4.72 x 2.36 in (1000 x 120 x 60 mm)
    • Weight: 4.54 lb (2.06 kg)
    • Exterior Color: Black
    • Housing Material: Aluminum die-cast

    CONNECTIONS

    • Data Connectors: 4-pin XLR
    • Physical Linking: 6 inline Epix Bar Tour
    • Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
    • Total max. cable length (shielded cables) between Epix Drive 900 and last Epix Tour fixture: 210 ft (64 m)
    • Max. cable length (shielded cables) between Epix Drive 900 and first Epix Tour fixture: 65 ft (20 m)
    • Max. cable length (shielded cables) between Epix Tour fixtures: 60 ft (18 m)
    • Total max. cable length (unshielded cables) between Epix Drive 900 and last
    • Epix Tour fixture: 300 ft (91 m)
    • Max. cable length (unshielded cables) between Epix Drive 900 and first Epix Tour fixture: 150 ft (45 m)
    • Max. cable length (unshielded cables) between Epix Tour fixtures: 100 ft (30 m)

    CONTROL

    • Control Protocol: Art-Net, Kling-Net, sACN
    • Control Channels: 450

    ELECTRICAL

    • Power and Current: 50 W, 0.42 A @ 120 V, 60 Hz
    • Power and Current: 50 W, 0.24 A @ 208 V, 60 Hz
    • Power and Current: 50 W, 0.21 A @ 230 V, 50 Hz

    CABLE

    CERTIFICATIONS / QUALIFICATIONS

    • CE, MET
    • IP Rating: IP20, dry location
    • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

    WHAT'S INCLUDED

    • ÉPIX Bar Tour
    • White Frost Filter

    REQUIRED ACCESSORIES

    OPTIONAL ACCESSORIES
