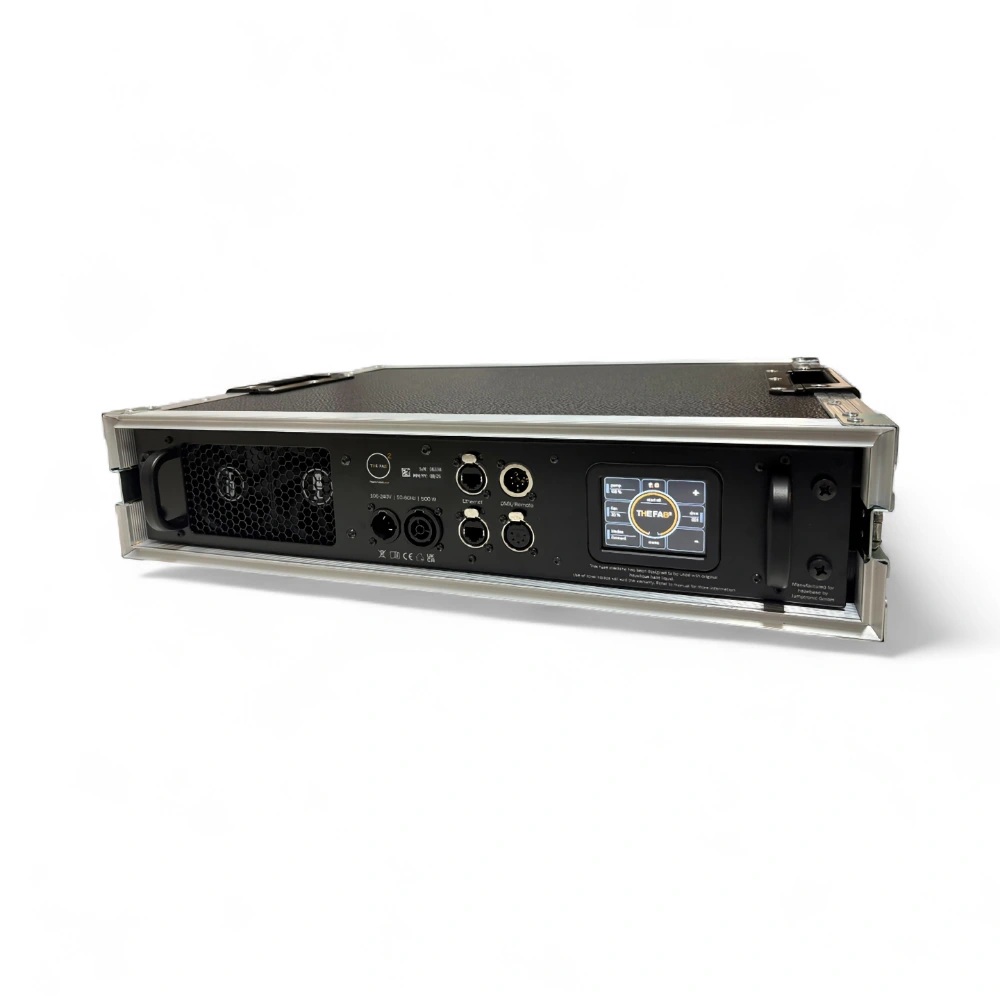

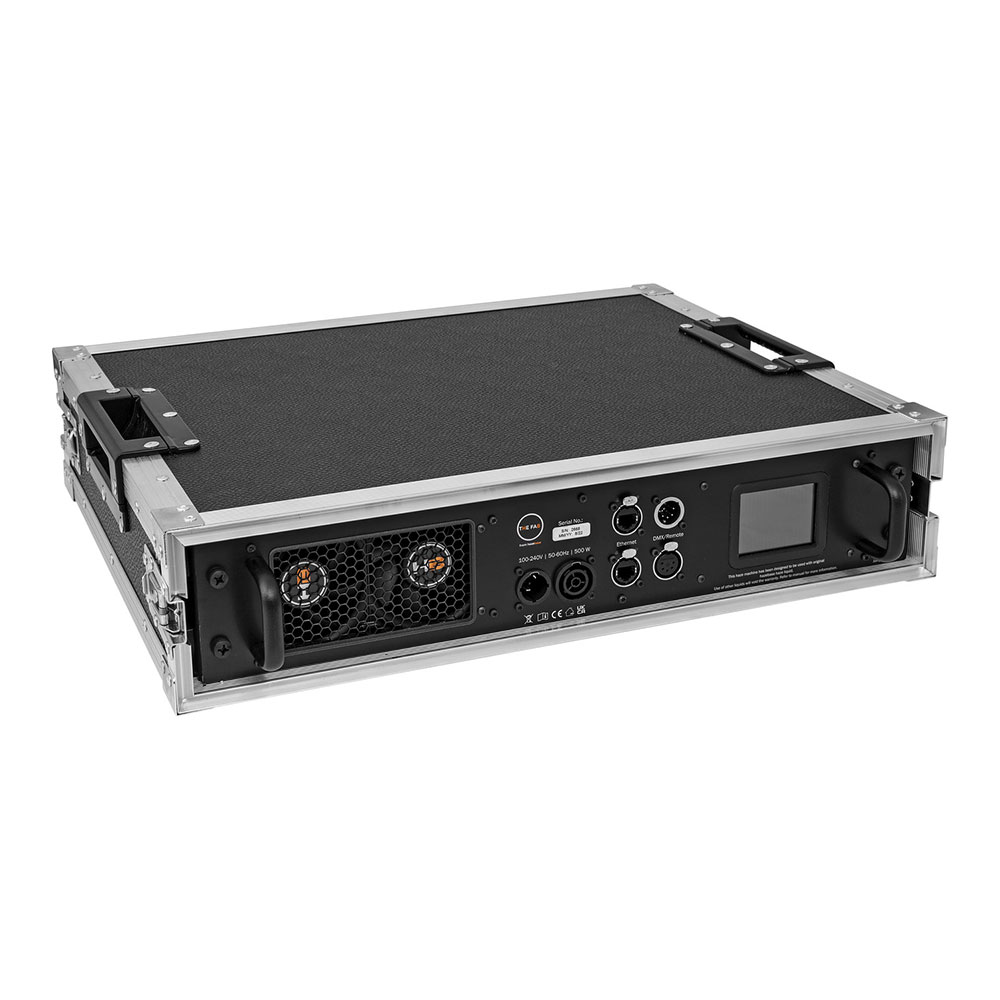

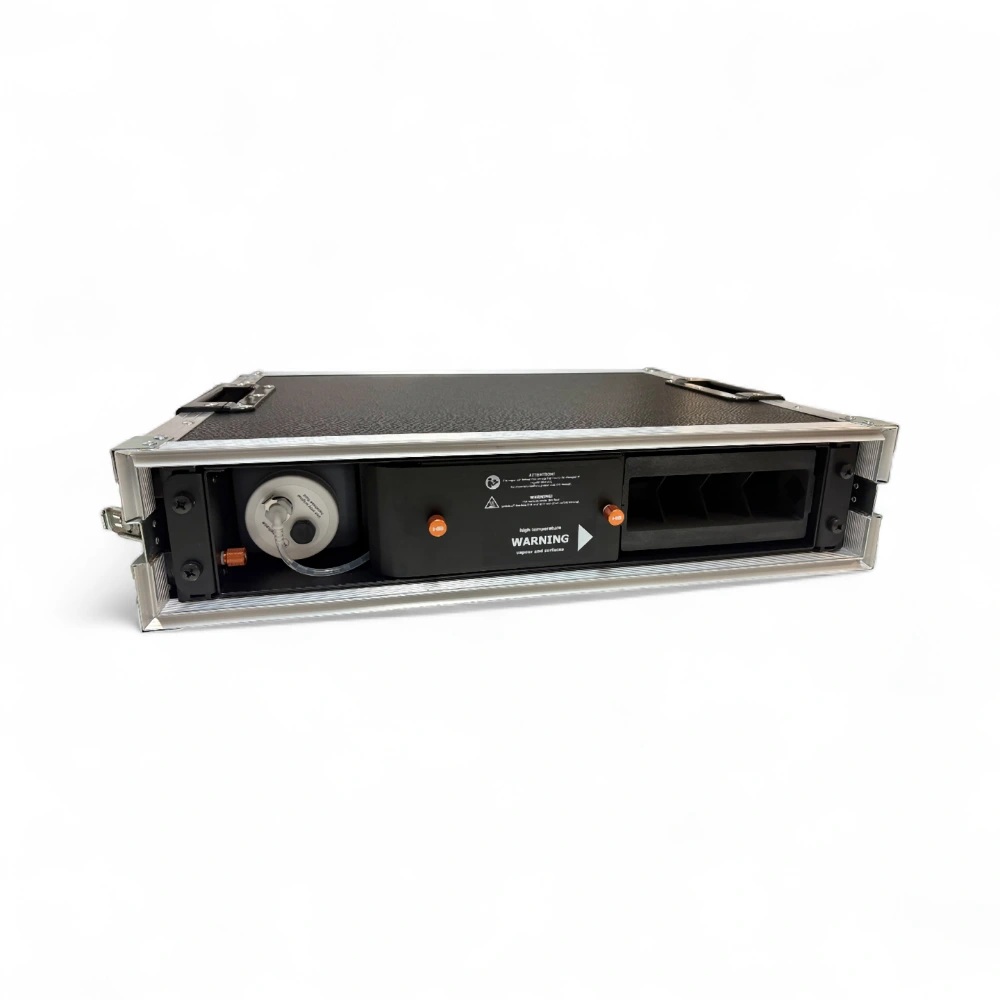

The Hazer Revolution Refined
FEATURES
- 5 seconds heating time
- Haze density adjustable from 1-100%.
- 2.8" TFT display with automatic display rotation
- 2 motorized controllable air leading metals, +/- 45 ° swiveling
- integrated 2-port switch
- 19“ Flightcase with 2 HE
Technical data
| Operating principle | Hazer without compressor |
| Connection data | 100-240 V~, 50-60 Hz, 500 W (PowerCON TRUE1) |
| Heating time | 5 seconds |
| Haze density | 1-100% adjustable |
| Fluid tank | 1000ml |
| Pump capacity | 1% pump capacity 5.6ml / hr.100% pump capacity 223ml / hr. |
| Operation | 2.8″ TFT display with touch panel, automatic display rotation (0° / 180°) |
| Communication interfaces | 10/100 Mbit Ethernet with integrated 2-port switch 5 pin XLR in/out |
| Supported protocols | Artnet, sACN, DMX512, RDM |
| DMX control | 3 channels (pump, fan speed, angle ) |
| Integrated fans | 2 axial fans with one per 100m³/h, 0-100 adjustable, |
| Air leading metal | 2 motorized controllable air leading metals, +/- 45 ° swiveling |
| Integrated sensors | Fan speed, accelerometer, temperature sensor |
| Integrated battery | 4x NiMH batteries for configuration without power cord |
| Supported fluids | Base*V, Base*B |
| Weight | – |
| Dimensions (LxWxH) | 19″ Flightcase with 2 U |
| Weight (kg) | 16,6 kg (37,5 lbs) |
