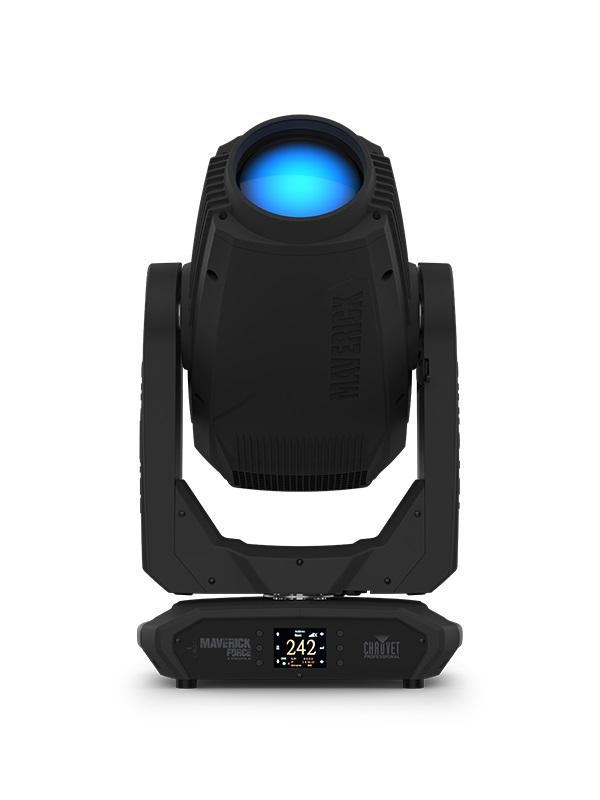

CHAUVET Maverick Force 3 Moving Profile

https://www.mdrlighting.co.nz/web/image/product.template/45585/image_1920?unique=1e99f5b

MAVERICKFORCE3PROFILE

19,267.88 19267.88 NZD 19,267.88 GST Excluded

19,267.88 GST Excluded

Software Download

    This combination does not exist.


    Maverick Force 3 Profile brings quick movement and fast effects together in a blazingly bright LED yoke profile fixture that harnesses the latest technology to deliver 40,906 lumens of output. Precision optics capture the depth of a CMY + CTO color mixing system renowned for its real reds and maintain a flat field of focus even when taking its 10:1 zoom fully wide. Color calibration and gobo selection comes matched to other Force fixtures in the rig, along with the advanced 4-blade shutter frame system and effects wheelhouse that delivers the great static, rotating, and animation effects the Force series is known for. Take control with DMX, RDM, sACN, Art-Net, or W-DMX.


    FEATURES
    • Full featured 915 W LED yoke profile fixture including CMY+CTO color mixing, a four blade framing shutter system with rotation, a color wheel, a CRI filter, animation wheel, a 10:1 zoom, two independently layerable prisms, two frosts, a static and a rotating gobo wheel

    • 16-bit dimming of master dimmer for smooth control of fades

    • Variable CMY + CTO color mixing system to create a wide pallet of colors

    • CRI and CTB filters on color wheel for added flexibility

    • Independently layerable five facet linear and five facet round prisms for increased prism options

    • One rotating and one static gobo wheel for dynamic texture possibilities

    • Independent light and medium frosts for beam control

    • + or – 60 degree rotation framing shutter system to allow for better framing positioning.

    • Animation wheel for enhanced visual effects

    • Iris for total beam control

    • DMX, WDMX, sACN, and Art-Net for full flexibility of control options

    • RDM control over DMX for fixture reporting

    • 4.9° to 53.9° zoom angle for variable beam sizes

    • Three menu presets and preset cross load for decreased shop setup time

    • True 1 compatible power input

    • USB slot for software uploads

    • Battery backup display with auto-rotate depending on fixture orientation.

    • Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost.


    SPECIFICATIONS

    OPTICAL

    • Light Source: 1 LEDs (CW) 915 W, (4.3 A), 7500 K, 50,000 hours life expectancy
    • Color Temperature (at full): 7228 K
    • CRI: 70.9
    • CRI with CRI Filter: 89.4
    • Front Lens Diameter: 65 mm
    • Beam Angle: 4.9 ° to 42.8°
    • Field Angle: 5.8° to 49.4°
    • Cutoff Angle 6.5° to 53.6°
    • Zoom Range: 4.9° to 53.9°
    • Lumens – Source: 62,000
    • Lumens – Output: 40,906
    • Illuminance (4.9°) 130,582 lux @ 5 m
    • Illuminance (53.9°) 3,792 lux @ 5 m
    • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz



    DYNAMIC EFFECTS

    • Pan and Tilt: 540°/270°
    • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
    • Colors: 6 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
    • Colors: CMY flags
    • Gobos (1): 7 + open glass, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
    • Gobos (2): 9 + open glass, static, continuous scroll at variable speeds
    • Gobo Size: Gobo Wheel 1 (rotating): 27 mm (outside), 22 mm (image), 1.1 mm (max. thickness)
    • Gobo Size: Gobo Wheel 2 (static): 27 mm (outside), 22 mm (image), 1.1 mm (max. thickness)
    • Framing Shutters: 4 blades, each with dual axis movement.
    • Framing Shutter rotation: +/- 60° rotation.
    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Zoom: Motorized
    • Focus: Motorized
    • Frost: Motorized
    • Iris: Motorized
    • Prism: 5 Linear Facets, motorized, rotating
    • Prism: 5 Circular Facets, motorized, rotating
    • Strobe Rate: 0 to 26 Hz
    • Move-in-Black: Yes
    • Dim Curves: 4



    CONSTRUCTION / PHYSICAL

    • Dimensions: 16.73 x 10.98 x 30.47 in (425 x 279 x 774 mm)
    • Weight: 84.2 lb (38.2 kg)
    • Exterior Color: Black
    • Housing Material: High-impact flame-retardant polymer



    CONNECTIONS

    • Power Connection: Edison plug to Seetronic Powerkon IP65
    • Power Input: Seetronic Powerkon IP65
    • Data Connectors: 3- and 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
    • Cable Length (power): 5 ft (1.5 m)



    CONTROL

    • Control Protocol: Art-Net, DMX, RDM, W-DMX, sACN
    • DMX Channels: 37 or 53
    • Art-Net Channels: 37 or 53
    • Modes/Personalities: 2 personalities (37, 53)



    ELECTRICAL

    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power and Current: 1320 W, 11.29 A @ 120 V, 60 Hz
    • Power and Current: 1270 W, 6.32 A @ 208 V, 60 Hz
    • Power and Current: 1260 W, 5.76 A @ 230 V, 50 Hz
    • Fuse Size: F20 A, 250 V



    CERTIFICATIONS / QUALIFICATIONS

    • CE, MET, FCC,UKCA
    • IP Rating: IP20, dry location
    • Noise Level (ambient): 37.1 dB level @ 1 m
    • Noise Level (static - Full): 46.1 dB level @ 1 m
    • Noise Level (static - ECO): 47.6 dB level @ 1 m
    • Noise Level (Static - Auto): 55.0 dB level @ 1 m
    • Noise Level (Static - Max): 58.7 dB level @ 1 m
    • Noise Level (Static – TV25): 47.5 dB level @ 1 m
    • Noise Level (Static – TV35): 47.4 dB level @ 1 m
    • Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
    • Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)



    WHAT'S INCLUDED

    • Maverick Force 3 Profile
    • Seetronic Powerkon IP65 power cord
    • Omega bracket with mounting hardware



    OPTIONAL ACCESSORIES

    • Clamps
    • Barn Doors
    • Neutrik powerCON cables
    • Neutrik etherCON cables
    • DMX Cables
    • Flight Cases
    • CP Rack
