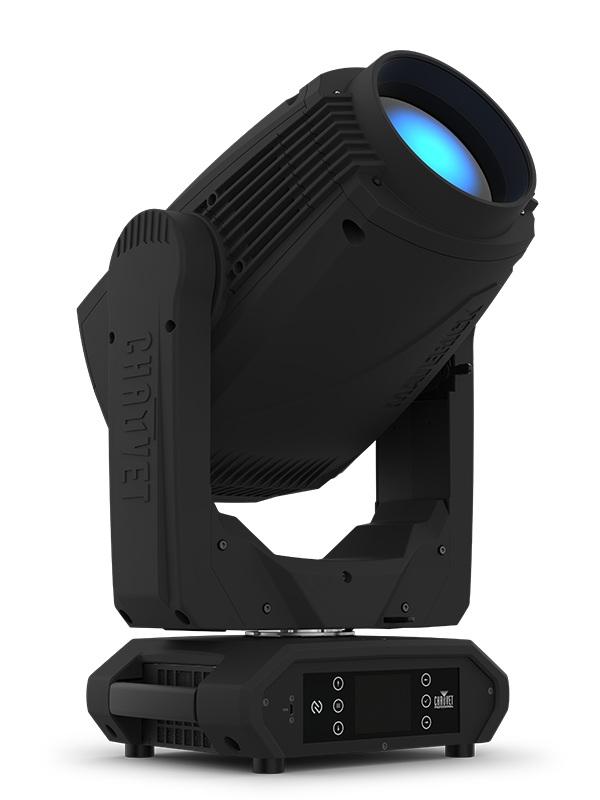

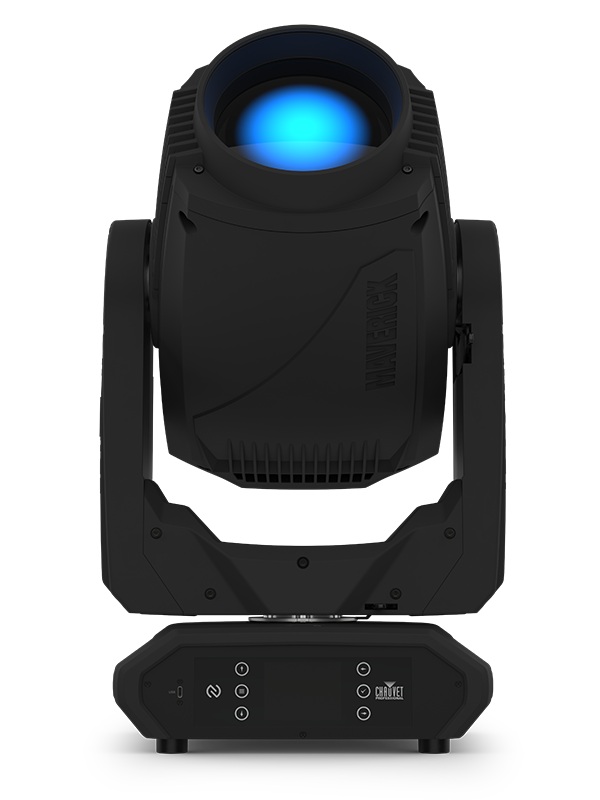

CHAUVET Maverick Force X Spot Moving Head, 520W led, 4.1-43.1 deg zoom

​ This powerful yet lightweight fixture combines the latest technical advancements of the Maverick series to achieve 17,325 lumens of output in a design that maintains a flat field of focus from its narrow 3.5° beam to its wide 57.7° beam. Color calibration and gobo selection are comparable to other Force fixtures, and its design includes a variable CMY color mixing system, renowned for its true reds, a color wheel with CRI and CTB filters, static and rotating gobo wheels, a five-facet prism, iris, and frost. With excellent dimming performance, a wide 18:1 zoom, and a comprehensive array of features, the Maverick Force X Spot is a compact LED moving head, ideal for a wide range of short- and long-throw applications. Control via DMX, RDM, sACN, Art-Net, or CRMX.

FEATURES

• Fully featured, compact and lightweight 520 W LED yoke spot fixture including CMY color mixing, a color wheel, zoom optics, and two gobo wheels: one rotating, and one static

• 16-bit dimming of master dimmer for smooth control of fades

• 65,000 PWM for use with the fastest frame cameras, but still maintains fantastic dimming

• Variable CMY color mixing system to create a wide pallet of colors

• DMX, CRMX, sACN, and Art-Net for full flexibility of control options

• RDM-enabled for remote addressing and trouble shooting

• 3.5° to 57.7° zoom range for variable beam sizes

• Iris, 5-facet prism, and frost for beam control

• True-1 compatible power input

• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup

• USB slot for software uploads

• Battery backup display with auto-rotate depending on fixture orientation

• Failsafe Ethernet connectivity allows data to pass even if fixture power is lost

• NFC for quick/easy fixture setup in the shop or in the field

SPECIFICATIONS

Optical

• Light Source: 1 LED (CW) 520 W, (4.2 A), 6462 K, 50,000
• Color Temperature (at full): 6462 K
• Front lens diameters: 145 mm
• CRI: 72.2
• CRI with CRI filter: 90
• Beam Angle: 3.5° to 51.3°
• Field Angle: 3.7° to 56.3°
• Cutoff Angle: 3.9° to 57.7°
• Zoom Range: 3.5° to 57.7°
• Lumens - Output: 17,325
• Illuminance(3.5°) : 93,084 lux @ 5 m
• Illuminance (57.7°) : 1,135 lux @ 5 m
• Selectables PWM : 600Hz, 1500Hz, 2000Hz 65000Hz

Dynamic Effects

• Pan and Tilt: 540°/270°
• Pan and Tilt ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
• Colors: CMY wheels
• Color Macros: # macros
• Gobos (1) open (9 metal), rotating, continuous scroll at variable speeds
• Gobos (2): 7 + open (1 metal + 6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 24 mm (outside), 14 mm (image), 1.1 mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobo: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 5-facet, motorized, rotating
• Strobe Rate: 0 to 25 Hz
• Move-in-Black: yes
• Dim Curves: 5

Construction / Physical

• Dimensions: 14.21 x 9.40 x 25.43 in (361 x 239 x 646 mm)
• Weight: 44.2 lbs (20 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel

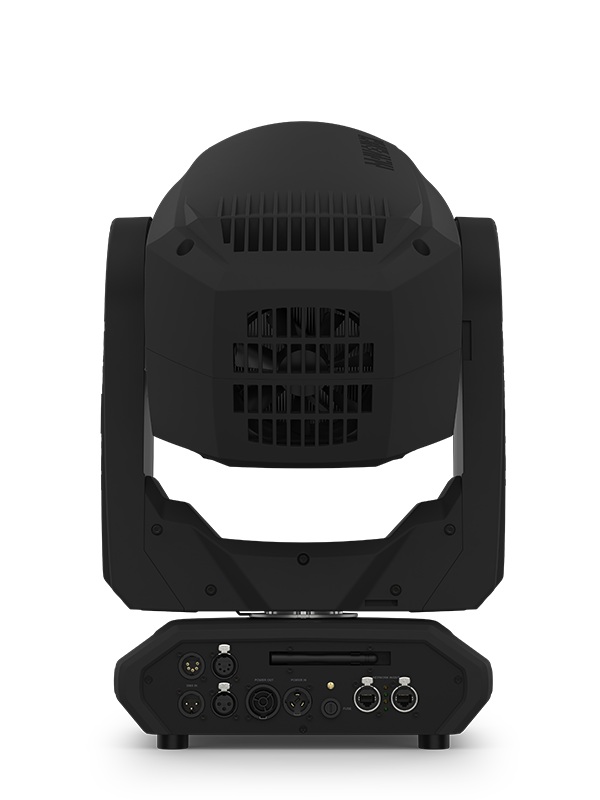

Connections

• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin IP65 XLR, Seetronic etherCON
• Cable Length (signal): 5 ft (1.5 m)

Control

• DMX Channels: 22 or 29
• Art-Net Channels : 22 or 29
• Modoes/Personalities: 2 personalities (22, 29)

Electrical

• Input Voltage: 100 a 240 VAC, 50/60 Hz
• Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
• Power and Current: 554 W, 4.64 A @ 120 V, 60 Hz
• Power and Current: 541 W, 2.68 A @ 208 V, 60 Hz
• Power and Current: 542 W, 2.44 A @ 230 V, 50 Hz

Battery

• Battery type: Lithium Ion (display screen backup)
• Rechargable: Yes
• Battery Charge Time: 5 hours
• Battery Life: 1 hour
• Battery Power: 3.7 V, 500 mAh

Certifications / Qualifications

• CE, MET, FCC, UKCA
• IP Rating: IP20, dry location
• Temperature (Ambient):-4 °F to 113 °F ( -20 °C a 45 °C )

What's Included

• Maverick Force X Spot
• Seetronic Powerkon power cable
• Omega brackets with mounting accessories

Optional Accessories

• Clamps
• RigLink IP65 powerCON cables
• RigLink etherCON cables
• DMX cables
• Flight Cases
• CP Rack
• PowerStream 4 IP
