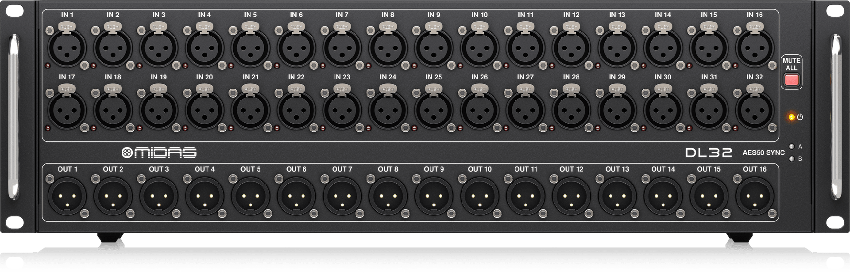

MIDAS DL32-REMOTE STAGE BOX-32 Mic inputs, 16 outputs, ADAT, Ultranet

https://www.mdrlighting.co.nz/web/image/product.template/4931/image_1920?unique=ba91a88

MIDAS-DL32

$ 2,946.96 2946.96 NZD $ 2,946.96 GST Excluded

$ 2,946.96 GST Excluded

Software Download

    This combination does not exist.

    Contact Us


    The Midas DL32 stage box represents a serious upgrade of your mixing console and in-ear monitoring rig with the sound of Midas Pro preamps. This 32-in/16-out AES50-networkable device makes adding a digital snake to your rig as easy as running a single Cat 5 cable, and you can daisy chain up to two DL32s together, so you can comfortably set 64 remote-controllable Midas Pro preamps onstage with plenty of returns to spare for monitor mixing. Speaking of monitor mixing, the DL32 is Ultraconnect capable, so you can easily integrate it into your Behringer Powerplay P16 personal monitoring system.


    FEATURES
    • Flexible professional digital stage box that works with Powerplay monitor systems and AES50-ready digital consoles
    • 32 x fully programmable and remote-controllable Midas Pro mic preamps give you exceptional sound, right from the stage
    • 16 x analog, servo-balanced XLR outputs let you send complete monitor mixes to the stage
    • AES50 network ports provide you with ultra-low latency digital audio that's in-ear compatible
    • Up to 328' of networking capability via a single lightweight Cat 5e cable (not included)
    • Dual AES50 ports let you cascade up to 2 DL32 units together for an up to 64-in/32-out system
    • Precise LED metering plus 7-segment displays let you keep a close eye on your levels
    • Headphones output assignable to any of the inputs/outputs for on-stage monitoring
    • Ultranet connectivity for Behringer's Powerplay P16 personal monitoring system is perfect for in-ear applications
    • Dual ADAT outputs for use in splitter mode and stand-alone digital multicore applications
    • MIDI In/Out provide bidirectional communication between FOH console and on-stage MIDI devices
    • Durable yet compact, all-steel 3U rack-mount chassis provides flexible mounting


    SPECIFICATIONS
    • Type: Digital Stage Box
    • Compatibility: AES50/Ultranet systems
    • Channels: 32 x 16
    • Inputs - Mic Preamps: 32 x XLR
    • Phantom Power: Yes
    • Outputs - Main: 16 x XLR (line)
    • Inputs - Digital: 2 x EtherCon (AES50)
    • Outputs - Digital: 2 x EtherCon (AES50), 2 x XLR (AES/EBU), 2 x Optical Toslink (ADAT)
    • Data I/O: 1 x Ethernet (Ultranet monitoring)
    • USB: 1 x Type B
    • Computer Connectivity: USB, Ethernet
    • MIDI I/O: In/Out
    • Rackmountable: 3U
    • Depth: 9.5"
    • Width: 19"
    • Weight: 5.67 KG
