NICOLAUDIE STICK-CW4

https://www.mdrlighting.co.nz/web/image/product.template/55122/image_1920?unique=fd67dd8

NICOLAUDIESTICK-CW4

$ 1,150.00 1150.0 NZD $ 1,150.00 GST Excluded

$ 1,150.00 GST Excluded

Software Download

    This combination does not exist.

    Contact Us

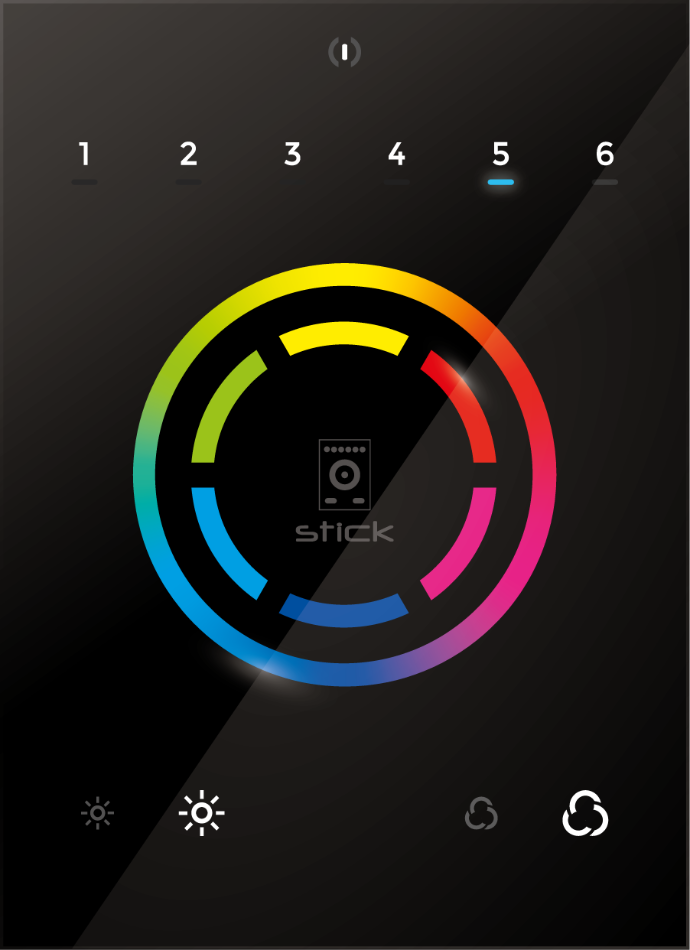

    The STICK-CW4 programmable lighting controller, for RGB and RGBW lighting, has been designed around a touch sensitive color wheel.

    The controller is USB or WiFi programmable from a PC or Mac using the ESA2 or ESA Pro 2 software. It is also possible to program it over WiFi using the on-site programming app Arcolis.

    Up to 36 scenes can be stored within the controller and directly recalled via six touch sensitive scene buttons. A button located in the center of the color wheel can be used to jump between scenes or reset a color change.


    FEATURES

    • New glass design
    • Color palette
    • Touch sensitive buttons
    • Touch sensitive wheel

    • 36 scenes, 1 zone
    • 1024 DMX channels
    • USB & WIFI connectivity
    • Clock and calendar

    • OEM customization
    • Windows/Mac software
    • iPhone/iPad/Android


    SPECIFICATIONS

    General

    • Dimensions: 106 x 146 x 10 mm
    • Weight: 200g
    • USB connection
    • WIFI connection
    • DMX channels: 1024

    Software

    • ESA2 PC / Mac
    • Esa Pro 2 PC / Mac
    • Remote control apps

    Stand alone

    • Number of scenes: 36
    • Number of zones: 1
    • Memory capacity (20 ch.) - 2729 steps
    • Memory capacity (512 ch.) - 124 steps
    • Power voltage: 5-15V DC
    • Power connector: Screw terminal or RJ45

    Triggering

    • Live control - Color / Dimmer / Saturation
    • Touch sensitive buttons: 12 + wheel
    • Port triggers: 8
    • Clock/calendar triggers: 100
    • WIFI integration

    Optional

    • AC/DC adapter - Ref. POWER4M
    • RJ45 to block board - Ref. RJ2BLOCK* See ESA Pro 2 manual for limitations with this model

    What's included

    • STICK-CW4 interface
    • USB cable
    • Power adapter (optional)
    • Software included
    • Mobile apps
