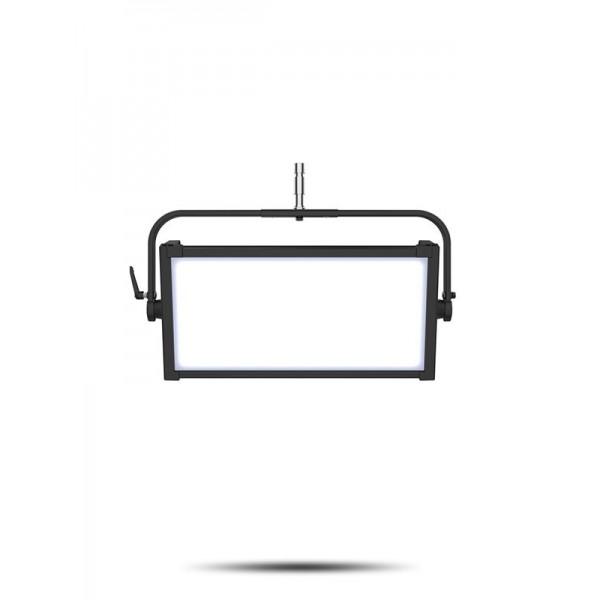

CHAUVET OnAir PANEL MIN IP Studio light panel, IP65

https://www.mdrlighting.co.nz/web/image/product.template/3935/image_1920?unique=6f8108a

ONAIRPANELMINIP

1,898.94 1898.94 NZD 1,898.94

1,898.94

Software Download

    This combination does not exist.


    onAir IP Panel Min is a small and rugged IP65, full-spectrum LED soft light capable of facing all of the elements, outdoors or in. Ready to go on-location, or squeeze into any studio space with a low-trim, onAir Panel Min IP also features a superior quality of white light with high CRI/TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard LED menu. Conveniently switch mounting options from the Ball Head Mount with included adapters for a Baby Pin Receiver or a threaded insert for attaching a clamp. The rugged build is designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. Its small size makes it super portable, and you can remove the main power supply for a 28 VDC input via 3-pin XLR to power the fixture from an external battery pack to add increased flexibility for all of your remote needs.

    FEATURES

    • Full-spectrum LED mini soft light panel style fixture for broadcast, film, and special events
    • IP65 rating for all weather use indoors or out.
    • Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
    • Virtual color wheel with color matched to popular gel colors
    • +/- Green adjustment and emulated red-shift via DMX or on-board control
    • RDM (Remote Device Management) and CRMX Wireless Control for added flexibility
    • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
    • Completely silent operation for use in studio applications
    • Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.
    • Easily switch mounting options from Clamp mount on a ball head to Baby Pin
    • Drop-in slot for accessories (sold separately)
    • Rugged design for years of rough use in the most extreme conditions.
    • Easy to use on-board control with full access to all the features of the fixture without the need for a dedicated controller.
    • USB port for fixture software updates
    • Compact design perfect for run-and-gun or indoor installation
    • 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack

    SPECIFICATIONS

    OPTICAL

    • Light source: 40 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy
    • Light source: 40 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy
    • Color temperature (range): 2800 to 8000 K
    • Color temperature (at max): 6367 K
    • CRI (3200 K): 94.9
    • Beam Angle: 94.9°
    • Field Angle: 149.4°
    • Lumens: 2,573
    • Illuminance: 47 lux @ 5 m
    • Selectable PWM : 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz



    DYNAMIC EFFECTS

    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Strobe Rate: 0 to 27 Hz
    • Independent color mixing: Yes
    • Color temperature presets: Yes
    • Dimming modes: 4
    • Dim Curves: 4
    • Built-in automated programs: Yes



    CONSTRUCTION / PHYSICAL

    • Dimensions w/ PSU: 10 x 5.62 x 4.29 in (254 x 143 x 109 mm)
    • Dimensions w/o PSU: 10 x 4.13 x 4.29 in (254 x 105 x 109 mm)
    • Weight w/ PSU: 6.2 lb (2.9 kg)
    • Weight w/o PSU: 4.2 lb (2 kg)
    • Exterior Color : Black
    • Housing material: Aluminum Alloy



    CONNECTIONS

    • Power connection: Edison plug (local) to Seetronic Powerkon IP65
    • Power input: Seetronic Powerkon IP65
    • Power Input: 28 VDC, 3-pin IP65 XLR
    • Cable Length (power): 5 ft (1.5 m)
    • Software Connection: USB



    CONTROL

    • Control Protocol: CRMX, RDM
    • DMX Channels: 1, 3, 4, 5, 6, 8, 10, 11, 15
    • Modes/Personalities: 9 personalities (1, 3, 4, 5, 6, 8, 10, 11, 15Ch1)



    ELECTRICAL

    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power and Current: 49 W, .419 A @ 120 V, 60 Hz
    • Power and Current: 52 W, .260 A @ 208 V, 60 Hz
    • Power and Current: 57 W, .246 A @ 230 V, 50 Hz



    CERTIFICATIONS / QUALIFICATIONS

    • CE, MET, FCC,
    • IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
    • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)



    WHAT'S INCLUDED

    • onAir IP Panel Min IP
    • Seetronic Powerkon IP65
    • mounting hardware



    OPTIONAL ACCESSORIES

    • onAir Panel Min IP Barndoor
    • onAir Panel Min IP 30deg Honeycomb
    • onAir Panel Min IP 60deg Honeycomb
    • Professional Clamps: CTC-50HC, CTC-50HCN
    • Seetronic Powerkon power linking cables
    • 5-pin DMX Cables
