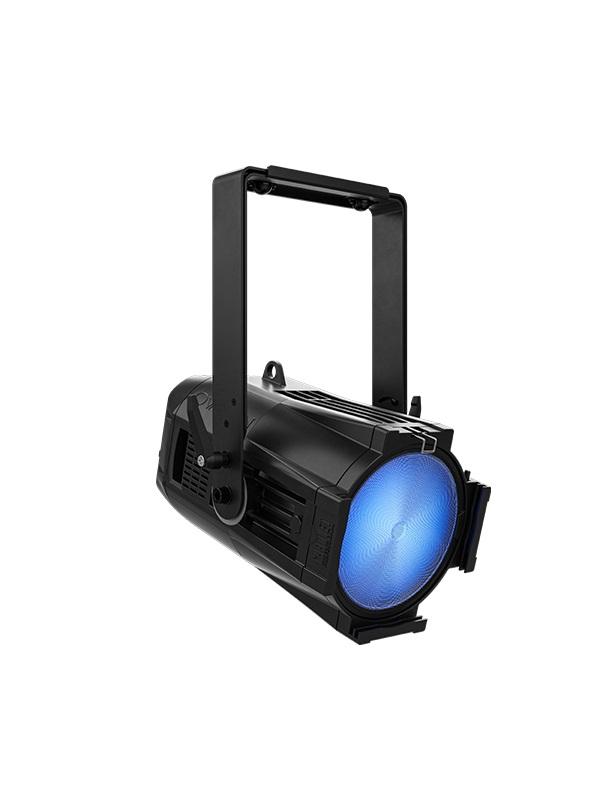

CHAUVET Ovation REVE P-3 IP Full Colour High Power LED Theatre Par

Handle it all, from a narrow spot to a wide flood. Four interchangeable lenses, one unrivaLED light engine. Ovation Rêve P-3 IP is our brightest IP65-rated multi-color full-spectrum-white LED PAR. An outdoor fixture with unsurpassed power and quality of light that incorporates all the advancements of our Ovation Rêve RGBAM LED source, and offers the versatility of Narrow, Medium, Wide and Very Wide lenses. Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS. Adjustable PWM (Pulse Width Modulation) avoids on camera flicker. Indoors or out, a powerful instrument for theatrical, house of worship, special events, rental and production use.

FEATURES

• Full-spectrum LED PAR lighting fixture for rental/production use as well as special event and theatre.

• Fully IP65 rated for seasonal use indoors or out

• Interchangeable Narrow, Medium, Wide and Very Wide lenses.

• USB port for fixture software updates

• Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS

• +/- Green adjustment and emulated red-shift via DMX or on-board control

SPECIFICATIONS

OPTICAL

• Light Source: 80 LEDs (10 red, 10 green, 10 blue, 20 amber, 30 mint) 4.4 to 7.8 W, (2.4 A), 50,000 hours life expectancy.
• Color Temperature (range): 2800 to 8000 K
• Color Temperature (at full): 5399 K
• Beam Angle (Narrow Lens): 11.9°
• Beam Angle (Medium Lens): 25.6°
• Beam Angle (Wide Lens): 29.3°
• Beam Angle (Very Wide Lens): 43.5°
• Field Angle (Narrow Lens): 20.8°
• Field Angle (Medium Lens): 37.8°
• Field Angle (Wide Lens): 43.1°
• Field Angle (Very Wide Lens): 87.9°
• Lumens (Narrow Lens) : 10,051
• Lumens (Medium Lens) : 10,079
• Lumens (Wide Lens) : 9,936
• Lumens (Very Wide Lens) : 8,380
• Illuminance (Medium Lens) : 1,950 lux @ 5 m
• Illuminance (Wide Lens) : 1,475 lux @ 5 m
• Illuminance (Very Wide Lens) : 401 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 25 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: Dimensions: 18.82 x 11.81 x 8.27 in (478 x 300 x 210 mm)
• Weight: 21.4 lb. (9.8 kg)
• Exterior Color: Black
• Housing Material: Aluminum diecast
• Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 1, 4, 5, 7, 11, 13ch1, 13ch2, 17 or HSV
• Modes/Personalities: 9 personalities (1, 4, 5, 7, 11, 13ch1, 13ch2, 17, HSV)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V;
• Power and Current: 274 W, 2.31 A @ 120 V, 60 Hz
• Power and Current: 267 W, 1.38 A @ 208 V, 60 Hz
• Power and Current: 265 W, 1.25 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC, UKCA
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• Ovation Reve P-3 IP
• Seetronic Powerkon power cord
• Narrow, Medium, Wide, Very Wide Lens
• Gel Frame Holder

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• TRUE1 Style Power Extension Cables
• 5-pin IP65 DMX Cables
• RDM2go
• USB Jump Drive
• Ovation F 7.5” Barndoor V2
