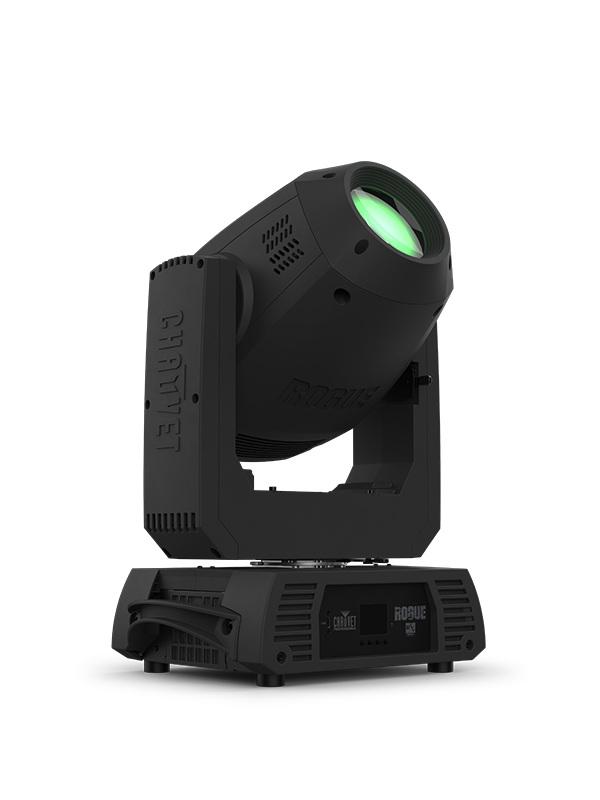

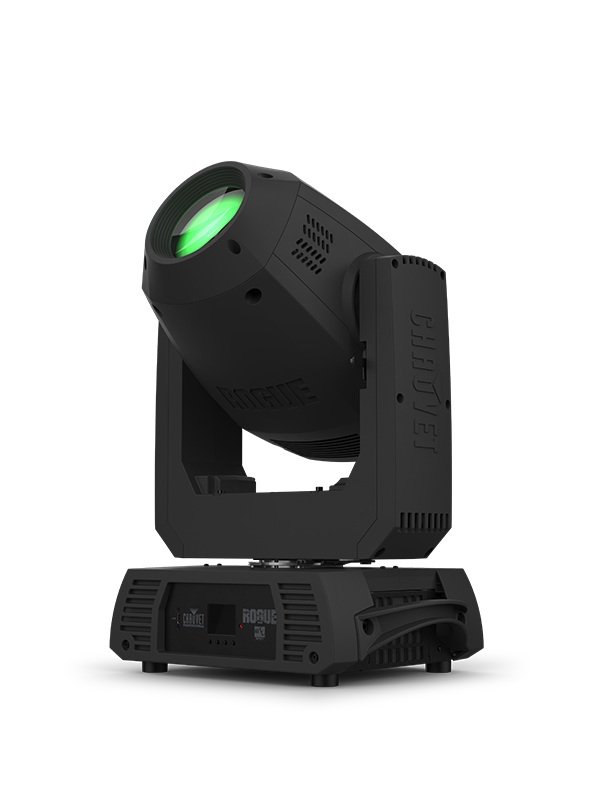

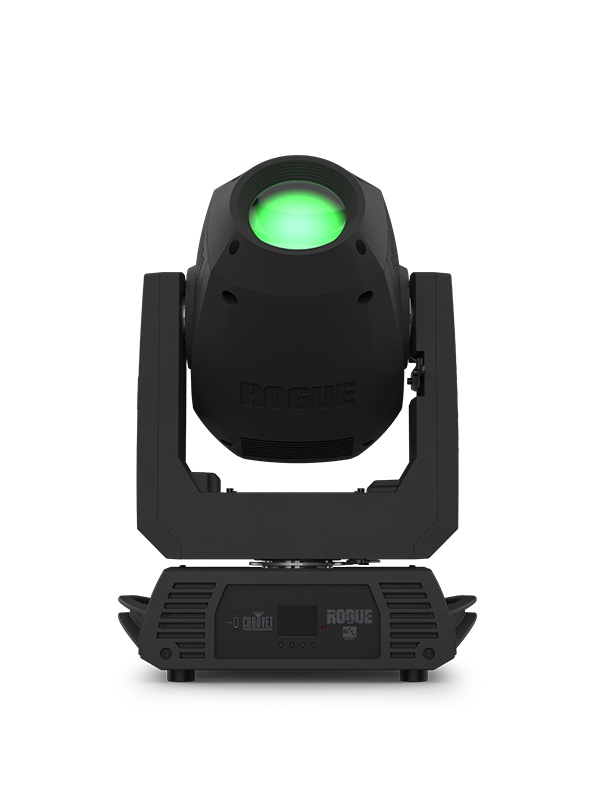

CHAUVET Rogue R1E Spot

Rogue R1E Spot is a compact, lightweight moving yoke spot that delivers intense output from its 200W LED light engine and a fully featured wheelhouse: 3-facet rotating prism for stunning aerial effects; motorized iris and frost for beam shaping; dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; and a color wheel with eight brilliant colors + white + split colors. Its 15° beam angle delivers crisp gobo projections and a selectable LED max output setting enables matching brightness with legacy Rogue R1X Spots in your rig.

FEATURES

• A fully featured compact and light weight moving yoke spot fixture with an Intense 200 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, and a color wheels.

• 16-bit dimming of master dimmer for smooth control of fades

• Perfect gobo morphing between gobo wheels

• Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel.

• Iris, 3-facet prism, and frost for beam control

• True 1 compatible power input/output connections for power linking.

• 3- and 5-pin DMX input/output connections

• RDM enabled for remote addressing and trouble shooting.

• Selectable LED maximum output to match legacy Rogue R1X Spots

• Selectable PWM settings to maintain flicker-free operation on camera.

• Simple and complex DMX channel profiles for programming versatility

SPECIFICATIONS

Optical

• Light Source: 1 LEDs (CW) 200 W, (3.2 A), 7423 K, 50,000 hours life expectancy
• Color Temperature (at full): 7423 K
• Front lens diameter: 90mm
• CRI: 68
• Beam Angle: 15.3°
• Field Angle: 18.7°
• Cutoff Angle: 20.3°
• Lumens – Source: 17,900
• Lumens – Output: 12,210
• Illuminance (total): 9,021 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 270° pan/270°, 180°, 90° tilt
• Colors: 8 + white, split colors, continuous scroll at variable speeds
• Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating); size: 20 mm (outside), 16 mm (image), 1.5 mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Focus: Motorized
• Iris: Motorized
• Prism: 3 Facets, motorized, rotating
• Strobe Rate: 0 to 22 Hz
• Move in Black: Yes

Construction / Physical

• Dimensions (single unit): 14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm) 
• Weight (single unit): 31.2 lb (14.2 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel
• Software update: USB-C

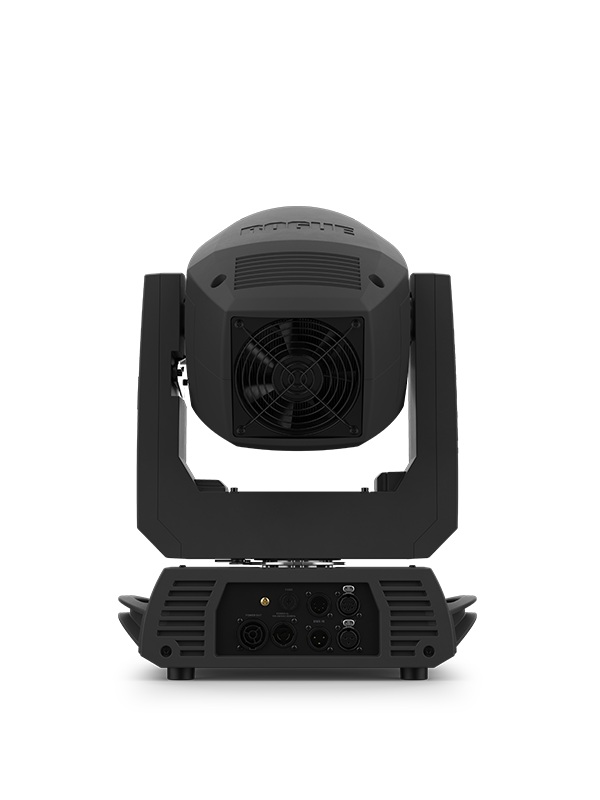

Connections

• Power Connection: Edison (local) plug to Seetronic PowerKon
• Power Input: Seetronic PowerKon
• Power Output: Seetronic PowerKon
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: DMX, RDM
• DMX Channels: 16 or 19
• Modes/Personalities: 2 personalities (16, 19)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V
• Power and Current: 315 W, 2.63 A @ 120 V, 60 Hz
• Power and Current: 306 W, 1.50 A @ 208 V, 60
• Power and Current: 303 W, 1.36 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC, UKCA
• IP Rating: IP20, dry location

What's Included

• Rogue R1E Spot
• Seetronic PowerKon power cord
• 2 140D Omega brackets with mounting hardware

Optional Accessories

• Professional Clamps: CTC-50HC, CTC-50HCN
• TRUE1 Power Extension Cables
• DMX Cables
• Flight Cases
• CP Rack
