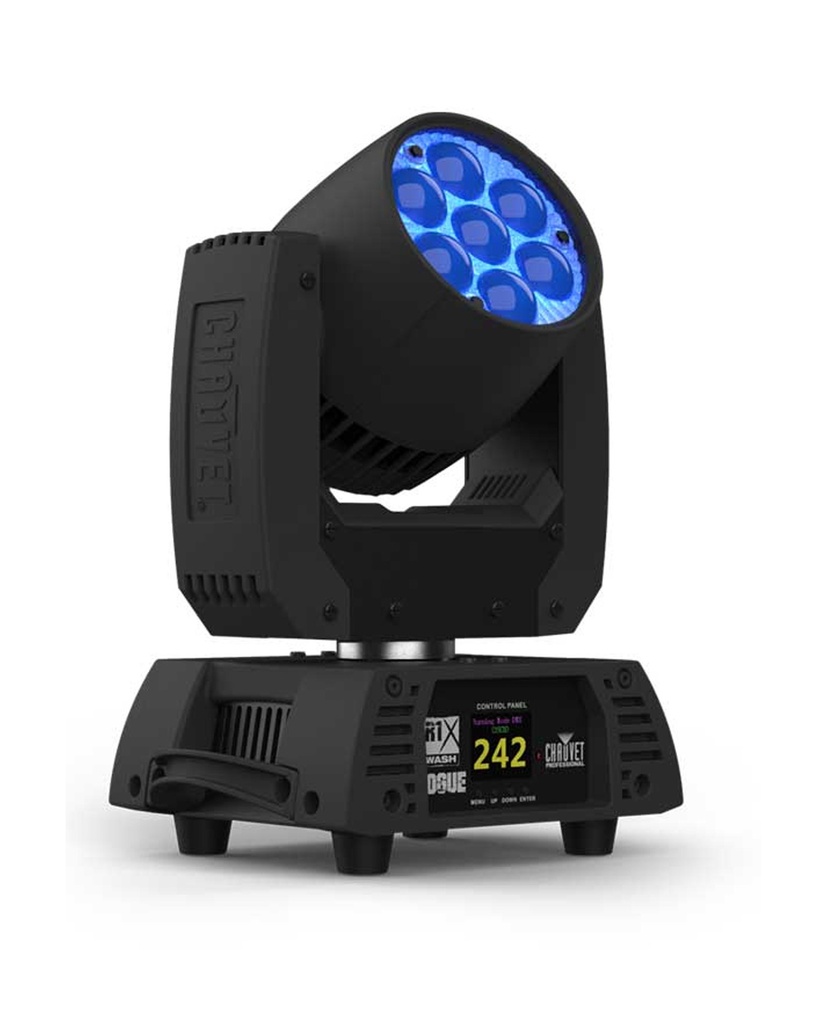

CHAUVET Rogue R1X Wash moving wash head
Rogue R1X Wash distinguishes itself by offering a combination of performance features unique to its price class. Powered by seven RGBW 25 W quad-LEDs, this bright and versatile moving wash zoom fixture features a unique “bubble” lens design for excellent color rendering and stunning visual effects. Other standout features include an incredible 7.9° to 62.7° zoom range, incredibly fast and smooth pan and tilt movements, simple and complex DMX channel profiles, plus 3-pin and 5-pin DMX connectors. Versatility, value and performance make this fixture a welcome addition to any touring rig or permanent installation.
FEATURES
Fully featured RGBW LED yoke wash fixture with zoom
16-bit dimming of master dimmer as well as individual colors for smooth control of fades
7 RGBW LEDs, 25 W each
3- and 5-pin DMX input/output connections
Unique lens design for excellent color blending
Fast, smooth pan and tilt movement
RDM enabled for remote addressing and trouble shooting
Selectable LED maximum output to match legacy Rogue R1 Washes
6 distinct dimming modes for advanced control
Omega mounting bracket, fits all Rogue and Maverick fixtures
Easy to read OLED display with simple, effective menu options
Simple and complex DMX channel profiles for programming versatility
OPTICAL
- Light Source: 7 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
- Color Temperature (range): 2800 to 10000 K Beam Angle: 8° to 30°
- Beam Angle: 8° to 30°
- Field Angle: 11° to 48°
- Zoom Angle: 11° to 48°
- Lumens – Source: 4,000
- Lumens – Output: 2,900
- Illuminance (11°): 3,280 lux @ 5 m
- Illuminance (48°): 293 lux @ 5 m
- PWM Frequency: 1200 Hz
DYNAMIC EFFECTS
- Pan and Tilt: 540°/230°
- Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Motorized
- Strobe Rate: 0 to 20 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Recall Custom Programs: No
CONSTRUCTION / PHYSICAL
- Dimensions: 7.36 x 10.43 x 13.94 in (187 x 265 x 354 mm)
- Weight: 13.6 lb (6.2 kg)
- Exterior Color: Black
- Housing Material: High-impact flame-retardant polymer
CONNECTIONS
- Power Connection: Edison (Local) plug to Neutrik® powerCON®
- Power Input: Neutrik® powerCON®
- Power Output: Neutrik® powerCON®
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: DMX, RDM
- DMX Channels: 14, 15, 19 or 21
- Modes/Personalities: 4 personalities (14, 15, 19, 21)
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 10 units @ 120 V; 17 units @ 208 V; 20 units @ 230 V
- Power and Current: 157 W, 1.35 A @ 120 V, 60 Hz
- Power and Current: 154 W, 0.76 A @ 208 V, 60 Hz
- Power and Current: 164 W, 0.67 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE, MET, FCC
- IP Rating: IP20, dry location
WHAT'S INCLUDED
- Rogue R1X Wash
- Neutrik® powerCON® power cord
- Omega bracket with mounting hardware
OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
Neutrik® powerCON® cables
DMX Cables
Flight Case: CP6CASER1W
