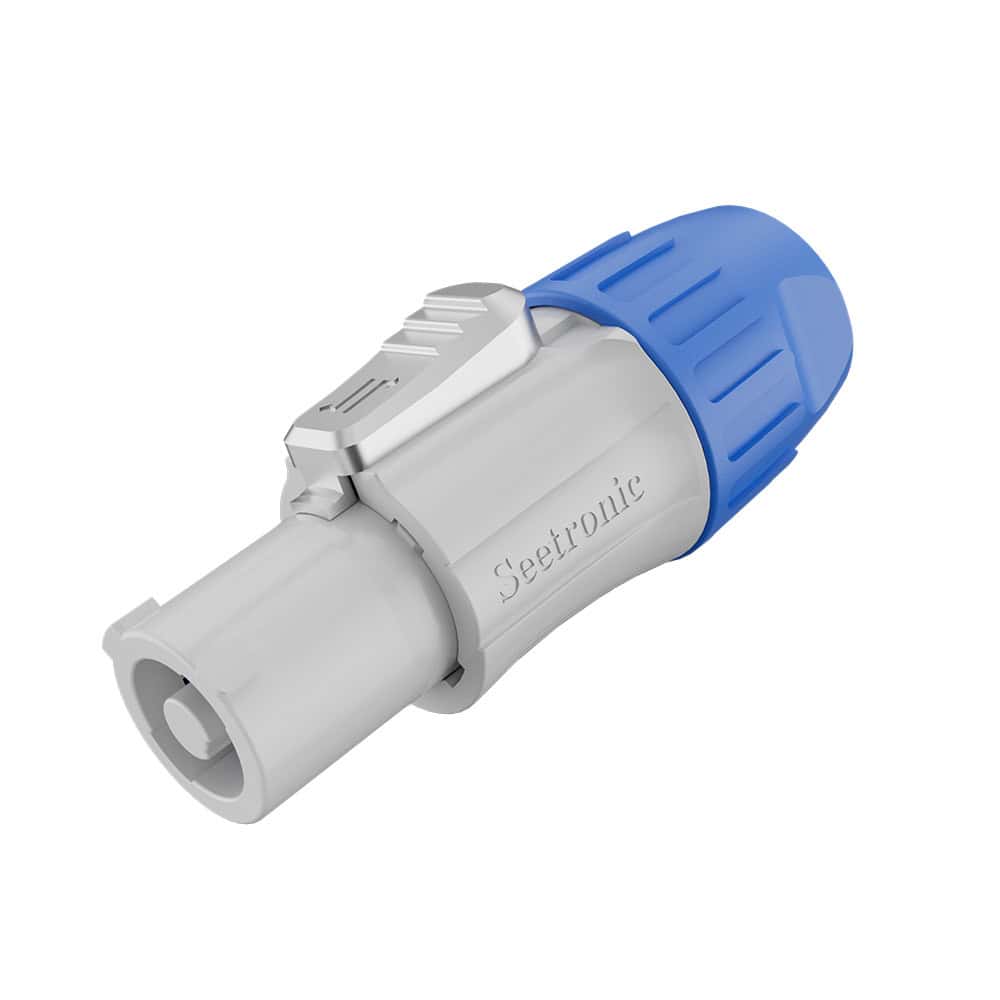

Seetronic PowerCon Cable Plug (Power-Out)
SAC3FCB
The SAC3FCB is a lockable three-core power-out cable connector designed for indoor applications. Known for its reliable connection system, this connector ensures secure and stable power transmission for a variety of uses.
FEATURES
- Compatibility: Perfectly compatible with LUMINEX and BARNFIND equipments.
- Lockable Connection: Features a fast and efficient locking mechanism with a firm latch lock that prevents accidental disconnections.
- High Current Capacity: Rated at 20A with a 250V AC power rating, suitable for high-current applications.
- Certifications: Holds several important certifications including UL (E359036), TUV RH Certificate (TUV RH NO.R 50660463 0001), TUV, and CQC, ensuring compliance with international safety and quality standards.
- Compatibility: Designed to match with SAC3MCB plug or SAC3MPB/SAC3MPB-M socket, providing flexibility in usage.
- Non-Waterproof: Intended for indoor use, offering reliability in controlled environments.
The Seetronic SAC3FCB is a professional 3-core power-out (B-type) lockable power cable connector, for indoor installations. Compatible with the Seetronic power connector ecosystem and designed as a cost-effective alternative to Neutrik powerCON.
Used for AC power distribution on touring stages, in temporary event power runs, touring racks, entertainment lighting rigs, and permanent theatrical and architectural installations. The locking mechanism prevents accidental disconnection under load.
Rated to 250V/20A (UL and VDE), suitable for single-phase AC applications. The robust die-cast shell and strain-relief system ensure long service life even under intensive touring conditions.
| Parameter | Specification |
|---|---|
| Connector Type | 3-Core Lockable Power Cable Connector |
| Direction | Power-Out (B-type) |
| Rated Voltage | 250V AC |
| Rated Current | 20A |
| Standards | UL 250V/20A, VDE 250V/20A, IEC60320-1 250V/16A |
| Conductors | 3-core (L, N, E) |
| Locking | Twist-lock |
| Temperature Range | −30°C to +80°C |
