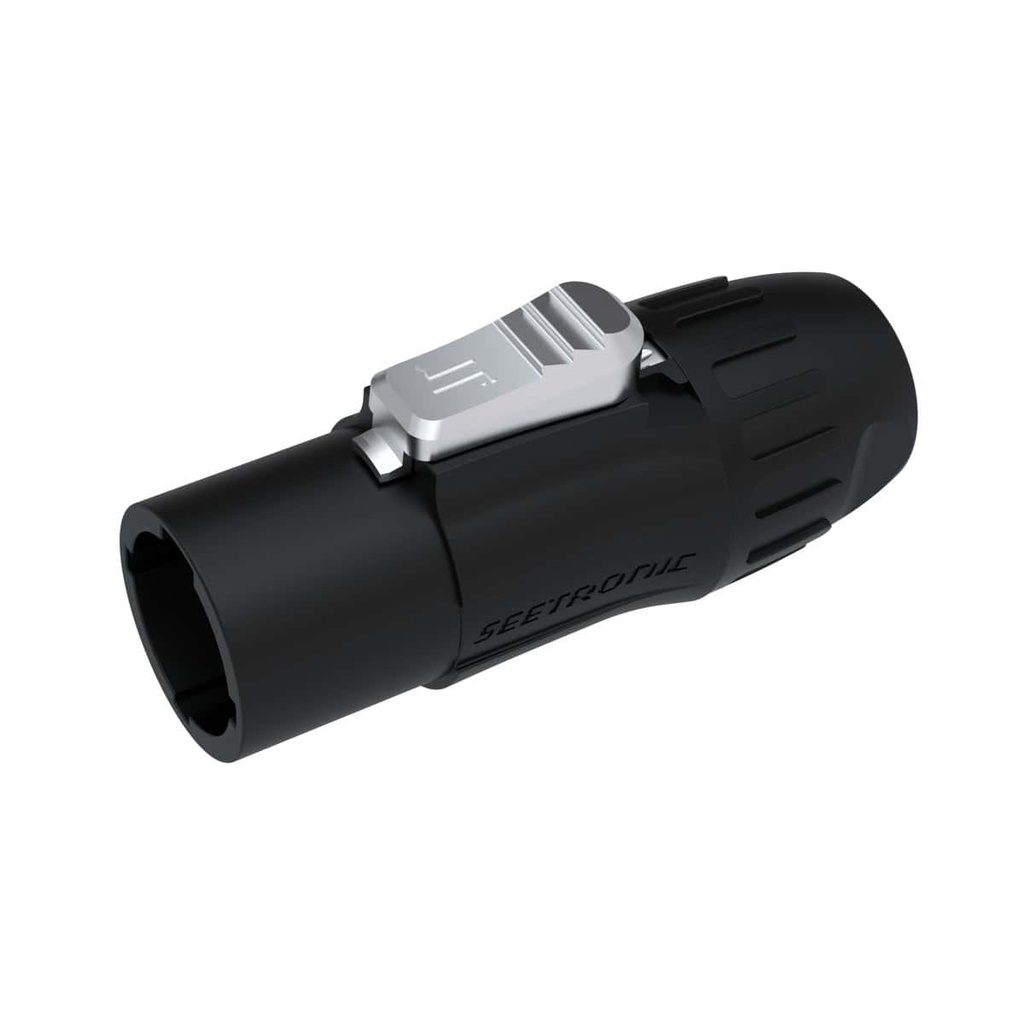

Seetronic PowerCon IP65 Cable Plug
SAC3MX
The Seetronic SAC3MX is a professional 3-core power-out (B-type) lockable power cable connector, rated IP65 for outdoor and harsh environments. Compatible with the Seetronic power connector ecosystem and designed as a cost-effective alternative to Neutrik powerCON.
Used for AC power distribution on touring stages, in temporary event power runs, touring racks, entertainment lighting rigs, and permanent theatrical and architectural installations. The locking mechanism prevents accidental disconnection under load.
Rated to 250V/20A (UL and VDE), suitable for single-phase AC applications. The robust die-cast shell and strain-relief system ensure long service life even under intensive touring conditions.
| Parameter | Specification |
|---|---|
| Connector Type | 3-Core Lockable Power Cable Connector |
| Direction | Power-Out (B-type) |
| Rated Voltage | 250V AC |
| Rated Current | 20A |
| Standards | UL 250V/20A, VDE 250V/20A, IEC60320-1 250V/16A |
| Protection Rating | IP65 |
| Conductors | 3-core (L, N, E) |
| Locking | Twist-lock |
| Temperature Range | −30°C to +80°C |
