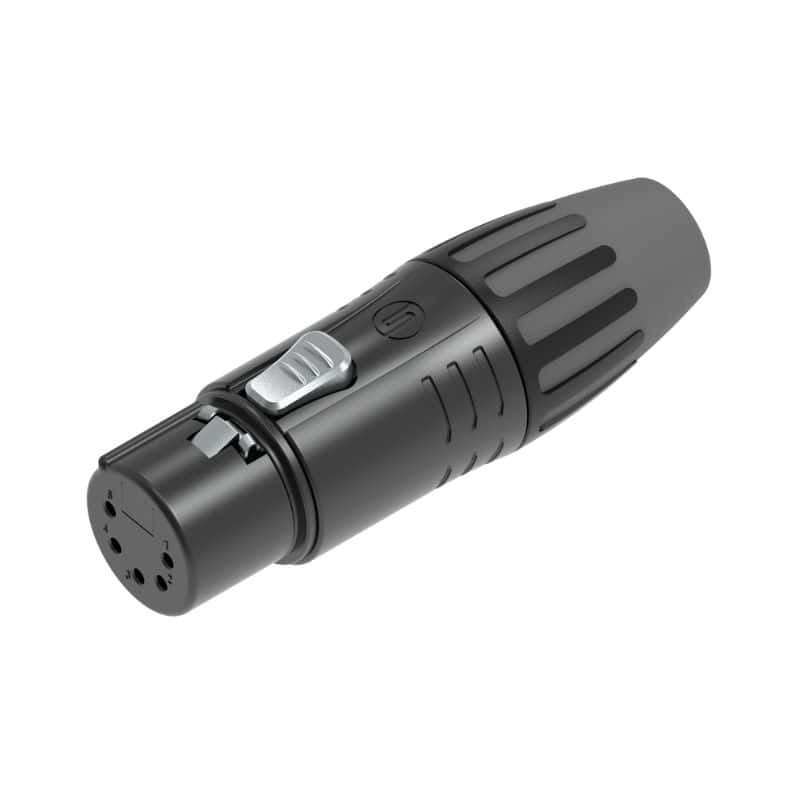

Seetronic XLR 5-Pin Female Cable Plug Black Gold
SCMF5-BG
5-core XLR female cable connector
The Seetronic SCMF 5-BG is a high-quality 5-core XLR female cable connector ideal for professional audio, lighting, and other applications requiring a reliable connection. Featuring a black plated housing and gold plated contacts, this connector guarantees optimal signal transfer and long-lasting performance.
FEATURES
- Robust Design: Internal thread design within the metal housing ensures stability and durability in any environment.
- Versatile Cable Management: Two cable clamps accommodate different cable diameters (3.5-6mm & 6-8mm) for a secure fit.
- Space-Saving Solution: Compact design without a ring maximizes space efficiency.
- Easy Identification: Color-coded boots are available for quick and easy circuit identification.
- Enhanced Cable Protection: The boot incorporates a polyurethane sealing sleeve, minimizing cable strain caused by bending.
The Seetronic SCMF5-BG is a M Series standard 5-pin XLR female cable plug. Built with a Black zinc alloy housing and Gold contacts, it delivers professional audio signal transmission for microphone, line-level, DMX, and AES/EBU applications.
Perfect for microphone cables, multicore looms, DMX lighting control leads, intercom cables, and balanced line-level audio connections in stage, broadcast, and installed AV environments.
The rugged construction, reliable contact tension, and positive latch (on female connectors) ensure consistent connectivity across thousands of mating cycles. Gold contacts deliver lower contact resistance and improved corrosion resistance compared to standard nickel.
| Parameter | Specification |
|---|---|
| Connector Type | XLR 5-Pin Female Cable Plug |
| Series | M Series |
| Housing | Black zinc alloy |
| Contacts | Gold plated, 5-pole |
| Cable OD | 3–9 mm |
| Mating Cycles | > 5,000 |
| Temperature Range | −20°C to +70°C |
| Standards | IEC 61076-2-103 |
