5-core XLR male cable connector
SCMM5-BG
SCMM5-BG

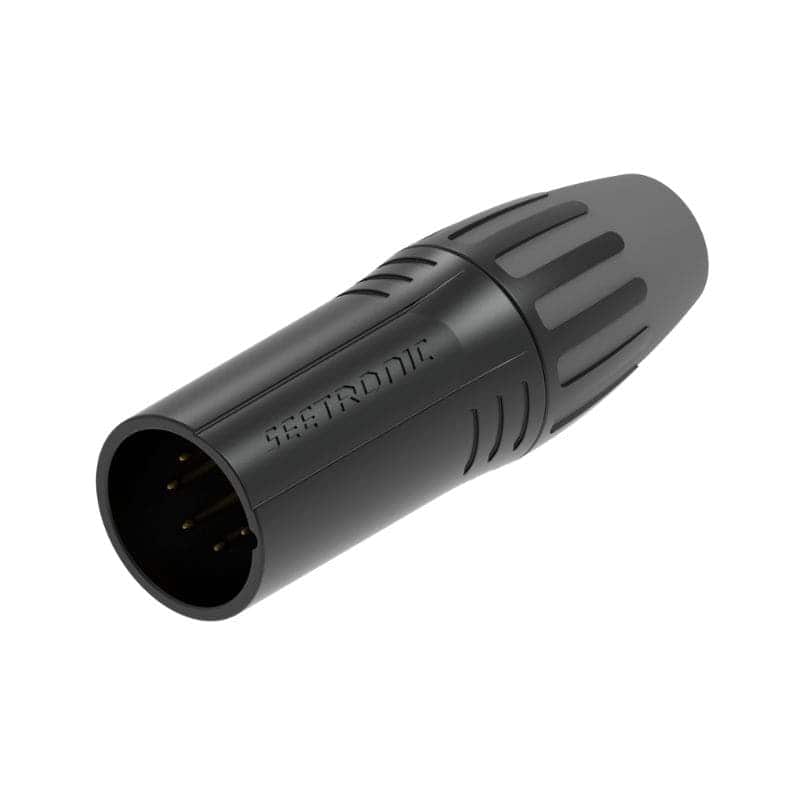

The Seetronic SCMM 5-BG is a robust and reliable 5-core XLR male cable connector designed for professional audio and lighting applications. Featuring a sleek black plated housing and gold-plated contacts, it ensures optimal signal transfer and corrosion resistance.
FEATURES
- Durable Construction: Internal thread design within the metal housing provides exceptional strength and stability, withstanding gravity in any environment.
- Versatile Cable Management: Two cable clamps accommodate different cable diameters (3.5-6mm & 6-8mm) for secure and strain-free connections.
- Space-Saving Design: The no-ring design offers a compact form factor, ideal for tight spaces.
- Color Coding Options: Colored boots enable easy identification and organization.
- Enhanced Cable Protection: A polyurethane sealing sleeve within the boot safeguards cables from bending pressure.
SPECIFICATIONS
- Connection Type: XLR
- Gender: Male
- Rated Current: 7.5A per contact
- Rated Voltage: <50V
- Contact Resistance: ≤ 3 mΩ
- Capacitance Between Contacts: ≤ 7 pF
- Insulation Resistance: > 10 GΩ (initial)
- Cable O.D.: 3.5-8mm (depending on clamp)
- Protection Class: IP40
- Temperature Range: -30°C ~ +80°C
- Standards: IEC 61076-2-103
The SCMM 5-BG is a high-quality XLR connector designed for professionals who demand reliability and performance.
