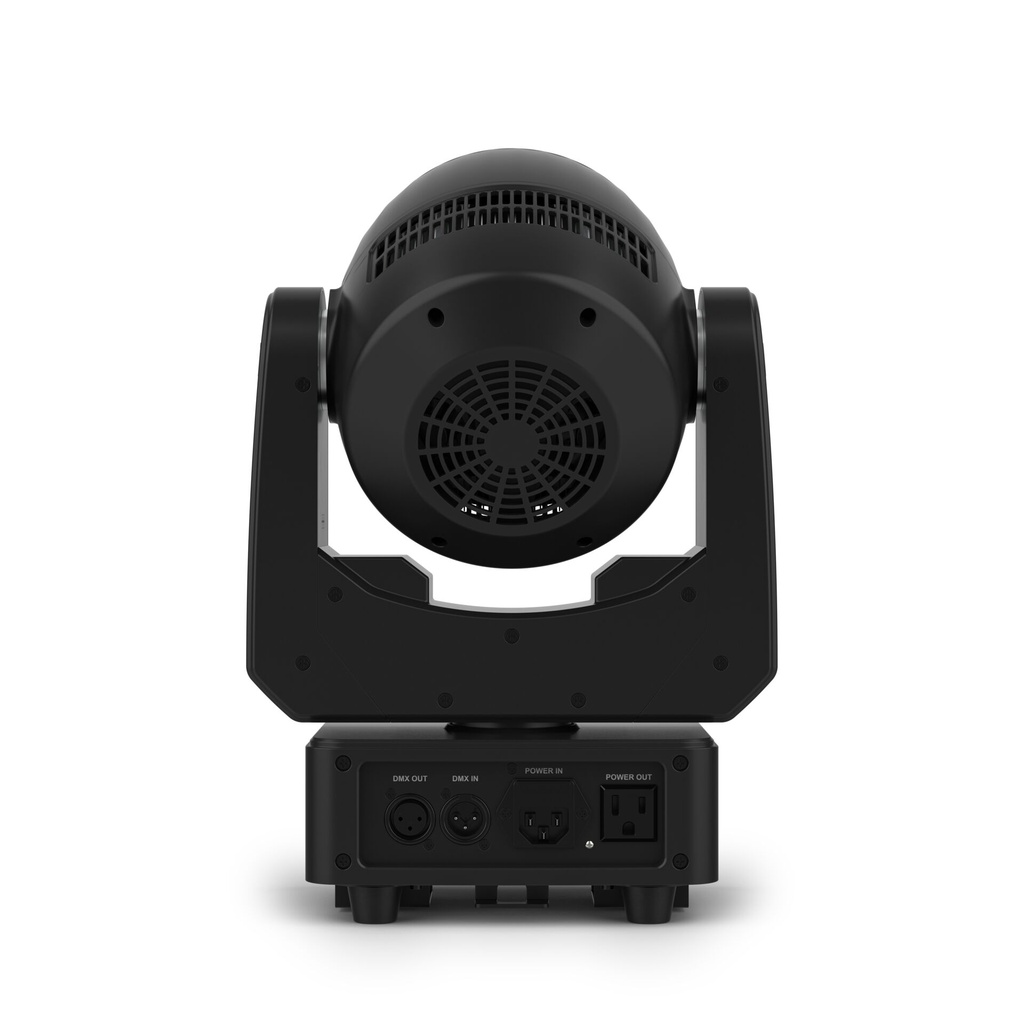

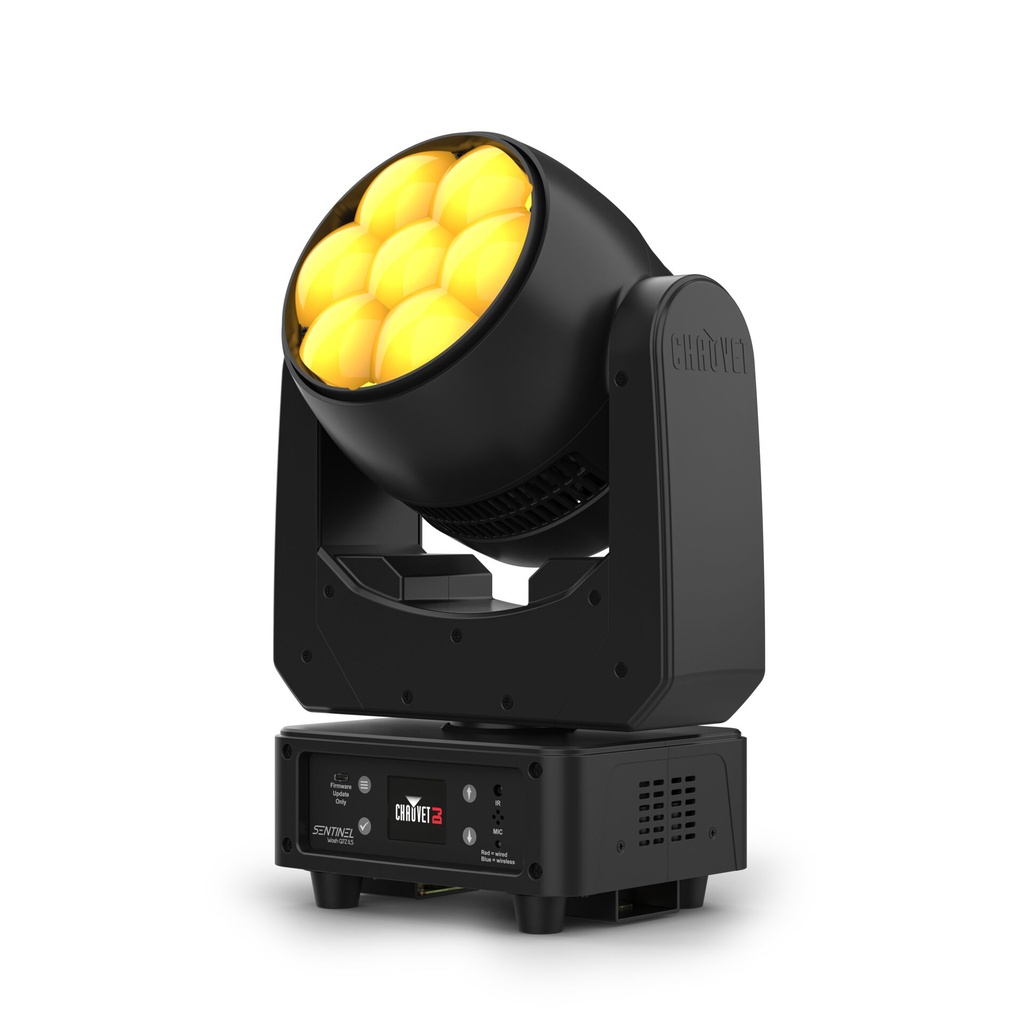

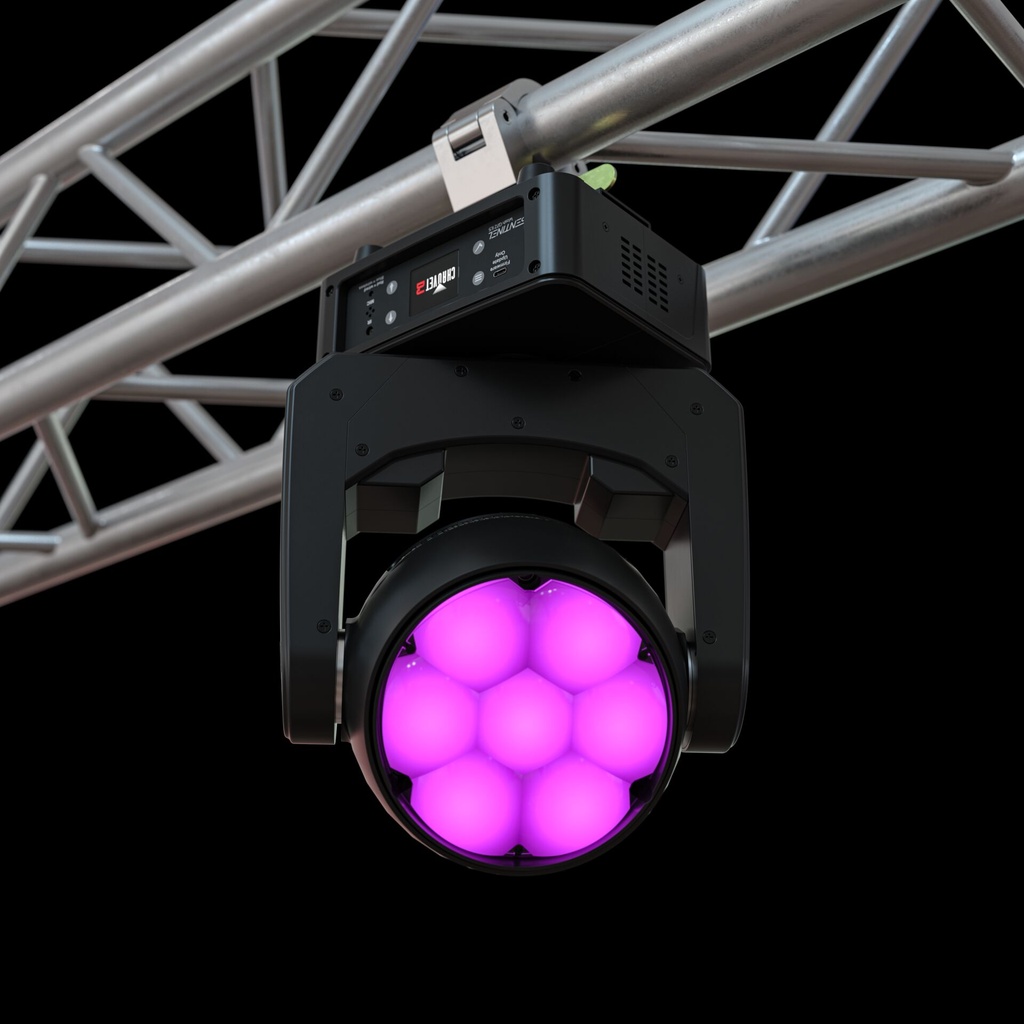

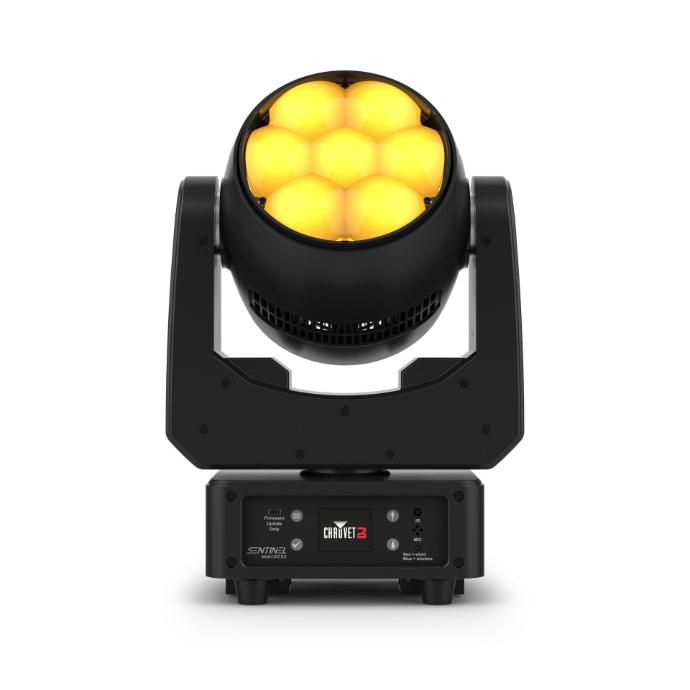

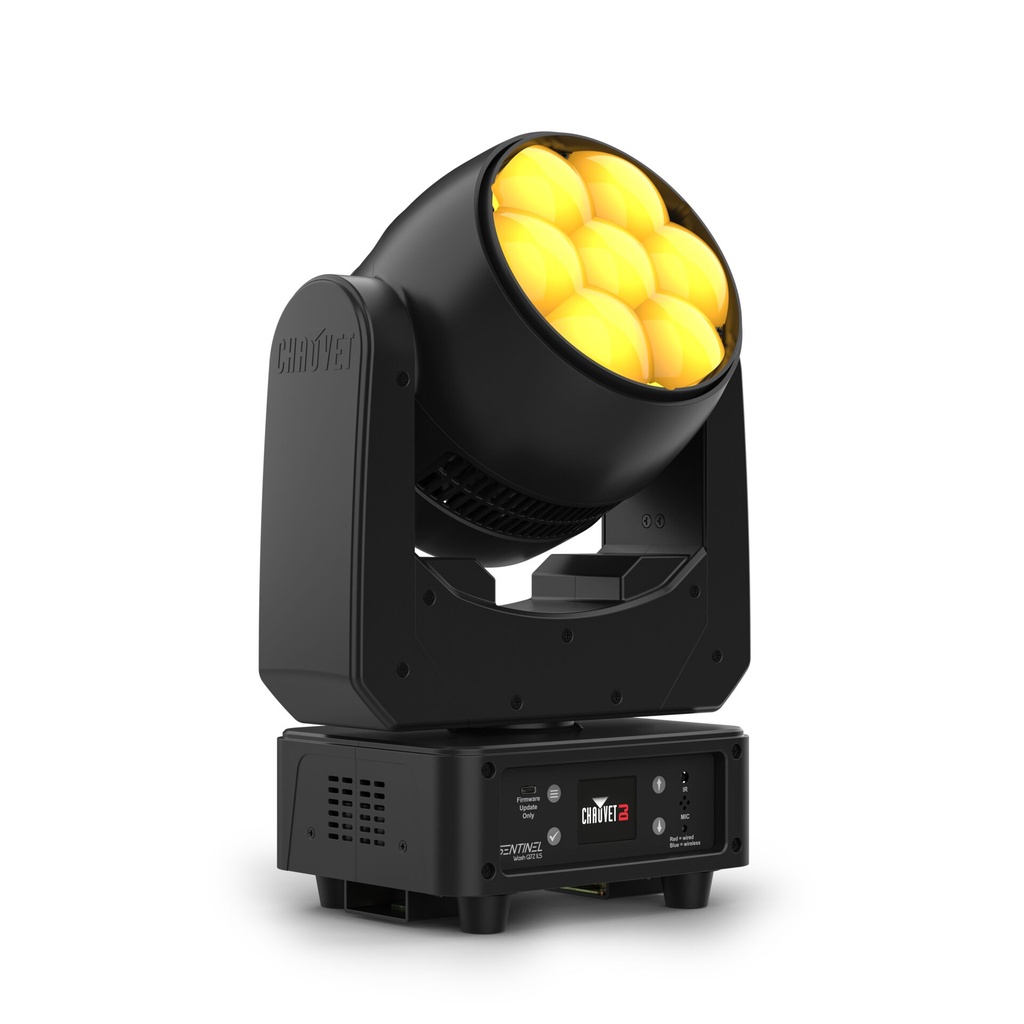

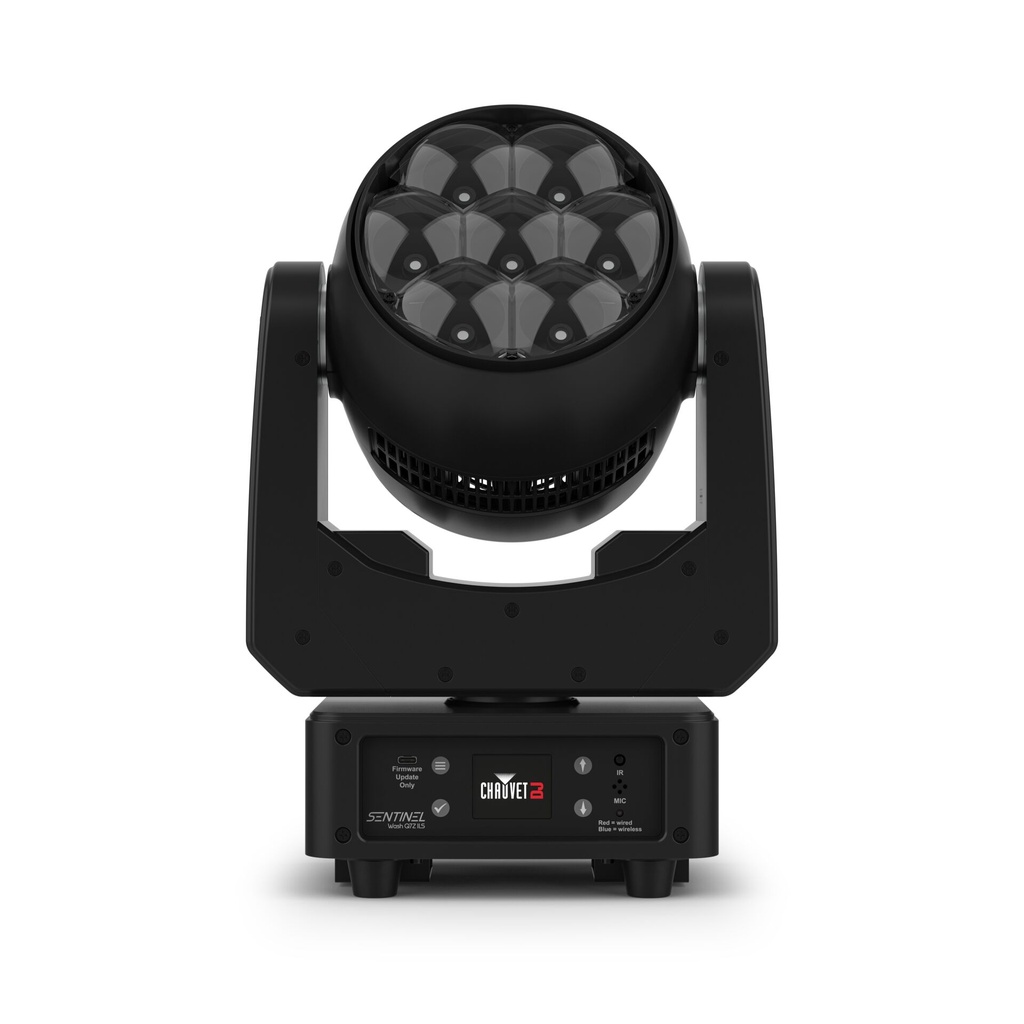

CHAUVETSentinel Wash Q7Z ILS
With its motorized zoom, ILS compatibility, and built-in D-Fi transceiver, Sentinel Wash Q7Z ILS seamlessly shifts from narrow beams to wide washes, instantly coordinates with different ILS fixture types, and offers the convenience of wireless DMX or ILS control. Mix saturated RGBW colors with a compact LED moving head built for both short- and long-throw applications that delivers smooth motion, easy control, and a Totem mode that keeps all the excitement focused on the dance floor.
FEATURES
Compact moving head wash fitted with 20 W quad-color RGBW LEDs
Motorized zoom for short-throw or long-throw applications
Built-in DFI transceiver communicates DMX or ILS signals wirelessly
Easy navigation and access all functions directly from the full-color LCD display
ILS compatibility for use in the ILS ecosystem
Totem Mode keeps the moving head focused on the dance floor
Save time running cables and extension cords by power linking multiple units
Fits best in the CHS-40 VIP Gear Bag
- DMX Channels:9 or 14
- DMX Connectors:3-pin XLR
- Pan and Tilt:540°/225°
- Pan and Tilt Ranges:180°, 360°, 540° pan/90°, 180°, 225° tilt
- Light Source:7 LEDs (quad-color RGBW) 140 W total (5 A), 50,000 hours life expectancy
- Strobe Rate:0 to 20 Hz
- Zoom Angle:5° to 27°
- Power Linking:6 units @ 120 V; 12 units @ 230 V
- Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current:148 W, 1.2 A @ 120 V, 60 Hz
- Power and Current:146 W, 0.7 A @ 230 V, 50 Hz
- Weight:13.8 lb (6.3 kg)
- Size:14.2 x 10 x 7.41 in (362 x 255 x 188 mm)
- Approvals:CE, RoHS, FCC
- Illuminance Narrow: (5°) 30,537 lux @ 2m
- Illuminance Wide: (27°) 3,390 lux @ 2m
- Cable Length: 5 ft (1.5 m)
- Optional Controllers: IRC-6, ILS Command
What's Included
- Sentinel Wash Q7Z ILS
- Power cord
- Hanging bracket
- Quick Reference Guide
