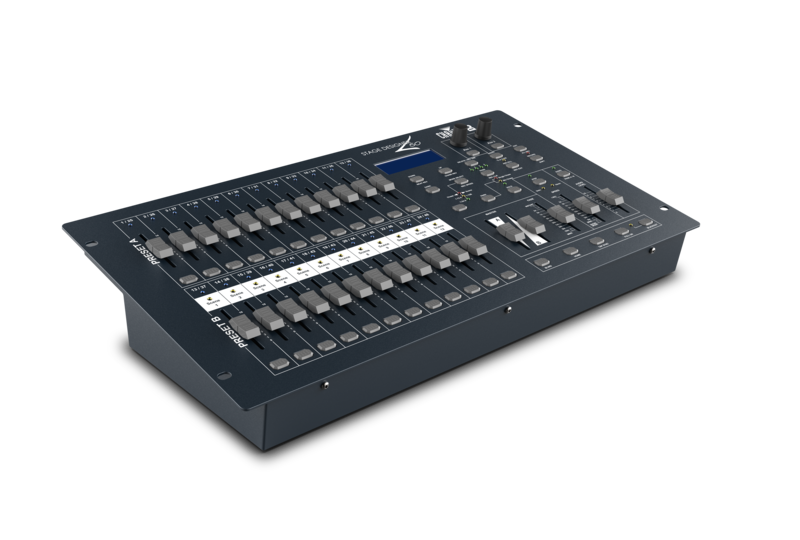

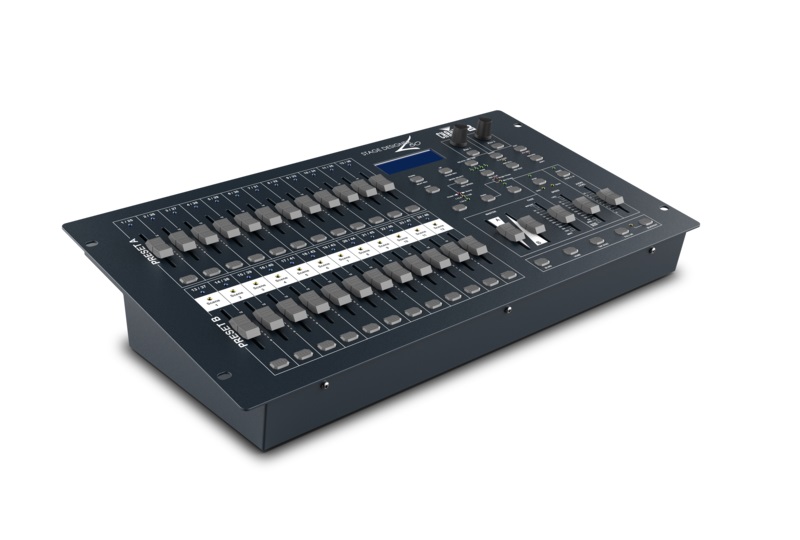

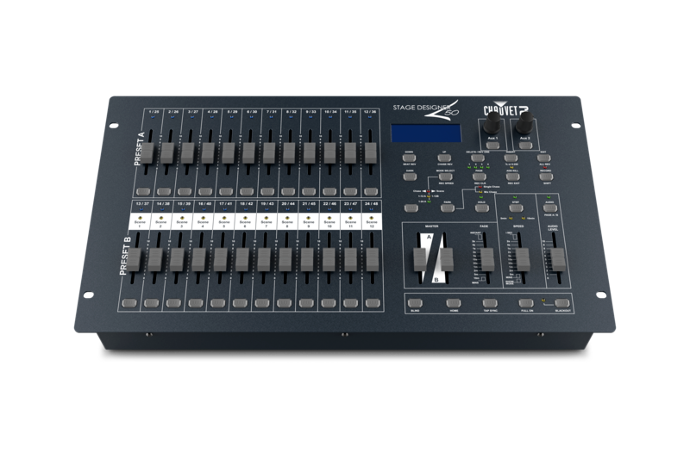

CHAUVET Stage Designer™ 50, 48CH DMX Controller


367.54 367.54 NZD 367.54


Software Download

    This combination does not exist.

    The Stage Designer™ 50 takes the size of a 24-channel dimming console and the functionality of a 48- channel console and combines the two into one powerful dimming unit. The Stage Designer™ 50 has up to 8 pages with 12 scenes each and 96,000 programmable steps. The console allows the user to re-assign channels as needed and allows for MIDI input.


    • 48-channel DMX-512 dimming console
    • 8 pages with 12 scenes each yields 48 total playback faders (simultaneous playback)
    • 96,000 programmable steps
    • 2 programmable aux buttons
    • Adjustable chase and fade times
    • Re-assignable channels
    • 3-pin and 5-pin DMX connections
    • Built-in cross fader, dark and kill buttons
    • MIDI in, out and thru (with file dump)
    • Direct audio input
    • Sequential linking or simultaneous playback of chases
    • Override chases on the fly
    • Beat-activation, tap sync, auto run, midi in/out
    • 6-space (6U) rack mount
    • Polarity selector


    • Blackout Controller (CH-X)



    • Power: 12VDC 500mA (external power supply: 100-240VAC 50/60Hz)
    • Weight: 9.9lbs (4.5kg)
    • Size: 19in x 10.5in x 3.5in / 483mm x 267mm x 89mm
