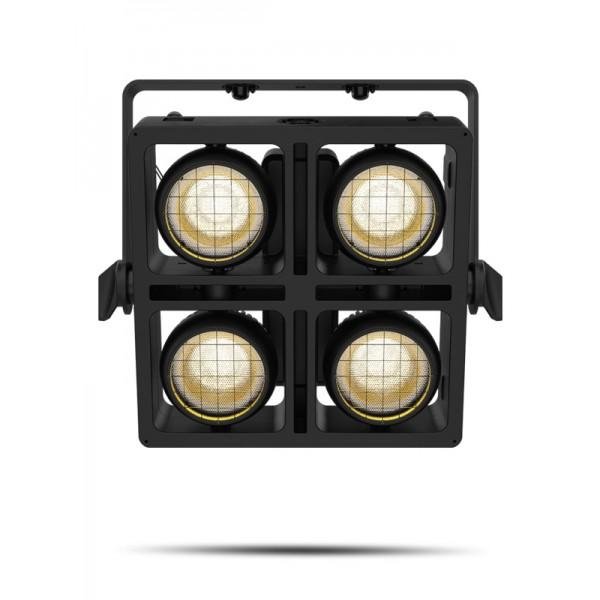

CHAUVET Strike Array 4 - 4 x 100W led blinder IP65, with red shift

https://www.mdrlighting.co.nz/web/image/product.template/3961/image_1920?unique=6a3a36f

STRIKEARRAY4

2,739.83 2739.83 NZD 2,739.83 GST Excluded

2,739.83 GST Excluded

Software Download

    This combination does not exist.


    STRIKE Array 4 is an electrifying outdoor-ready audience blinder with four high-power 100W warm white LEDs housed in independently focusable pods. An emulated “amber shift” warms the color temperature of the light as it dims to deliver a classic tungsten look. Its variable PWM and high CRI make it ideal for broadcast applications. Thanks to a custom interlocking system CHAUVET Professional has developed, STRIKE Array 4 can be interconnected with multiple Array units for scalable design configurations without any tools. Omega-Bracket locks are also installed both on the yoke and the back of the IP65 blinder – giving you a streamlined truss mounting process.

    FEATURES

    • Intense 4 pod blinder/strobe rated IP65 for all-weather use
    • Emulated “red shift” to mimic incandescent fixtures perfectly.
    • Individual pan (or tilt depending on mount orientation) of each head to allow for directional adjustment of light output.
    • Innovative interlocking system to connect multiple Strike Array 4s and Strike Array 2s together.
    • Multiple mounting locations and repositionable yoke with ¼ turn adaptors for creative and convenient rigging options
    • 16-bit dimming control for smooth, perfect fades
    • Strobe functionality for high-impact effects on the fly
    • Easy to use OLED display
    • Adjustable Pulse Width Modulation (PWM) and RDM (Remote Device Management) for added flexibility


    SPECIFICATIONS

    OPTICAL

    • Light Source: 192 LED (WW) 2.18 W, (.709 A), 2700 K, 50,000 hours life expectancy
    • Light Source: 20 LED (Amber) 1.76 W, (.758 A), 50,000 hours life expectancy
    • Color Temperature (at full): 2770 K
    • CRI: 93.2
    • TLCI: 91
    • Beam Angle: 61.5°
    • Field Angle: 100.5°
    • Illuminance (total): 684 lux @ 5 m
    • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz

    DYNAMIC EFFECTS

    • Dimmer: Electronic
    • Strobe Rate: 0 to 25 Hz
    • Dim Modes: 4
    • Built-in Automated Programs: Yes

    CONSTRUCTION / PHYSICAL

    • Dimensions: 18.5 x 16.7 x 6.3 in (470 x 424.5 x 161 mm)
    • Dimensions (shipping size): 20.7 x 8.5 x 19.3 in (525 x 215 x 490 mm)
    • Weight: 28.7 lb (13 kg)
    • Weight (shipping weight): 33.1 lb (15 kg)
    • Exterior Color: Black
    • Housing Material: Aluminum die-cast

    CONNECTIONS

    • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
    • Power Input: Seetronic Powerkon IP65
    • Power Output: Seetronic Powerkon IP65
    • Data Connectors: 5-pin IP65 XLR
    • Cable Length (power): 5 ft (1.5 m)

    CONTROL

    • Control Protocol: DMX, RDM
    • DMX Channels: 1, 3, 4, 5, 6, or 10

    ELECTRICAL

    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power Linking: 5 units @ 100 V; 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V; 12 units @ 240 V
    • Power and Current: 243 W, 2.44 A @ 100 V, 60 Hz [9.0 A inrush]
    • Power and Current: 241 W, 2.01 A @ 120 V, 60 Hz [10.8 A inrush]
    • Power and Current: 244 W, 1.18 A @ 208 V, 60 Hz [14.2 A inrush]
    • Power and Current: 245 W, 1.07 A @ 230 V, 50 Hz [12.8 A inrush]
    • Power and Current: 247 W, 1.03 A @ 240 V, 50 Hz [12.8 A inrush]
    • Power and Current (resting): 8 W, .087 A @ 100 V, 60 Hz
    • Power and Current (resting): 9 W, .083 A @ 120 V, 60 Hz
    • Power and Current (resting): 17 W, .083 A @ 208 V, 60 Hz
    • Power and Current (resting): 18 W, .082 A @ 230 V, 50 Hz
    • Power and Current (resting): 21 W, .084 A @ 240 V, 50 Hz

    CERTIFICATIONS / QUALIFICATIONS

    • CE, MET, FCC, ETL, cULus
    • IP Rating: IP65, temporary outdoor/wet use
    • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
    • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

    WHAT'S INCLUDED

    • STRIKE Array 4
    • Seetronic Powerkon IP65
    • Omega bracket with mounting hardware
    • Warranty Card
    • Quick Reference Guide or User Manual
