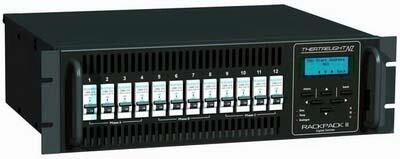

Theatrelight - Nebula LED-R, 12 x 13amp MCB, SCRs,+ Relays, Terminal Out
TLDIM-NEBULA1210R-T
The Nebula LED-R, in addition to all the features of the NebulaLED, includes 12 relays allowing each channel to be configured as a dimmer or a mains power relay.
- Power Save on dimmed loads: at full, Nebula will seamlessly switch the load to mains power, eliminating losses from the choke and SCRs as well as reducing heat output.
- Operates on universal power supply, 3-phase, 90-250 vac.
- At switch On, the SCRs turn on when the AC cycle is at zero volts for minimum in-rush current surge in capacitive loads. Once the SCRs are fully on, the relays close for lossless hotpower to the load.
- At switch Off, the relays release the load to the SCRs which then turn off when the load current reaches zero, eliminating any switch-off spike in inductive loads.
