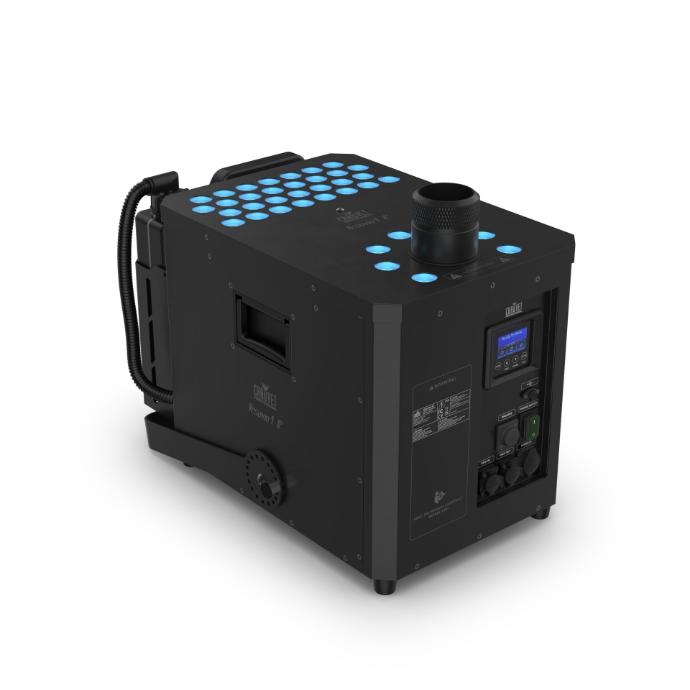

CHAUVET Vesuvio 4IP

https://www.mdrlighting.co.nz/web/image/product.template/57979/image_1920?unique=0743926

VESUVIO4IP

11,143.06 11143.06 NZD 11,143.06 GST Excluded

11,143.06 GST Excluded

Software Download

    This combination does not exist.

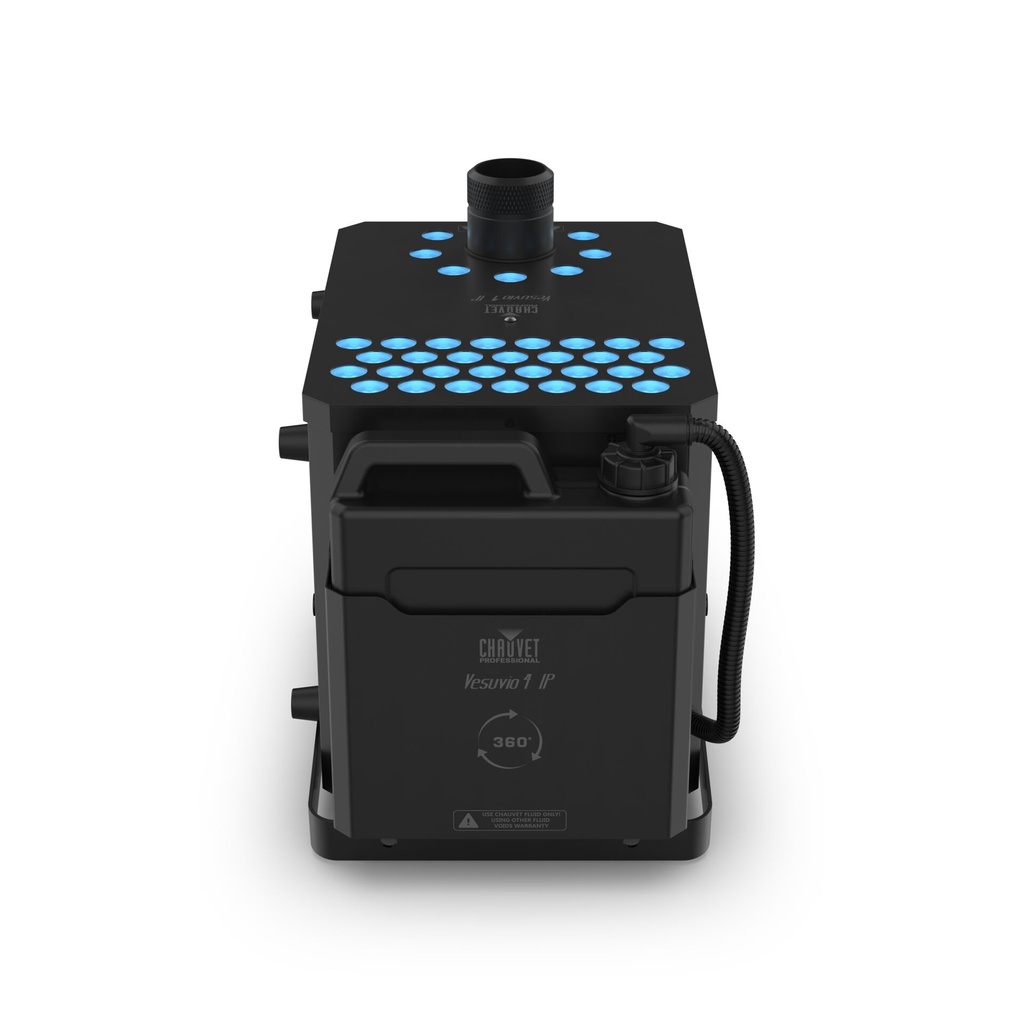

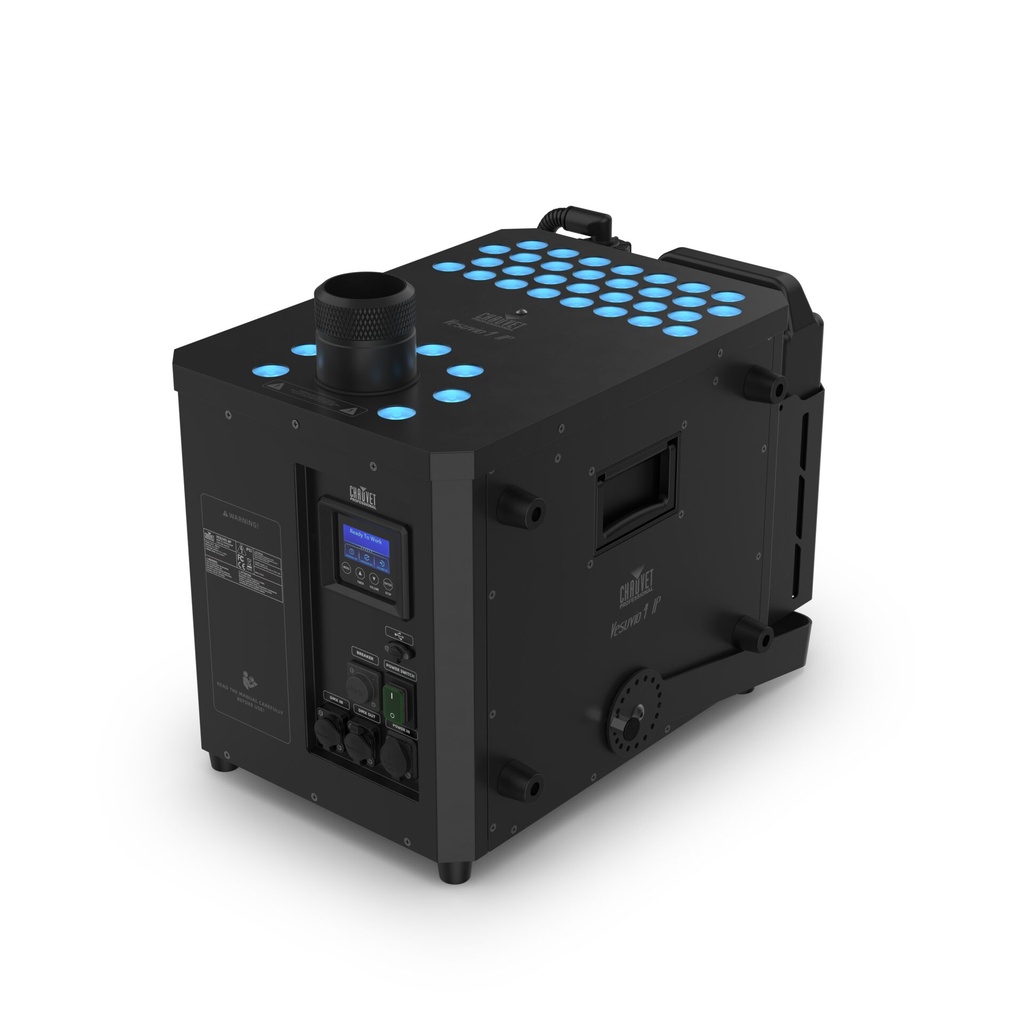

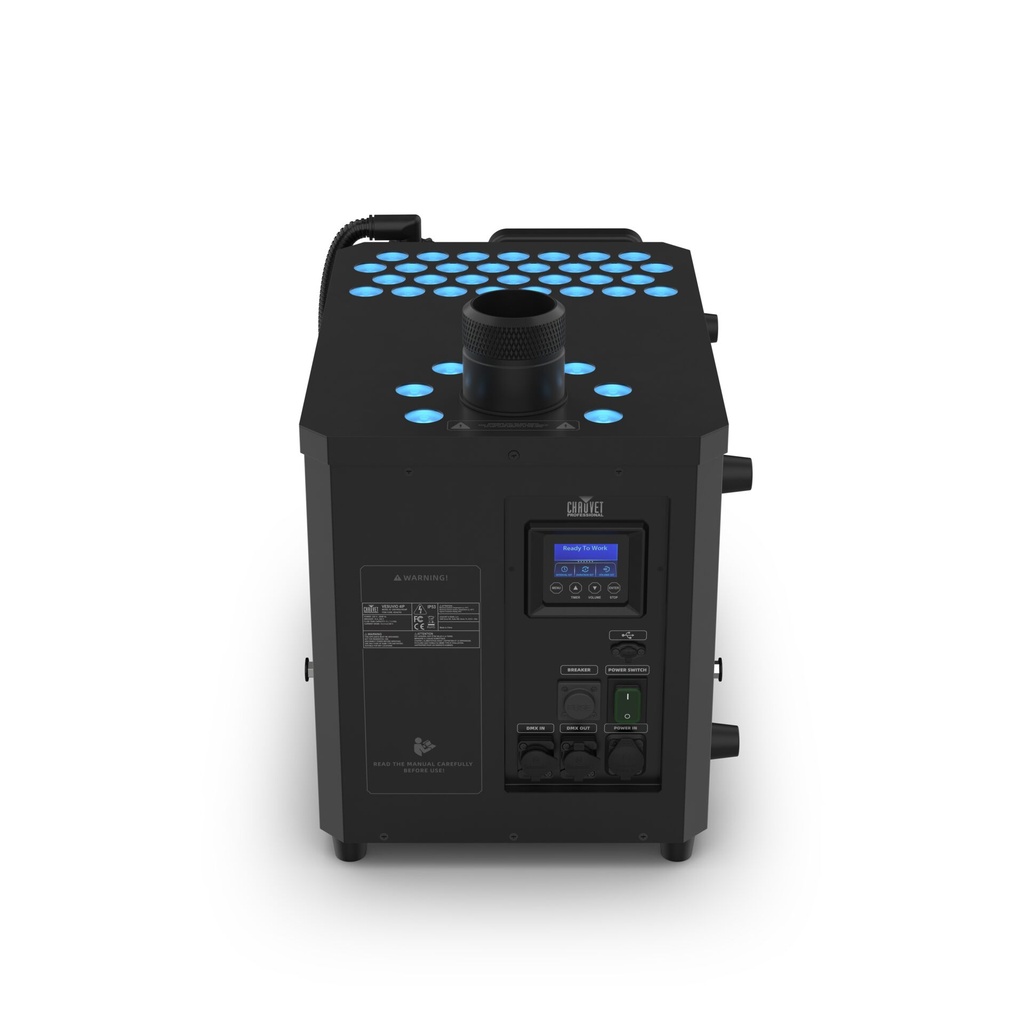

    CHAUVET Vesuvio 4 IP
    Punch up high-impact illuminated fog bursts with an IP53-rated tour-grade unit that delivers both extreme vertical or horizontal throw and dual-zone RGBA control to create dynamic color effects bright enough for the largest outdoor festivals and indoor environments. Operate via its full-color onboard display, included wireless RF handheld remote, or DMX. Remotely address and monitor via RDM. Vesuvio 4 IP ships in a durable custom road case built for easy transportation and the rigors of touring and rental. Use QDF Quick Dissipating Fluid for optimal performance. This highly versatile unit can run in three different positions: vertically, horizontally or from overhead with mounting brackets.

    FEATURES

    • Advanced Vertical Fogger – Creates powerful vertical fog bursts, delivering a CO₂-style effect without the need for gas or tanks.

    • Outdoor-Ready Design – Rated for temporary outdoor use, providing reliable operation in wet or damp environments.

    • High-Performance Output – Engineered for extreme throw distances of up to 50 ft (15 m), ensuring maximum visual impact.

    • Dual-Zone RGBA Illumination – Independently controlled LED zones enable creative color effects and dynamic visuals.

    • Rugged Flight Case Included – Ships in a durable touring case for easy transport and protection during rental or live event use.

    • Flexible Control Options – Operate via onboard full-color display, wireless RF handheld remote, or DMX integration.

    • Integrated Drainage System – Simplifies post-use maintenance with quick water evacuation and easy cleanup.

    • USB-C Port – Allows convenient software and firmware uploads for future updates.

    • QDF (Quick Dissipating Fluid) Required – Ensures optimal performance and clean atmospheric effects.


    OPTICAL

    • Light Source: 37 LEDs (RGBA)

     DYNAMIC EFFECTS

    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Low Fluid Shutdown: No
    • Standalone Color Mixing: No
    • Built-in Automated Programs: Yes/No

     CONSTRUCTION / PHYSICAL

    • Dimensions: 20.79 x 13.82 x 17.32 in (528 x 351 x 440 mm)
    • Weight: 72.2 lb (32.75 kg)
    • Exterior Color: Black
    • Housing Material: Aluminum alloy, stainless steel
    • Tank Capacity: 1.4 gal (5.3 l)
    • Fluid Consumption: 22 ml/min
    • IP Rating: IP53
    • Heat-up Time: 13 min
    • Maximum Runtime: 45-second bursts

     CONNECTIONS

    • Power Input: Seetronic Powerkon IP65
    • Data Connectors: 5-pin IP65 XLR
    • Cable Length (power): 5 ft (1.5 m)
    • Firmware upgrades: USB type-C

     CONTROL

    • Control Protocol: [DMX, RDM, RF Remote]
    • DMX Channels: 14
    • Modes/Personalities: 1 personalities (14)
    • On-Board Control: Yes
    • Included Remote: yes

     ELECTRICAL

    • Input Voltage: 208 VAC, 60 Hz
    • Power and Current: 2167 W, 10.43 A @ 208 V, 60 Hz
    • Breaker Size: 16 A, 250 V

     WHAT'S INCLUDED

    • Vesuvio 4 IP
    • Seetronic Powerkon Cable
    • 2x Omega Brackets
    • Controllers: RF Remote

     OPTIONAL ACCESSORIES

    • CTC-50G
    • CTC-50HCN
    • RIGLINK POWERKON CABLES
    • RIGLINK DMX CABLES
