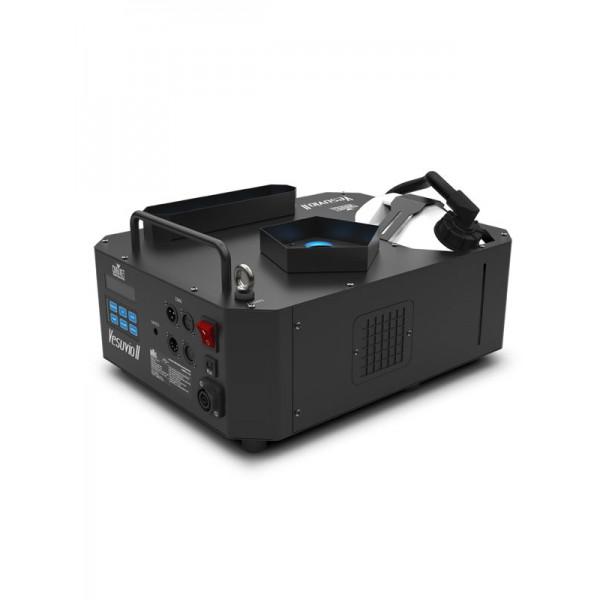

CHAUVET Vesuvio II upwards firing fogger with LED lighting
Vesuvio II illuminates bursts of fog with advanced RGBA+UV LED color mixing, providing ferocious effects for events and performances. Featuring an impressive 40,000 cubic feet of fog per minute, it boasts a best in class 40 seconds of full burst output. New dual LED sections give greater creative control for a more even coverage of light. The Vesuvio II is built for efficiency, consuming only 80ml/min of QDF5 fluid. This highly versatile unit can run in three different positions: vertically, horizontally or from overhead with mounting brackets. It works best with the Chauvet HDF high-density and QDF5 quick dissipating fluid.
FEATURES
- Advanced red, green, blue, amber, and UV (RGBA/UV) LED color mixing
- 40 second continuous bursts of fog, for intense effects and performance
- 40,000 CFM fog output for intense, large effects
- 2.5 l fluid tank for reliability in production
- Strong, sturdy construction for numerous production types
- DMX control for ease of use in production situations
- 3- and 5-pin DMX input/output connections
OPTICAL
- Light Source: 10 LEDs (RGBA/UV) 8.5 W, (3 A), 50,000 hours life expectancy
- Illuminance (Center): 199.5 lux @ 5 m
- Illuminance (Linear): 154 lux @ 5 m
- Illuminance (Both): 334 lux @ 5 m
- PWM Frequency: 126 Hz
DYNAMIC EFFECTS
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 20 Hz
- Output: 40,000 cfm
- Low Fluid Shutdown: No
CONSTRUCTION / PHYSICAL
- Dimensions: 19.49 x 13.18 x 9.39 in (495 x 335 x 239 mm)
- Weight: 28.4 lb (12.9kg)
- Exterior Color: BLACK
- Housing Material: Steel
- Tank Capacity: 0.7 gal (2.5 l)
- Fluid Consumption: 80 ml/min
CONNECTIONS
- Power Connection: Edison plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
CONTROL
- Control Protocol: DMX
- DMX Channels: 15
- Modes/Personalities: 1 personalities
- On-Board Control: Yes
- Included Remote: No
ELECTRICAL
- Input Voltage (120V): 120 VAC, 60 Hz
Input Voltage (220V): 230 VAC, 50 Hz - Power and Current (120V): 1,480 W, 12.55 A @ 120 V, 60 Hz
Power and Current (220V): 2,880 W, 12.55 A @ 230V, 60 Hz - Heat-up Time (120V): 10 min
Heat-up Time (220V): 10 min - Breaker Size (120V): 15A
Breaker Size (220V): 15A
CERTIFICATIONS / QUALIFICATIONS
- CE
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
- Vesuvio II
- Seetronic Powerkon IP65power cord
OPTIONAL ACCESSORIES
