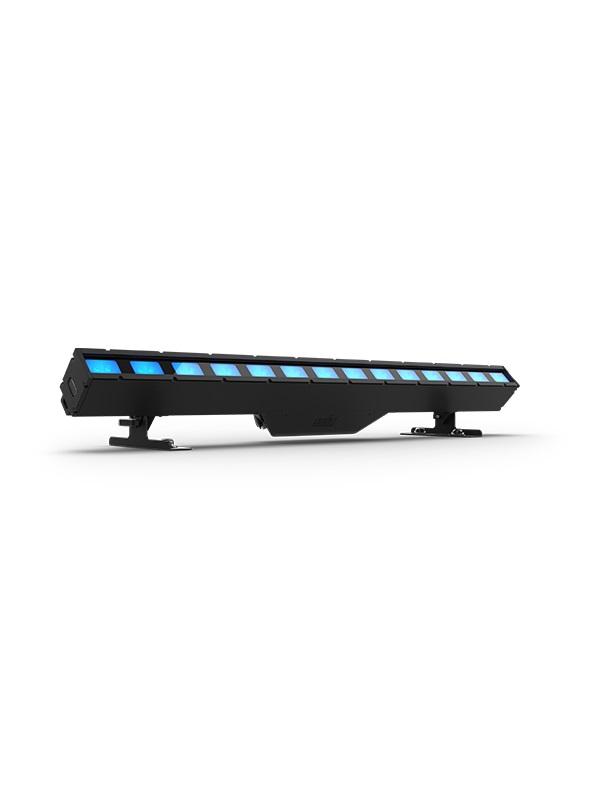

CHAUVET Well Batten 14 (x4) in charging roadcase
WELL BATTEN 14 delivers 14 zones of control for pixel-mapping effects and a preprogrammed library of looks similar to our popular WELL STX. Up to 18 hours of battery life from a batten engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a road-worthy four-unit kit with built-in charging capability.
FEATURES
A fully realized kit of (4) battery-operated black IP65-rated batten style fixtures, with (28) RGB warm white LEDs in (14) sections of control and a beam angle of 16 degrees.
Charging case designed to charge with the lid closed to save warehouse space
14 individual zones of control for pixel mapping effects
Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
Built-in battery charger allows fixture to operate while charging
Built-in IP65 5-pin DMX in/out allows for wired data
Built-in Seetronic IP65 PowerKon input/output
Control over RDM, CRMX, or RF
Easy connection to WELL CONNECT box for CHAUVET CONNECT app control
USB-C port for convenient software updates
Pressure equalizing M6 Gore valve
Built-in safety cable attachment point
Easy-to-read OLED display
Built-in theft alarm (audio and visual notification)
Built-in PWM Adjustment
Included RF remote
Included 4 pack charging case
OPTICAL
- Light Source: 28 LEDs (RGBW) 10W, (516mA), 50,000 hours life expectancy.
- Color Temperature (range): 2600 to 10,000K
- Beam Angle: 16°
- Field Angle: 33.8°
- Cutoff Angle: 64.1°
- Lumens: 3854 lm (AC power)
- Illuminance: 1050 lux @ 5 m (AC power) Lumens:
- Lumens: 2210 lm (OFF battery setting)
- Illuminance: 601 lux @ 5 m (OFF battery setting)
- Lumens: 2319 lm (5-hour battery setting)
- Illuminance: 631 lux @ 5 m (5-hour battery setting)
- Lumens: 1437 lm (8-hour battery setting)
- Illuminance: 392 lux @ 5 m (8-hour battery setting)
- Lumens: 890 lm (12-hour battery setting)
- Illuminance: 243 lux @ 5 m (12-hour battery setting)
- Lumens: 548 lm (18-hour battery setting)
- Illuminance: 148 lux @ 5 m (18-hour battery setting)
- Selectable PWM: 1000 Hz, 2000 Hz, 3000Hz, 4000Hz, 6000Hz, 25kHz
DYNAMIC EFFECTS
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 30 Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Customizable Programs: No
- Recall Custom Programs: No
CONSTRUCTION / PHYSICAL
- Dimensions: 39.4 x 7.9 x 6.4 in (1001 x 200 x 163 mm)
- Weight: 16.4 lb (7.4 kg)
- Exterior Color: Black
- Housing Material: Aluminum diecast
CONNECTIONS
- Power Connection: Edison (local) plug to Seetronic PowerKon IP65
- Power Input (fixture and charging case): Seetronic PowerKon IP65
- Power Output (fixture and charging case): Seetronic PowerKon IP65
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
- Software Connection: USB-C
CONTROL
- Control Protocol: DMX, RDM, CRMX, NFC, RF
- DMX Channels: 5,8,15,66,85
- Modes/Personalities: 6 personalities (5ch,8ch,15ch,66ch,85ch)
- Wireless WDMX “G” Compatibility: G4S
- Wireless Lumen Radio Compatibility: CRMX
ELECTRICAL
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Single unit
- Power Linking: 17 units @ 120 V; 30 units @ 208 V; 32 units @ 230 V
- Power and Current: 80 W, 0.67 A @ 120 V, 60 Hz
- Power and Current: 79 W, 0.40 A @ 208 V, 60 Hz
- Power and Current: 79 W, 0.37 A @ 230 V, 50 Hz
- 4 Pack case
- Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
- Power and Current: 219 W, 2.04 A @ 120 V, 60 Hz
- Power and Current: 222 W, 1.27 A @ 208 V, 60 Hz
- Power and Current: 222 W, 1.1 A @ 230 V, 50 Hz
BATTERY
- Battery type: Lithium Nickel Cobalt AL (Li) (NiCoAL)
- Rechargeable: Yes
- Battery Charge Time: 7 hours
- Battery Life: selectable: off, 5, 8, 12, 18 hrs
CERTIFICATIONS / QUALIFICATIONS
- CE, UKCA, FCC, ROHS
- IP Rating: IP65, temporary outdoor/wet use
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHATS INCLUDED
- (4) WELL BATTEN 14
- (1) 4 slot charging case
- (1) basic RF controller
- (4) Seetronic PowerKon IP65 power cords
- (8) Omega Brackets
- (1) QRG
OPTIONAL ACCESSORIES
- Clamps
- WELL Batten 14 – 15° Filter Pack
- WELL Batten 14 – 60° x 10° Filter Pack
- PowerKon Extension cables
- 5 pin DMX Cables
