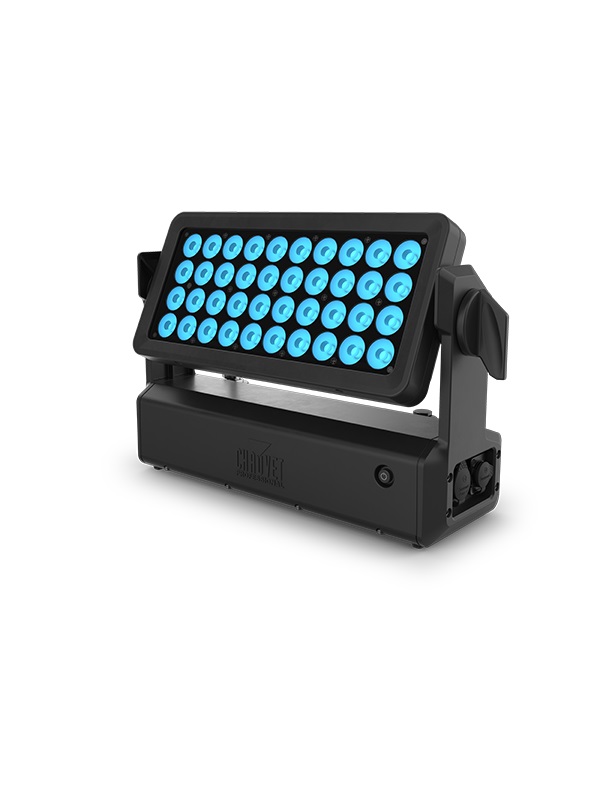

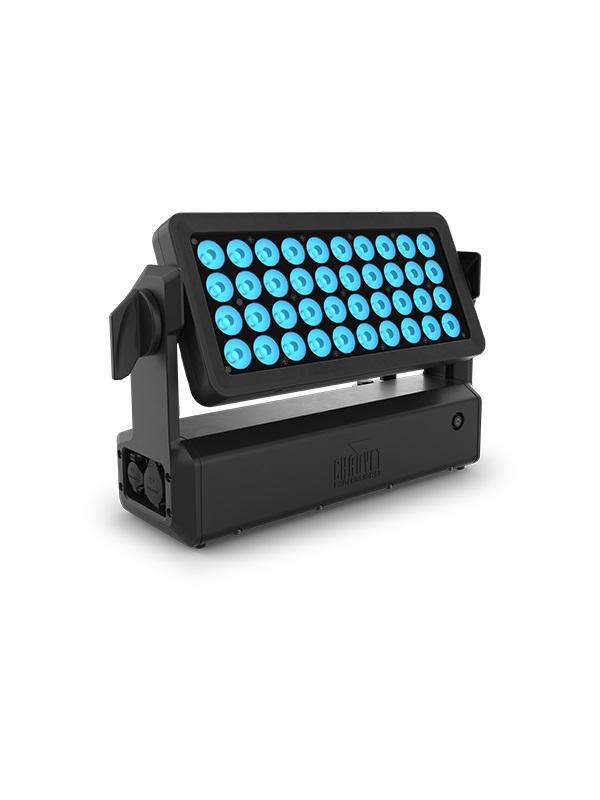

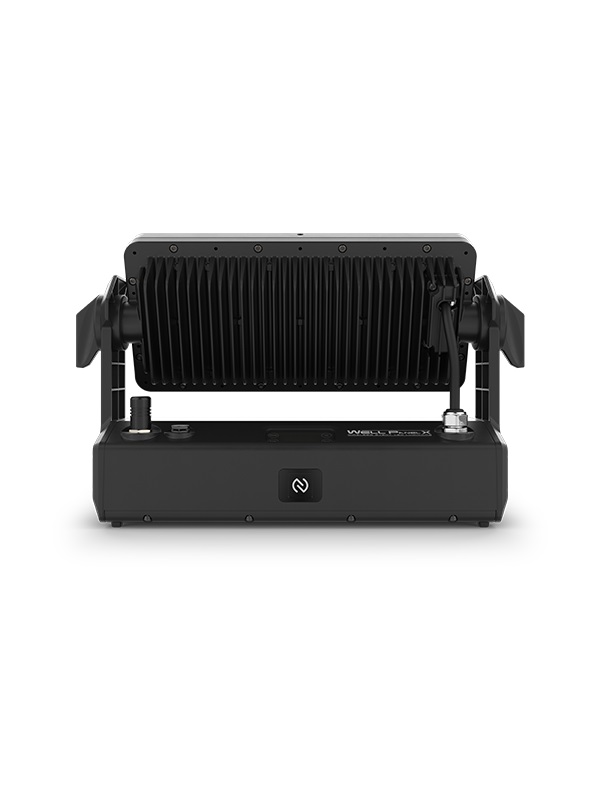

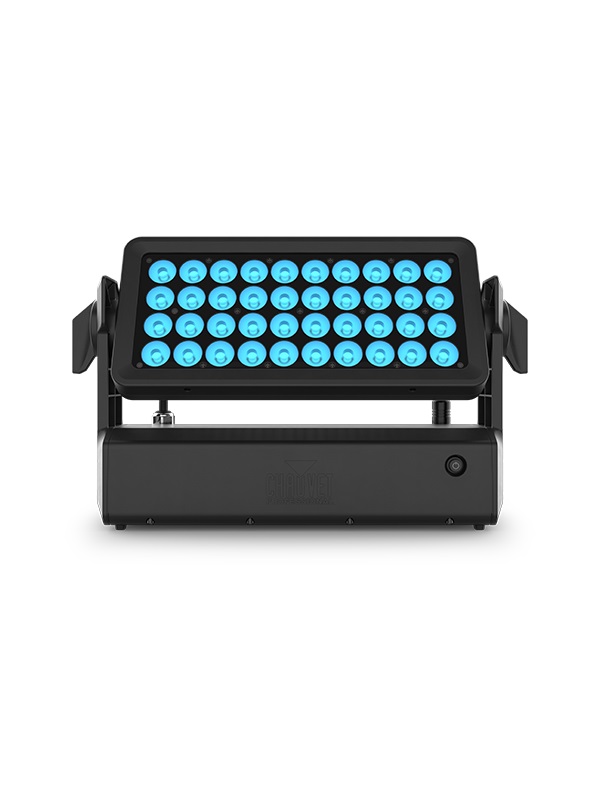

CHAUVET Well Panel X (x4) - New Generation Wireless panel uplights, in charging roadcase

WELL PANEL X is the ideal addition to any rental package, offering an easily deployed and controlled fixture with high CRI that renders skin tones beautifully and make this panel an excellent key light. A higher quantity of smaller LEDs in this design ensures better color mixing than ever before. Up to 18 hours of battery life from a fixture engineered to meet the needs of lighting professionals working in environments where quick setup and flexibility are crucial. Roll into any production, indoors or out, with a fully-realized road-worthy four-unit kit with built-in charging capability.

FEATURES

• A fully realized kit of (4) battery operated black IP65-rated panel style fixtures, with (40) RGB warm white LEDs and a beam angle of 10.8 degrees

• Battery run time selections of 5, 8, 12, and 18 hours of operation at full output

• Built-in battery charger allows fixture to operate while charging

• Built-in IP65 5-pin DMX in/out allows for wired data

• Built-in Seetronic IP65 PowerKon input/output

• Control over DMX, CRMX, RDM, or RF

• Easy connection to WELL CONNECT box and CHAUVET CONNECT app

• Removable split yoke for both hanging and floor standing

• Pressure equalizing M12 Gore valve

• Built-in safety cable attachment point

• Easy-to-read OLED display

• Built-in PWM adjustment

• Included RF remote

• Included 4 pack charging case

SPECIFICATIONS

Optical

• Light Source: 40 LEDs (RGBWW) 13.6 W, (678 mA), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 6500 K
• Installed optics: 11.6°
• Beam Angle: 21.4°
• Field Angle: 31.7°
• Lumens: 6865 lm (AC power)
• Illuminance: 4575 lux @ 5 m (AC power)
• Lumens: 6615 lm (OFF battery setting)
• Illuminance: 4269 lux @ 5 m (OFF battery setting)
• Lumens: 2886 lm (5-hour battery setting)
• Illuminance: 1867 lux @ 5 m (5-hour battery setting)
• Lumens: 1807 lm (8-hour battery setting)
• Illuminance: 1194 lux @ 5 m (8-hour battery setting)
• Lumens: 1189 lm (12-hour battery setting)
• Illuminance: 769 lux @ 5 m (12-hour battery setting)
• Lumens: 851 lm (18-hour battery setting)
• Illuminance: 548 lux @ 5 m (18-hour battery setting)
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No

Construction / Physical

• Dimensions: 17.17 x 5.31 x 10.24 in (436 x 135 x 260 mm)
• Dimensions case: 36.4 x 20.7 x 21.5 in (925 x 525 x 545 mm)
• Weight: 20.8 lb (9.43 kg)
• Weight case: 184 lb (83.5 kg)
• Exterior Color: Black
• Housing Material: Aluminum diecast

Connections

• Power Connection: Edison (local) plug to Seetronic Powerkon IP65
• Power Input (fixture and charging case): Seetronic Powerkon IP65
• Power Output (fixture and charging case): Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: RDM, CRMX, NFC, RF
• DMX Channels: 5,8,9,12,16 channels
• Modes/Personalities: 5 personalities (5Ch, 8Ch, 9Ch, 12 ch, 16 ch)
• Wireless WDMX “G” Compatibility: G4S
• Wireless Lumen Radio Compatibility: CRMX

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Single unit:
• Power Linking: 11 units @ 120 V; 19 units @ 208 V; 21 units @ 230 V
• Power and Current: 162 W, 1.35 A @ 120 V, 60 Hz
• Power and Current: 166 W, 0.8 A @ 208 V, 60 Hz
• Power and Current: 161 W, .0.7 A @ 230 V, 50 Hz
• 4 pack case:
• Power and Current: 606 W, 5.2A @ 120 V, 60 Hz
• Power and Current: 600 W, 3 A @ 208 V, 60 Hz
• Power and Current: 590 W, 2.6 A @ 230 V, 50 Hz
• 4 Pack Case Fuse – T6.3A. 250V

Battery

• Battery type: Lithium Ion
• Rechargeable: Yes
• Battery Charge Time: 4 hours
• Battery Life: 5, 8, 12,18 hours
• Battery Power: 44.4 V, 6600 mAh

Certifications / Qualifications

• CE, FCC, UKCA
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included

• (4) WELL PANEL X

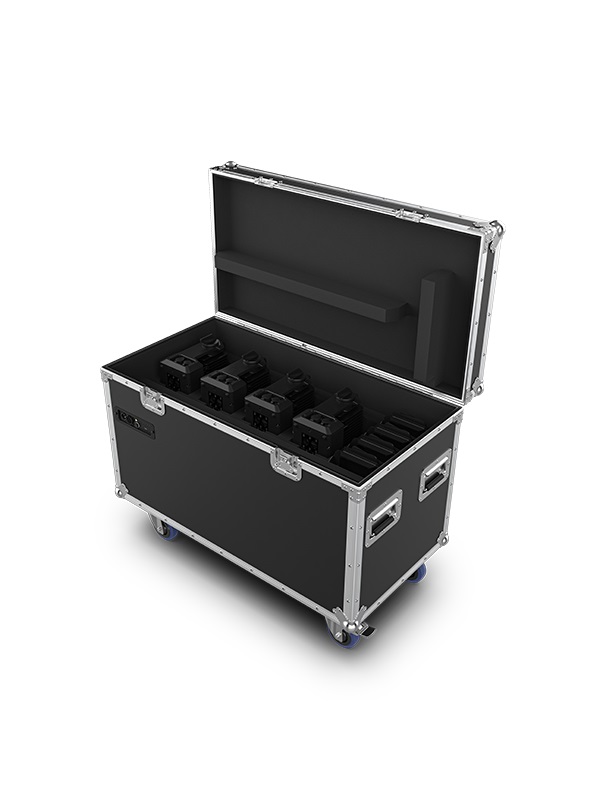

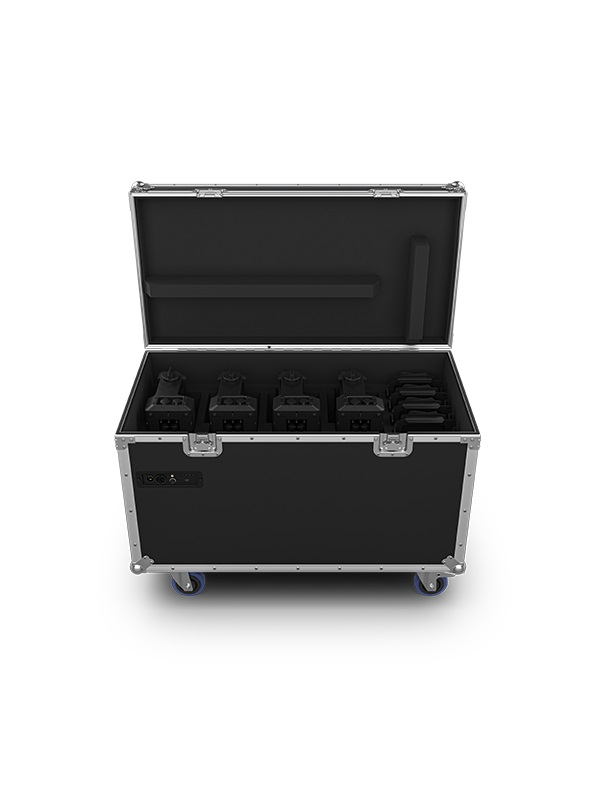

• (1) 4 slot charging case
• (1) basic RF controller
• (4) Seetronic PowerKon IP 65 power cords
• (4) Omega Brackets
• (1) QRG

Optional Accessories

• Clamps
• 45° hard filter pack
• 60° hard filter pack
• 100° hard filter pack
• 10°x60° hard filter pack
• 30°x60° hard filter pack
• 60°x10° and 60°x40° soft filter pack
• Empty filter frame for soft filters
• PowerKon Extension cables
• 5 pin DMX Cables
