• 8 Channels
• 2 x XLR inputs
• 6 x 6.3mm line inputs
• 3-band EQ
• 2 x 6.3mm outputs
• USB interface

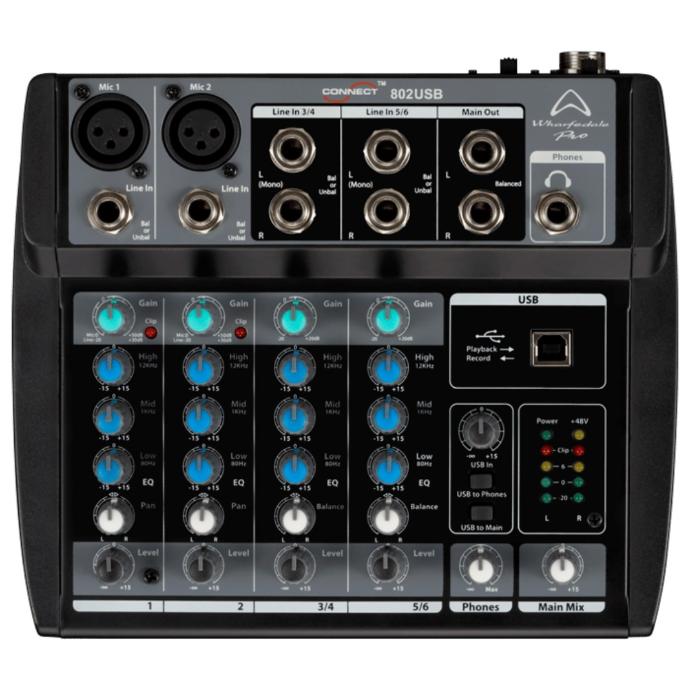

The Connect 802USB is a compact yet feature-rich mixer ideal for small live gigs or home studios. It offers multiple mic and instrument inputs with phantom power, intuitive rotary controls, and a built‑in USB interface for playback and recording.
Slim and portable, it fits neatly into any gig‑bag setup.
| Specification | Value |
|---|---|
| Total Channels | 8 |
| Inputs | 2 x XLR, 6 x 6.3 mm jack |
| Outputs | 2 x 6.3 mm jack |
| Balanced Inputs | Yes |
| Total Mic Preamps | 2 |
| Phantom Power | Studio Grade Phantom Power |
| Headphone Output | 6.3 mm Jack |
| EQ | 3-Band |
| Pan / Balance Control | Yes |
| USB | 16 bit / 48 KHz |
| Plug and Play | Yes |
| Compatibility | Linux, Mac, Windows |
| Signal To Noise Ratio | >78 dB ±5 dB @ Max Gain |
| Frequency Response | 20 Hz-20 KHz ±2 dB |
| Included Accessory | Power adaptor, User Manual |
| Unpacked - Height (mm) | 50.9 |
| Unpacked - Width Front (mm) | 208 |
| Unpacked - Width Rear (mm) | 208 |
| Unpacked - Depth (mm) | 183.8 |
| Weight - Nett (kg) | 0.92 |
