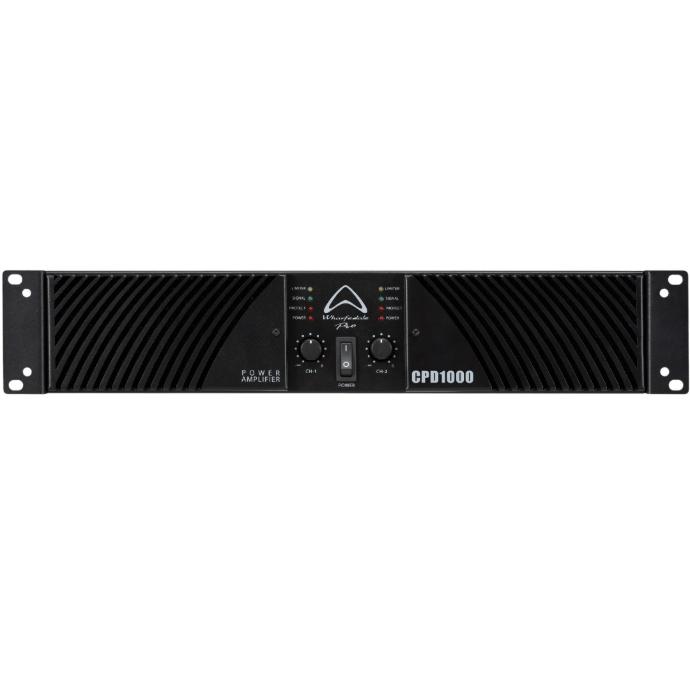

Wharfedale Pro - CPD1000 250w per channel @ 8 Ohms Power Amp
WHA-CPD1000
CPD1000 is a 2-channel amplifier from our CPD Series, engineered for professional use in touring, rental and fixed installation environments.
Delivering 230 W per channel at 8 Ω, 350 W at 4 Ω and up to 700 W bridged at 8 Ω, it uses Class AB technology to deliver clean, consistent power with clarity and control. Built around a heavy-duty toroidal transformer, CPD amplifiers ensure stable performance even when AC supply fluctuates.
Designed for reliability and easy maintenance, the CPD1000 features a removable front grille for quick cleaning of air filters, helping maintain optimal airflow and cooling efficiency in demanding environments. With Stereo, Parallel and Bridge modes, built-in protection circuitry and variable-speed fans, it’s a tough, dependable workhorse ready for professional duty.
| Amp Channels | 2 |
| Topology | Class AB |
| 8Ω | 2 x 230 W |
| 4Ω | 2 x 350 W |
| 8Ω Bridged | 1 x 700 W |
| Input Connectors | 2 x XLR Socket |
| Output Connectors | 2 x 4 Pole Speaker Connector |
| Link Connectors | 2 x XLR Pin |
| Mode Switch | Parallel / Stereo / Bridge Mode / Limiter switch |
| Slew Rate | >40 V / us |
| Output RMS Voltage (V) | 42.9 V |
| Maximum input Level | 22 dBu (9.7 Vrms) |
| Crosstalk | <-70 dB |
| Amplifier Frequency Response | 20 Hz - 30 kHz |
| Amplifier Input Impedance | 20 KΩ |
| Damping Factor | > 300 |
| SNR | ≥100 |
| Protection | Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute |
| Main Power | 110-120 V AC or 100 V AC or 220-230 V AC or 240 V AC ~ 50/60 Hz |
| Included Accessory | User Manual |
| Unpacked - Height (mm) | 88 |
| Unpacked - Width Front (mm) | 483 |
| Unpacked - Width Rear (mm) | 483 |
| Unpacked - Depth (mm) | 330 |
| Packed - Height (mm) | 163 |
| Packed - Width Front (mm) | 423 |
| Packed - Width Rear (mm) | 423 |
| Packed - Depth (mm) | 557 |
| Weight - Nett (Kg) | 11 |
| Weight - Gross (Kg) | 13.5 |
