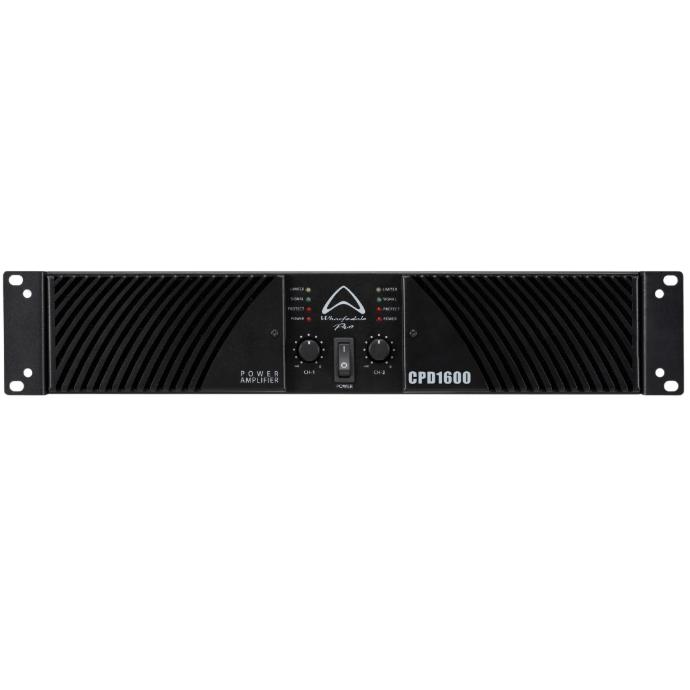

Wharfedale Pro - CPD1600 400w per Channel @8 Ohms Power Amp
WHA-CPD1600
CPD1600 is a 2-channel amplifier from our CPD Series, built for touring, rental and installation environments where reliable Class AB performance and easy maintenance are essential.
Delivering 400 W per channel at 8 Ω, 620 W at 4 Ω and up to 1200 W bridged at 8 Ω, it offers clean, consistent power with excellent control and headroom. A heavy-duty toroidal transformer ensures smooth, stable output even when AC supply fluctuates, while comprehensive protection circuitry guards against thermal, overcurrent, DC and short-circuit faults.
Designed for long-term reliability, CPD1600 features a removable front grille for quick cleaning of air filters — maintaining airflow and cooling efficiency in tough environments. With Stereo, Parallel and Bridge modes, variable-speed fans and a switchable limiter, CPD1600 is a powerful, dependable amplifier for demanding professional use.
| Amp Channels | 2 |
| Topology | Class AB |
| 8Ω | 2 x 400 W |
| 4Ω | 2 x 620 W |
| 8Ω Bridged | 1 x 1200 W |
| Input Connectors | 2 x XLR Socket |
| Output Connectors | 2 x 4 Pole Speaker Connector |
| Link Connectors | 2 x XLR Pin |
| Mode Switch | Parallel / Stereo / Bridge Mode / Limiter switch |
| Slew Rate | >40 V / us |
| Output RMS Voltage (V) | 56.6 V |
| Maximum input Level | 22 dBu (9.7 Vrms) |
| Crosstalk | <-70 dB |
| Amplifier Frequency Response | 20 Hz - 30 kHz |
| Amplifier Input Impedance | 20 KΩ |
| Damping Factor | > 300 |
| SNR | ≥100 |
| Protection | Thermal protect, Over-current protect, Output DC protect, Output short protect, Power on/off mute |
| Main Power | 110-120 V AC or 100 V AC or 220-230 V AC or 240 V AC ~ 50/60 Hz |
| Included Accessory | User Manual |
| Unpacked - Height (mm) | 88 |
| Unpacked - Width Front (mm) | 483 |
| Unpacked - Width Rear (mm) | 483 |
| Unpacked - Depth (mm) | 330 |
| Packed - Height (mm) | 163 |
| Packed - Width Front (mm) | 423 |
| Packed - Width Rear (mm) | 423 |
| Packed - Depth (mm) | 557 |
| Weight - Nett (Kg) | 13 |
| Weight - Gross (Kg) | 14.21 |
