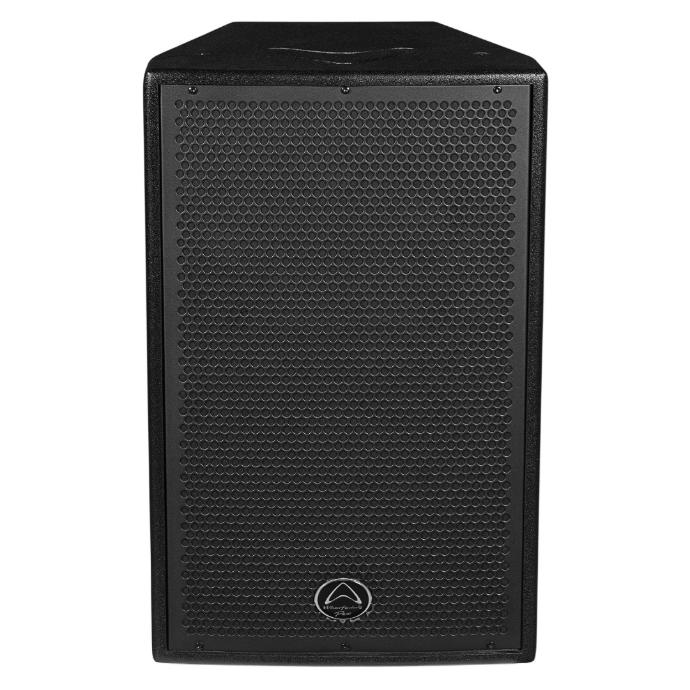

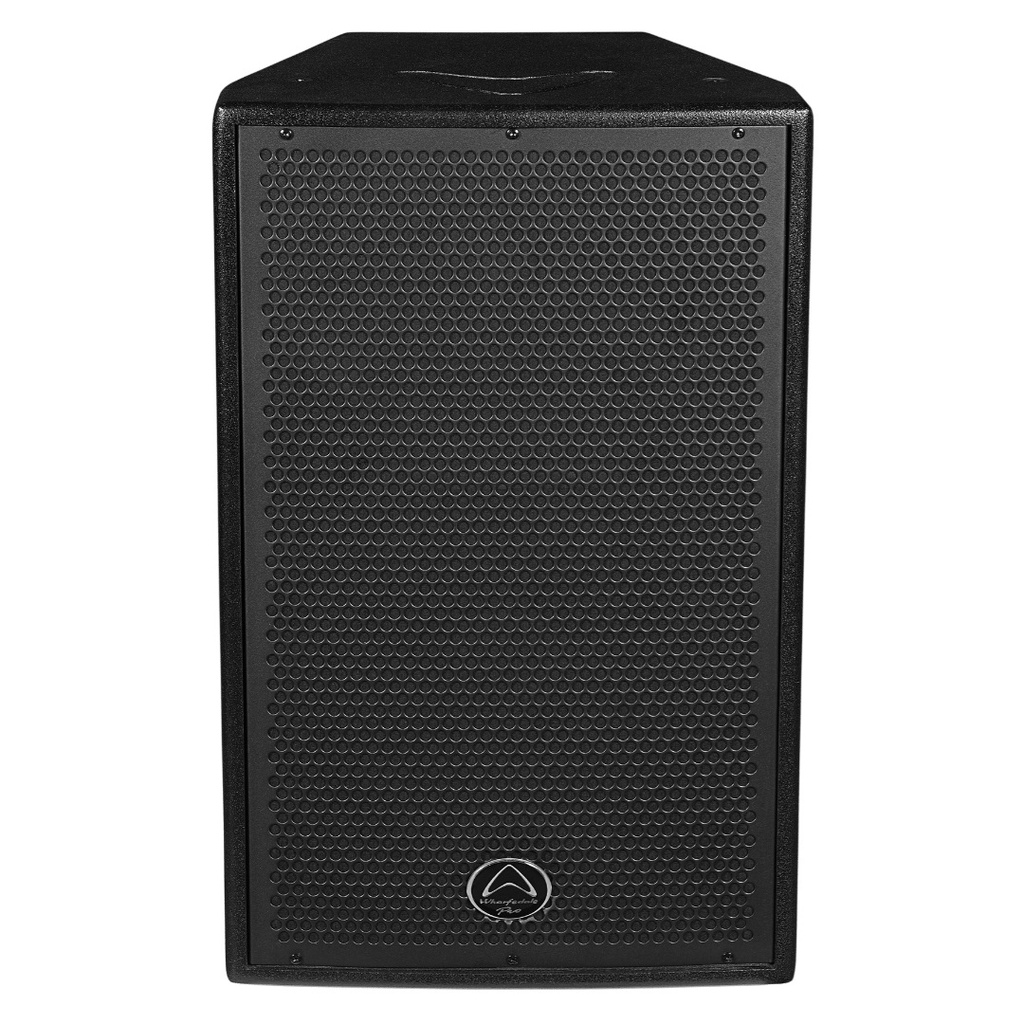

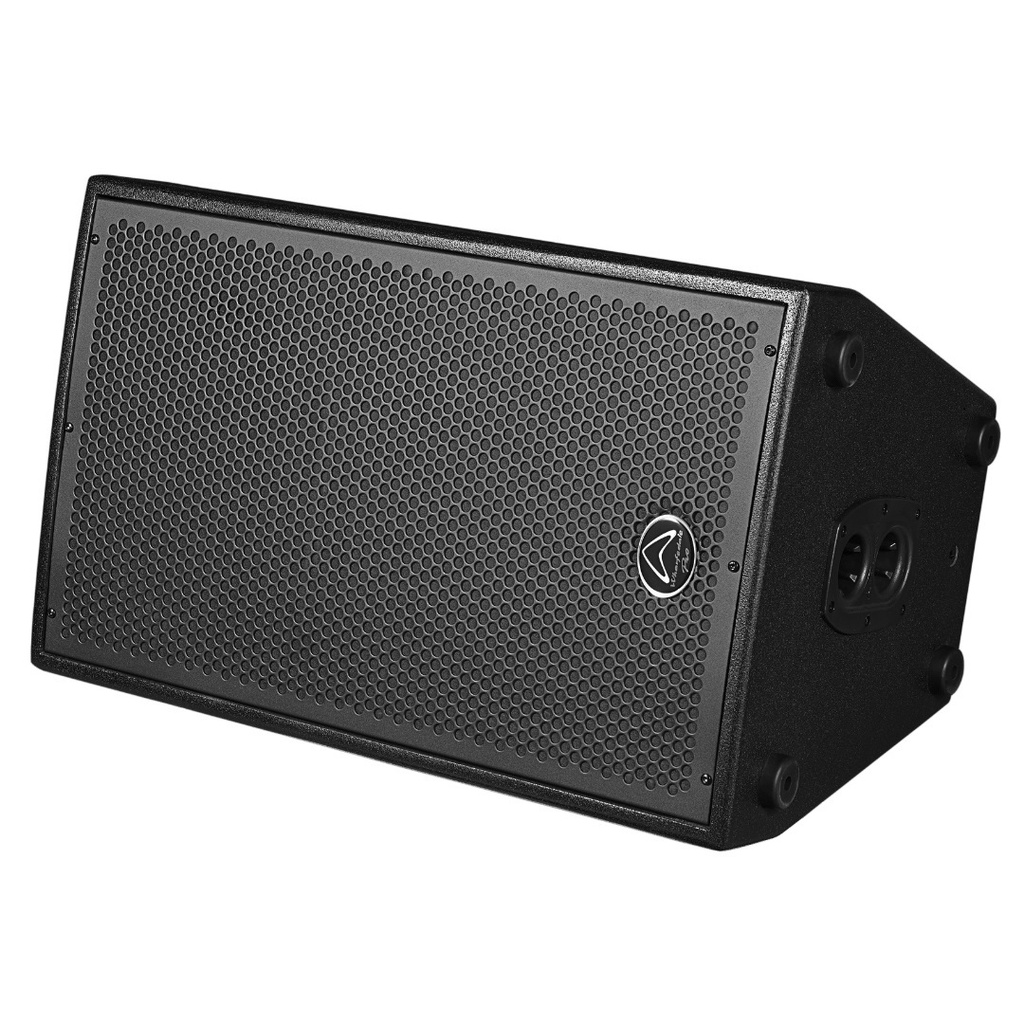

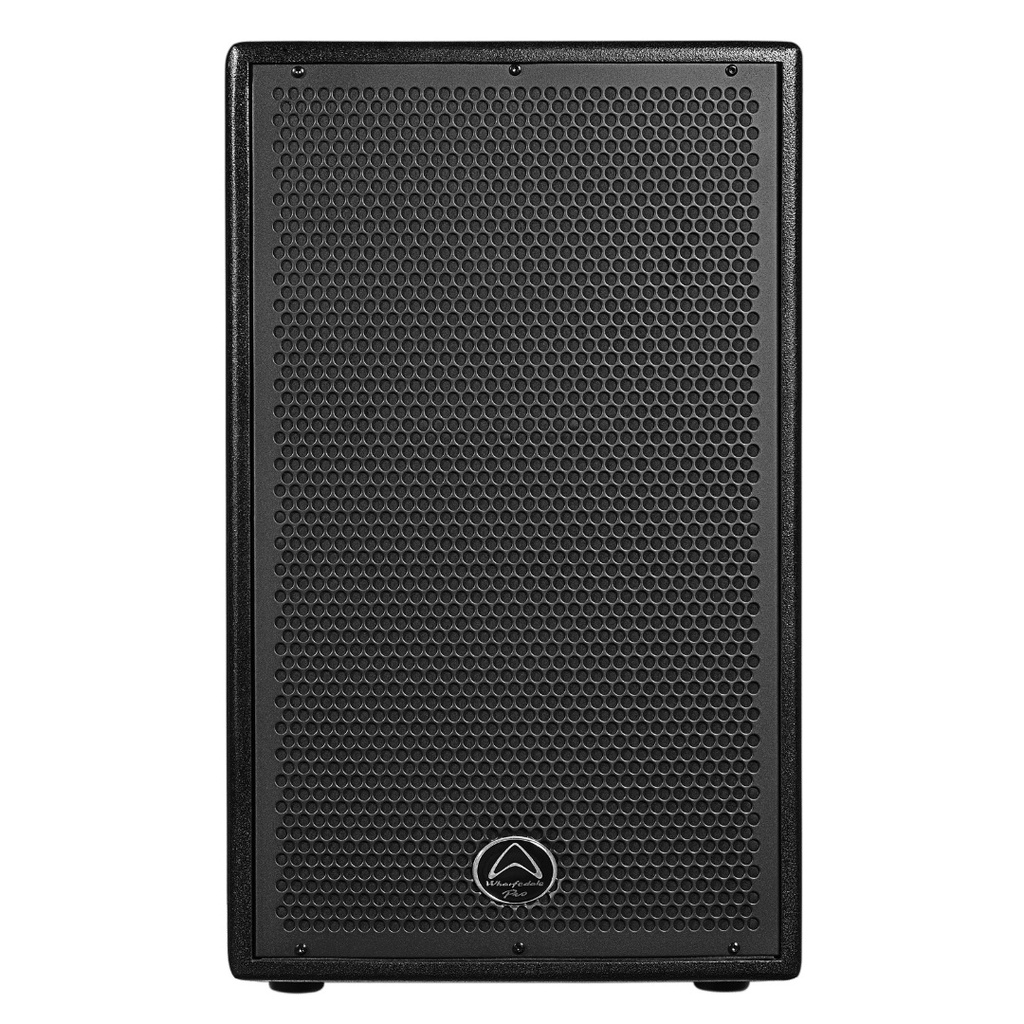

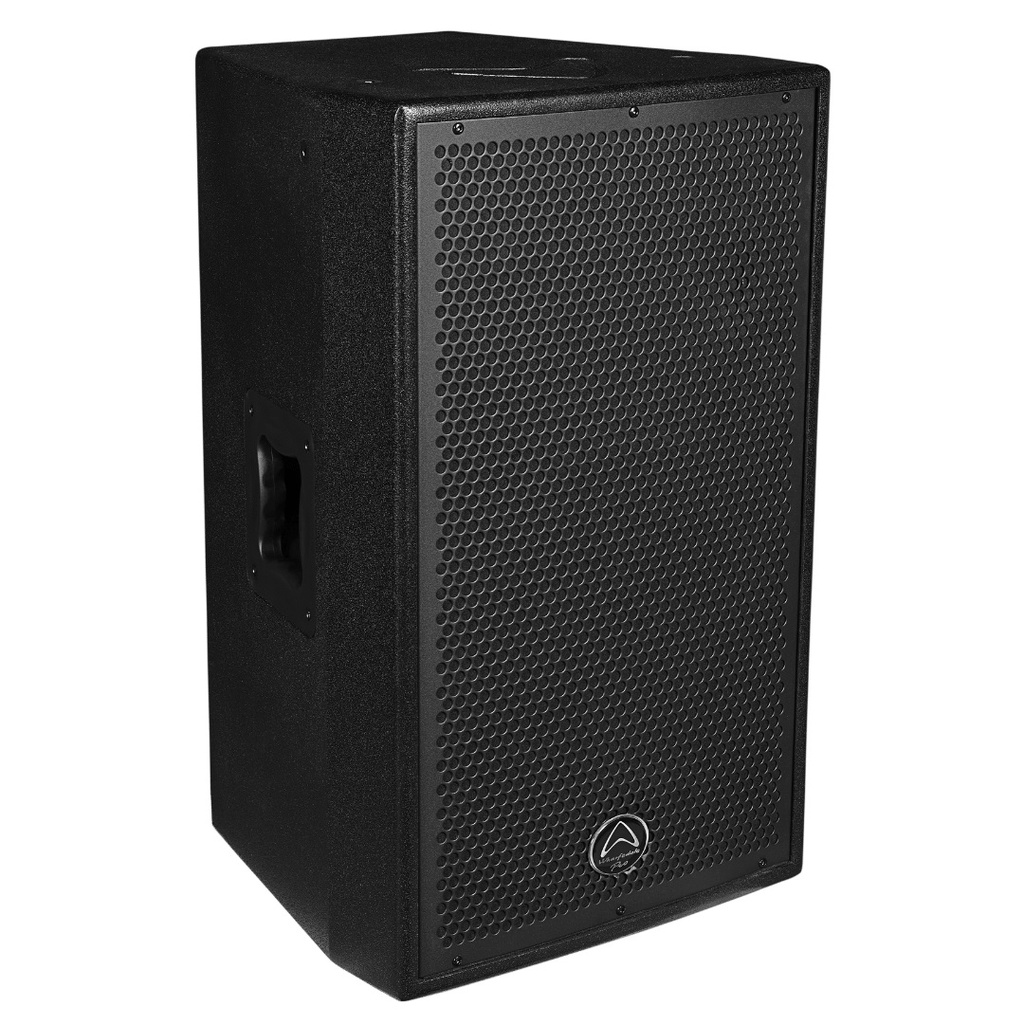

Delta-X12 is a versatile 12-inch 2-way passive loudspeaker that balances power and portability, making it ideal for live venues, installs, or mobile rigs.
Constructed from 15 mm birch plywood and finished in durable Tough-Tone paint, it’s built to handle the knocks of life on the road while maintaining a professional look.

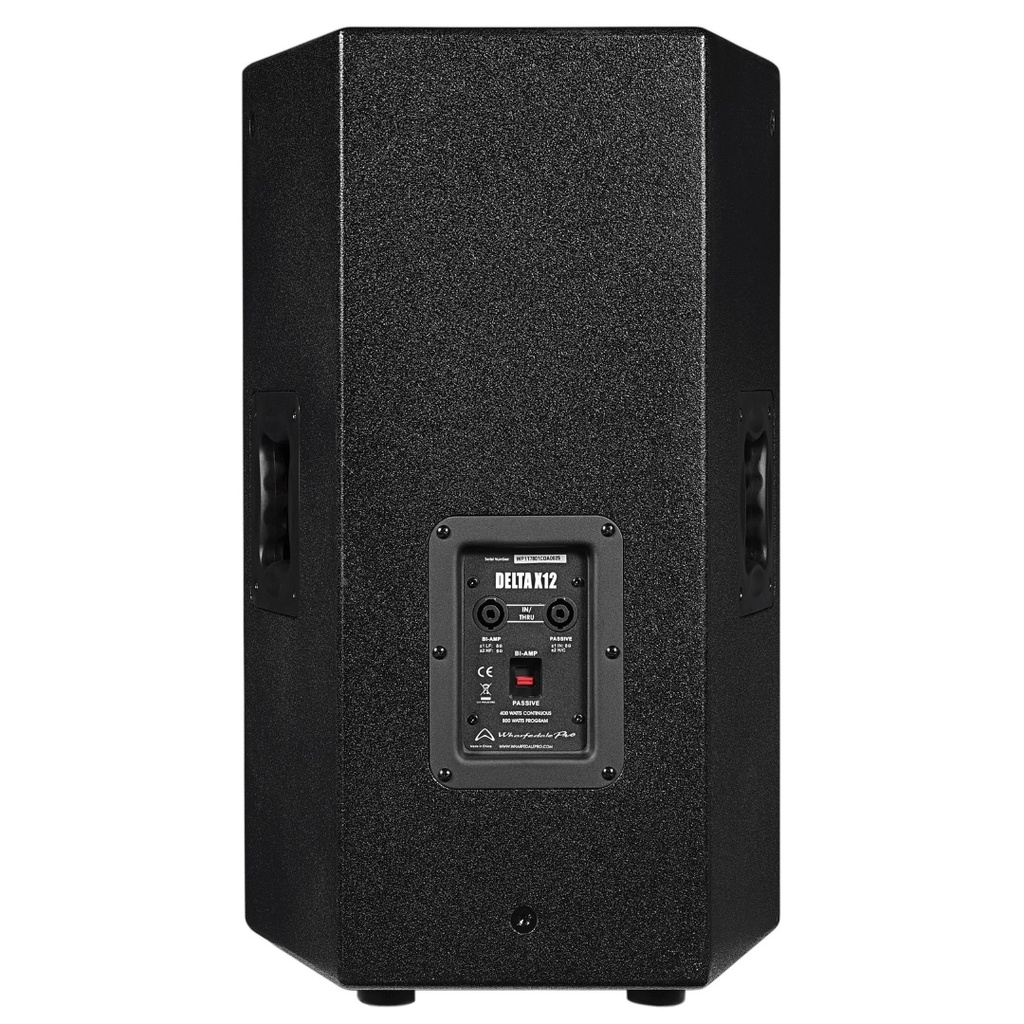

Like the rest of the Delta-X family, the rear panel gives you the choice of running in full-range passive mode or switching to a bi-amped setup for greater control over low and high frequencies with separate amplifiers.
Delivering 400 W continuous (up to 1,600 W peak) and capable of 129 dB max SPL, the Delta-X12 packs serious output into a manageable enclosure. A Wharfedale Pro custom LF driver ensures tight, punchy bass, while the titanium-diaphragm compression driver provides clear, defined highs. With a dual-angle pole socket and ergonomic side handles, it’s practical to position, carry, and integrate into any system.
| Active or Passive | Passive |
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 400 W |
| System Programme Power | 800 W |
| System Peak Power | 1600 W |
| Max SPL @ 1m | 129 dB |
| Freq Range (-10 dB) | 55 Hz - 20 kHz |
| Freq Response (+/-3 dB) | 60 Hz - 20 kHz |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 12" |
| LF Voice Coil Size | 3" |
| LF Rated Impedance | 8 Ω |
| LF Power (RE:AES2-2012) | 400 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 2" |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1.4" |
| HF Power (RE:AES2-2012) | 50 W |
| HF Rated Impedance | 8 Ω |
| HF Nominal Coverage (H x V) | 90° x 45° |
| Preset | Yes |
| Input Connector | 2 x 4 Pole Speaker Connector |
| Waveguide Type | Elliptical |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Steel Black |
| Finish | Black Tough-Tone |
| Handles | 2 |
| Deployment | Ground, Flying, Pole |
| Pole Mount | Dual Angle (0° / 10°) 35 mm |
| Rigging | Yes |
| M10 | 6 |
| Sensitivity 2.83v / 1m | 97 dB |
| System Rated Impedance | 8 Ω |
| Crossover Frequency | 1.8 kHz |
| Recommended HPF = BW 18 dB/OCT. | 55 Hz |
| EQ Type | None |
| Included Accessory | User Manual |
| Unpacked - Height (mm) | 630 |
| Unpacked - Width Front (mm) | 390 |
| Unpacked - Width Rear (mm) | 241 |
| Unpacked - Depth (mm) | 373 |
| Packed - Height (mm) | 773 |
| Packed - Width Front (mm) | 566 |
| Packed - Width Rear (mm) | 566 |
| Packed - Depth (mm) | 464 |
| Weight - Nett (Kg) | 24.7 |
| Weight - Gross (Kg) | 29 |
