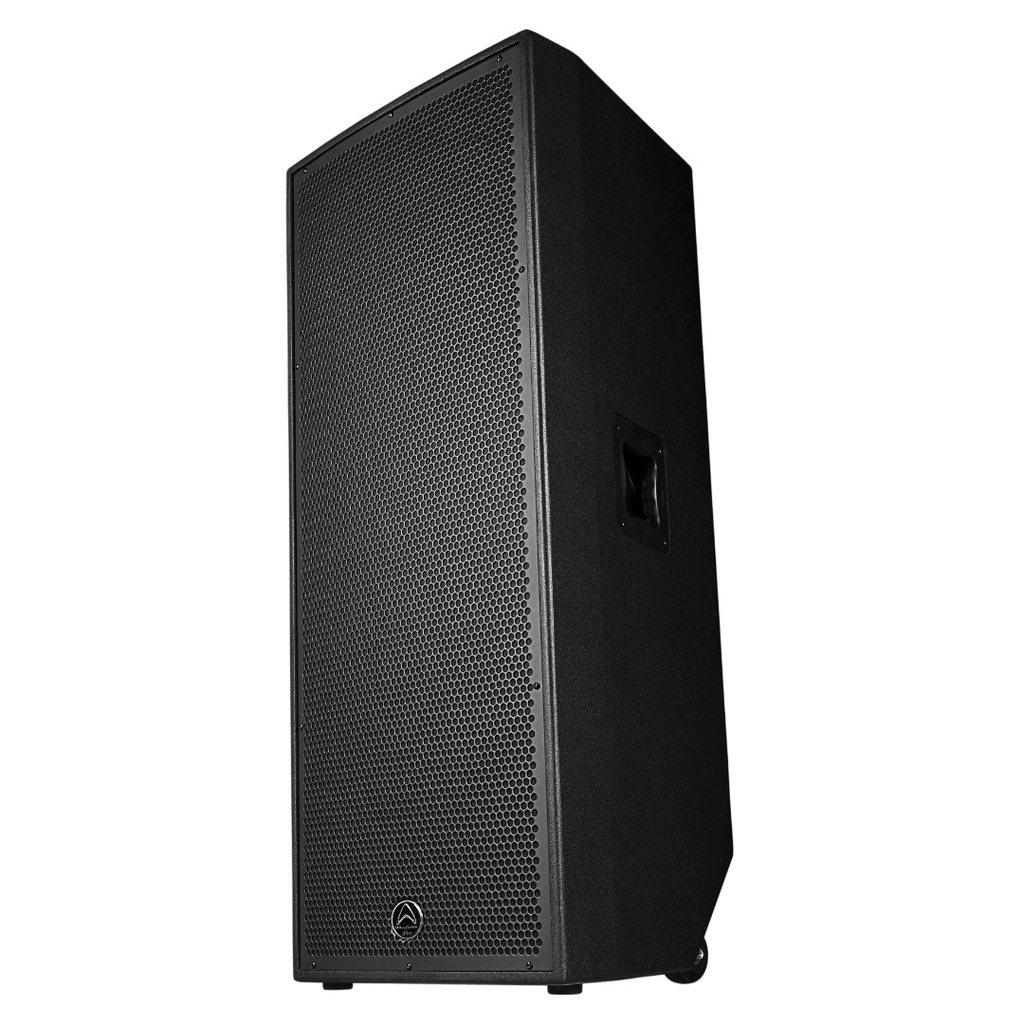

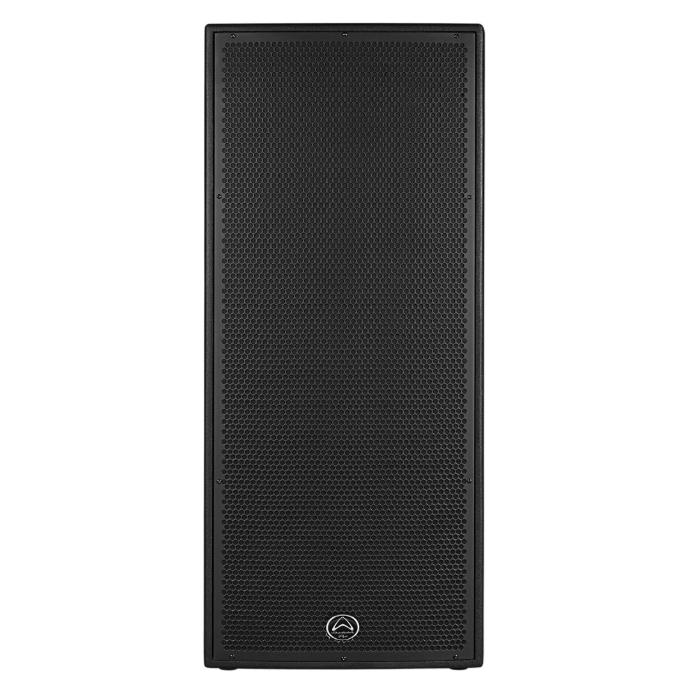

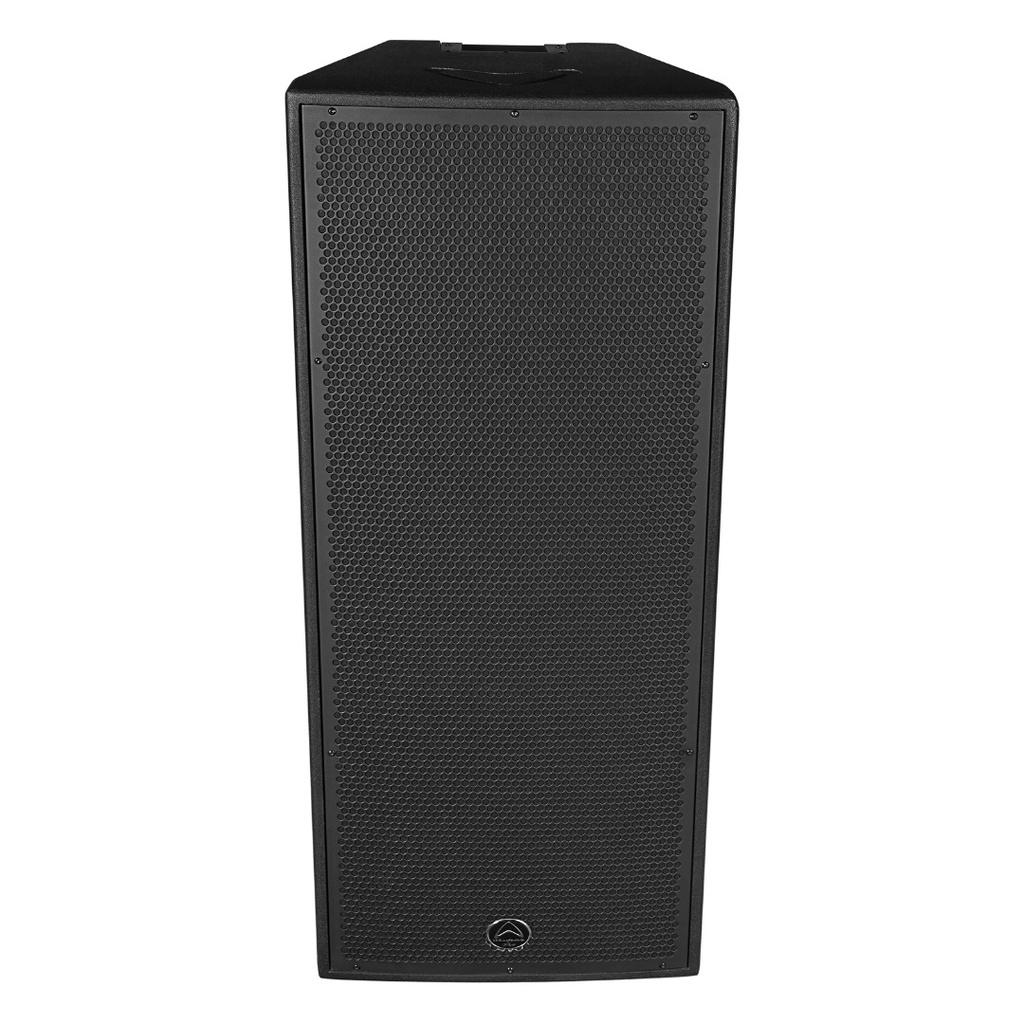

Delta-X215 is a quasi 3-way passive loudspeaker built for large-scale sound reinforcement where power and authority are critical.
Made from 18 mm birch plywood and finished in our durable Tough-Tone paint, the cabinet is road-ready and resilient while keeping a professional look for any stage or install.
With dual 15-inch Wharfedale Pro custom LF drivers handling the low frequencies, the X215 delivers immense bass weight and projection. Its dedicated MF/HF section adds definition and clarity through the midrange and crisp, articulate highs across wide coverage.
Rated at 1,000 W continuous (up to 4,000 W peak) and capable of producing 137 dB SPL, it has the headroom to fill demanding spaces with confidence.

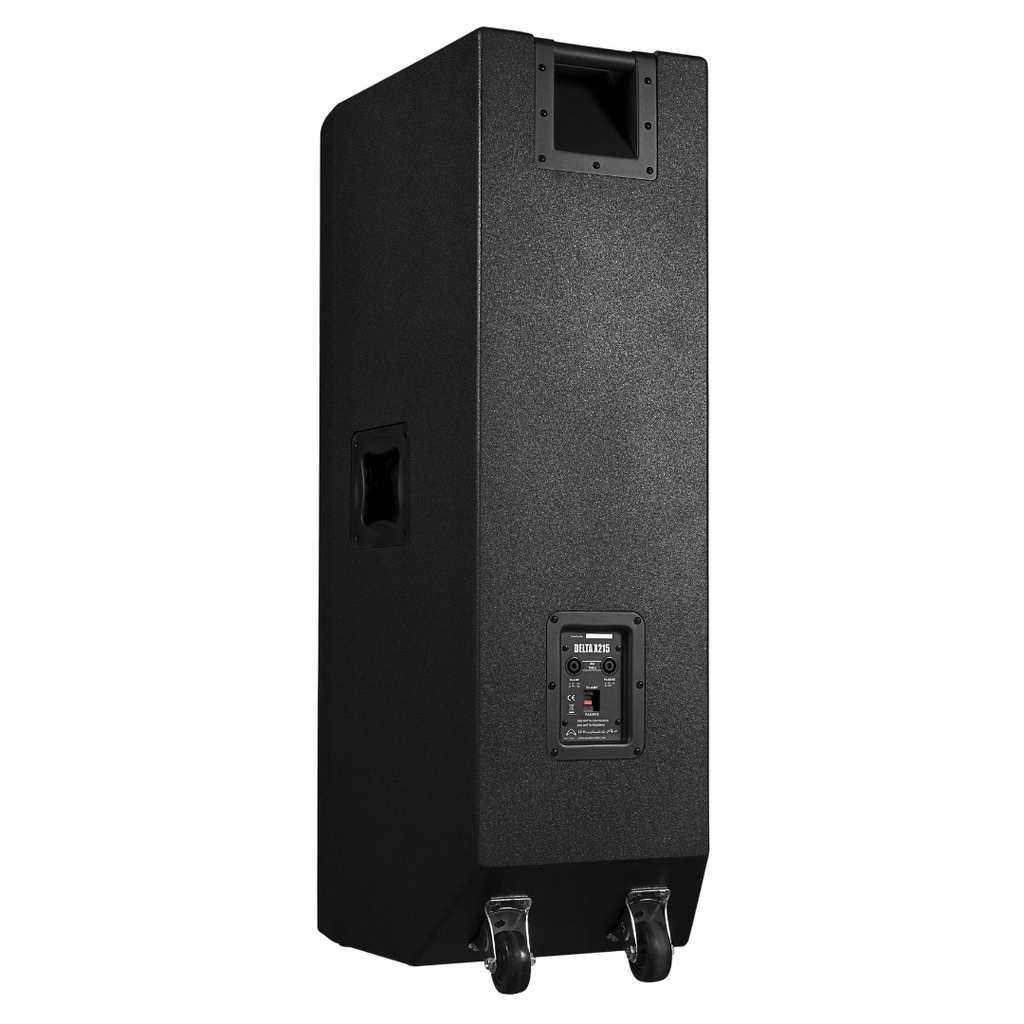

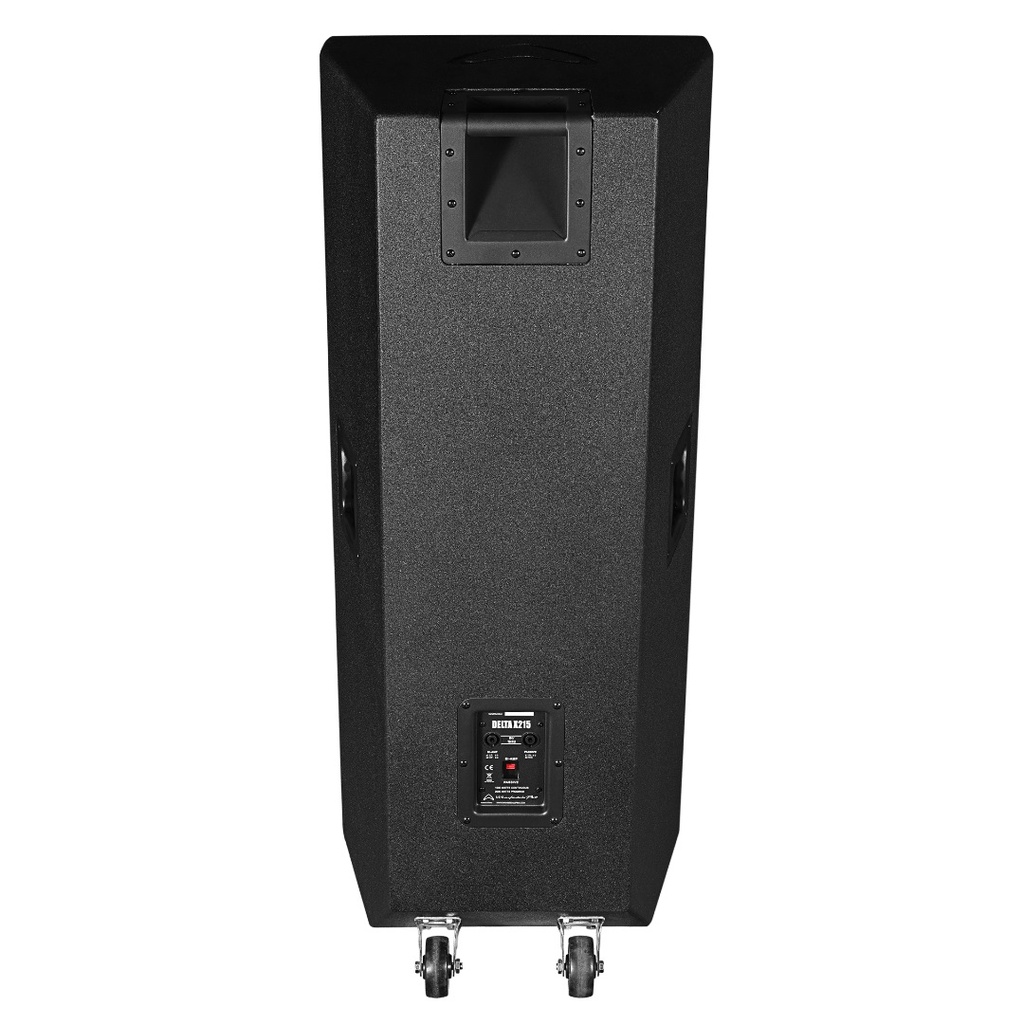

The rear panel switch allows full-range passive operation or bi-amp mode for precise system tuning.
Equipped with side handles and rigging points, the Delta-X215 combines huge output with practical deployment for touring or fixed installations.
| Active or Passive | Passive |
| System Type | Full-Range |
| Configuration | Quasi 3-way |
| System Continuous Power | 1000 W |
| System Programme Power | 2000 W |
| System Peak Power | 4000 W |
| Max SPL @ 1m | 137 dB |
| Freq Range (-10 dB) | 40 Hz - 20 kHz |
| Freq Response (+/-3 dB) | 45 Hz - 20 kHz |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 2 x 15" |
| LF Voice Coil Size | 3" |
| LF Rated Impedance | 8 Ω |
| LF Power (RE:AES2-2012) | 2 x 500 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 2" |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1.4" |
| HF Power (RE:AES2-2012) | 50 W |
| HF Rated Impedance | 8 Ω |
| HF Nominal Coverage (H x V) | 90° x 45° |
| Preset | Yes |
| Input Connector | 2 x 4 Pole Speaker Connector |
| Waveguide Type | Elliptical |
| Enclosure Material | Birch Plywood |
| Grille Material and Finish | Steel Black |
| Finish | Black Tough-Tone |
| Handles | 3 |
| Deployment | Ground |
| Pole Mount | None |
| Sensitivity 2.83v / 1m | 101 dB |
| System Rated Impedance | 4 Ω |
| Crossover Frequency | 1.8 kHz |
| Recommended HPF = BW 18 dB/OCT. | 40 Hz |
| EQ Type | None |
| Included Accessory | User Manual, 2 x Castor Wheels |
| Unpacked - Height (mm) | 1135 |
| Unpacked - Width Front (mm) | 488 |
| Unpacked - Width Rear (mm) | 300 |
| Unpacked - Depth (mm) | 450 |
| Packed - Height (mm) | 1218 |
| Packed - Width Front (mm) | 558 |
| Packed - Width Rear (mm) | 558 |
| Packed - Depth (mm) | 522 |
| Weight - Nett (kg) | 52.9 |
| Weight - Gross (kg) | 59 |
