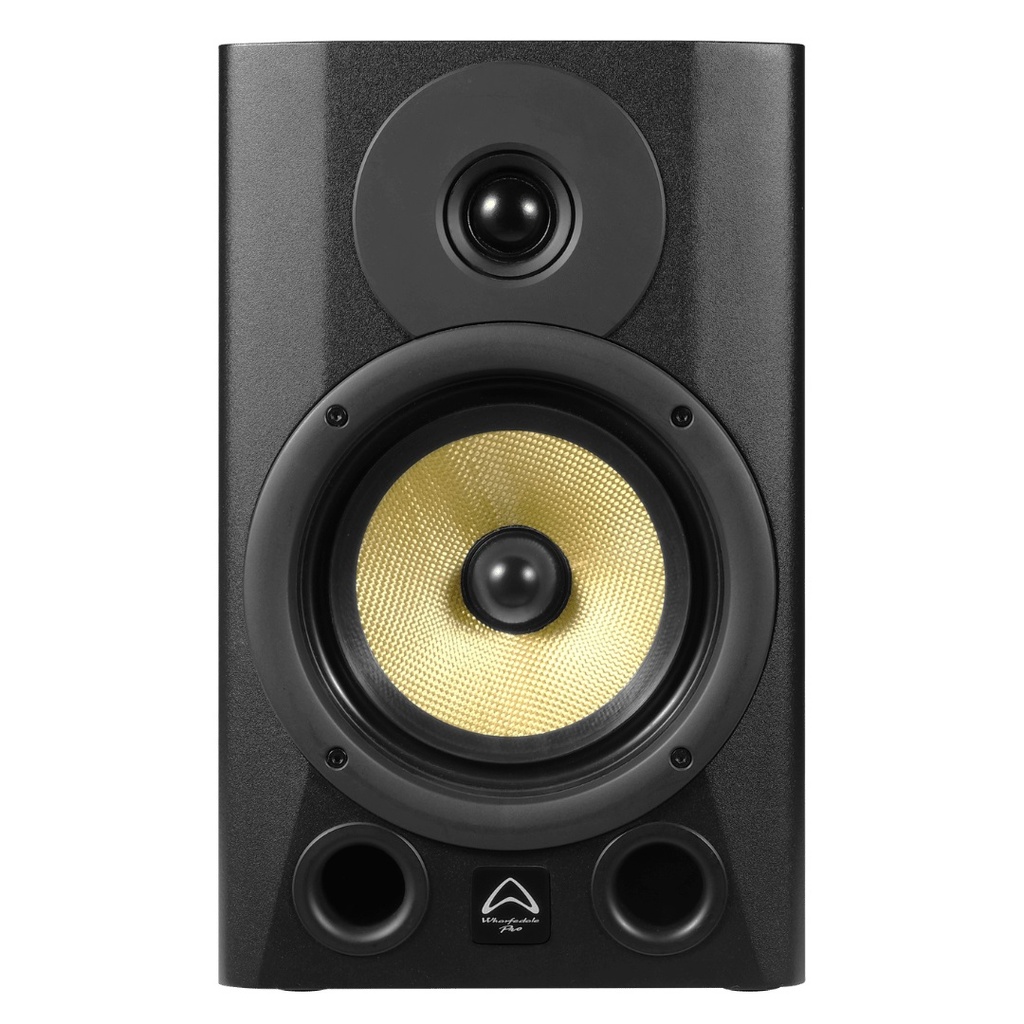

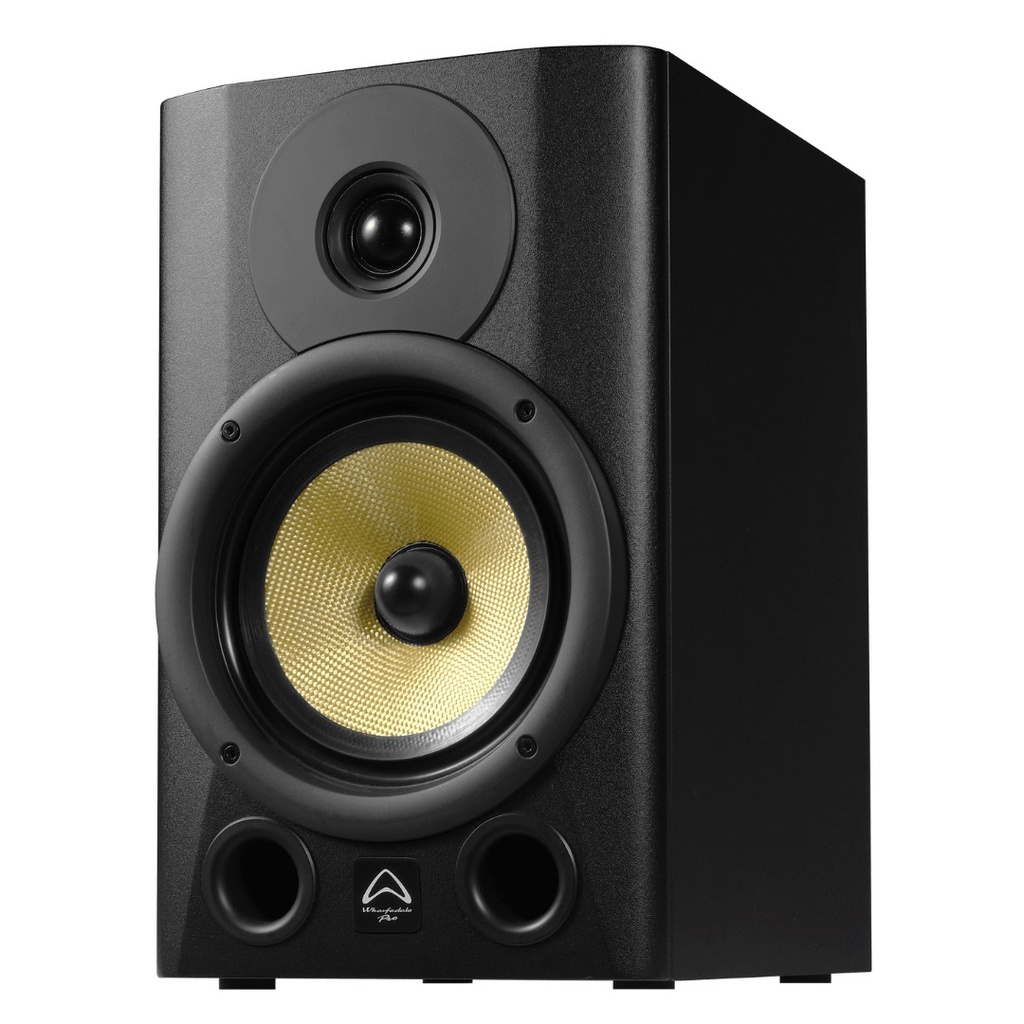

The Diamond Studio 7 is a 6.5-inch, two-way active studio monitor built for clarity and precision.
With 150 W continuous (HF at 60 W and LF at 90 W) and up to 300 W peak power, it delivers an impressive 113 dB SPL peak @ 1 m, giving confident headroom in nearfield and small control-room settings. Its woven fibreglass woofer ensures tight, responsive low frequencies, while the silk soft-dome tweeter provides clear, uncoloured highs.

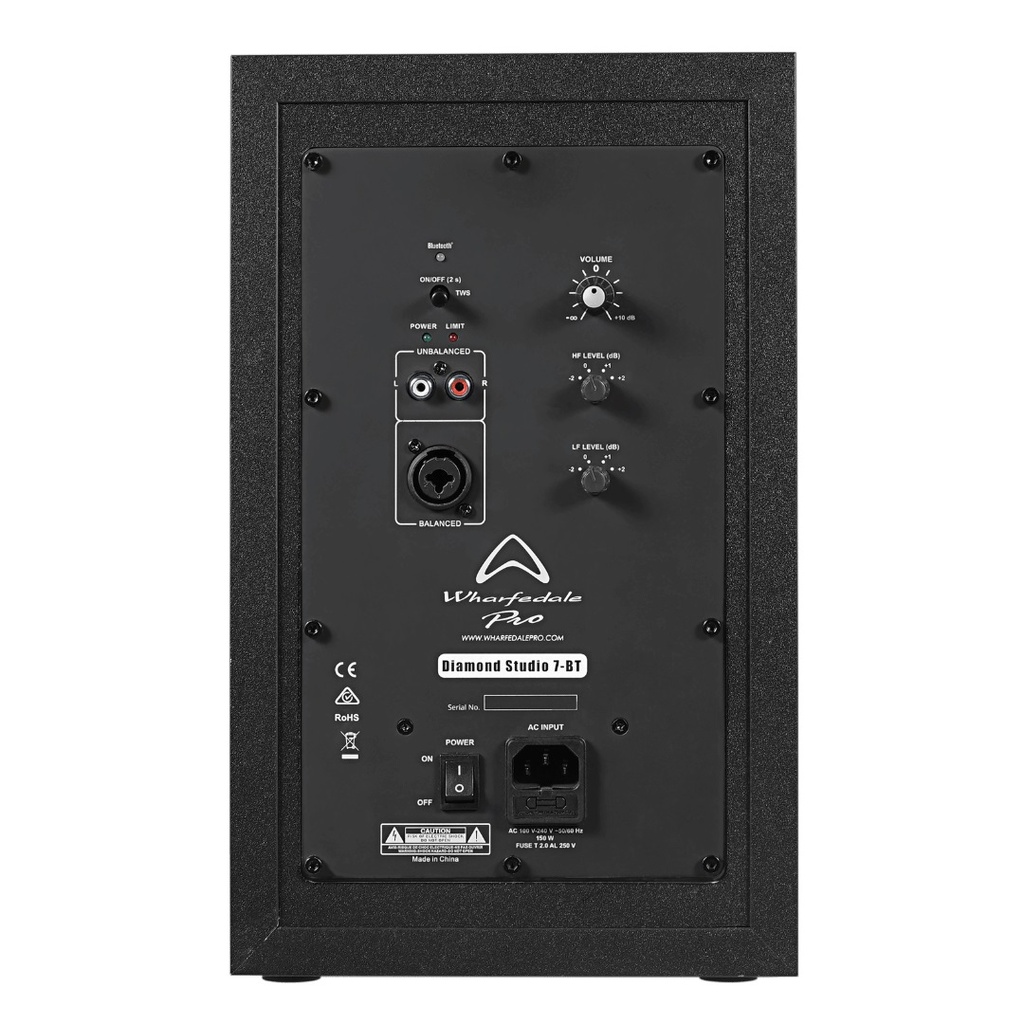

Connectivity is versatile with its balanced XLR/¼-inch combo and RCA unbalanced connectors. Rear-panel HF and LF level controls also allow fine tuning to room acoustics. The MDF cabinet, efficient Class-D amplification, and honest, transparent sound profile make the Diamond Studio 7 a dependable tool for serious mixing and precision monitoring.
| Specification | Value |
|---|---|
| Active or Passive | Active |
| System Type | Studio Monitor |
| Configuration | 2-way |
| System Continuous Power | 150 W |
| System Peak Power | 300 W |
| Max SPL @ 1m | 113 dB |
| Freq Range (-10 dB) | 38 Hz - 25 kHz |
| Freq Response (+/-3 dB) | 48 Hz - 25 kHz |
| Bluetooth | Yes |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 6.5" |
| LF Voice Coil Size | 1" |
| LF Rated Impedance | 4 Ω |
| LF Power (RE:AES2-2012) | 60 W |
| HF Driver Type | Soft Dome Tweeter |
| HF Voice Coil Size | 1" |
| HF Diaphragm Material | Silk |
| HF Power (RE:AES2-2012) | 10 W |
| HF Rated Impedance | 4 Ω |
| HF Nominal Coverage (H x V) | 135° x 110° |
| Input Connector | 1/4” Jack / XLR Combo / 2 x RCA / BT |
| Waveguide Type | Rounded |
| Enclosure Material | MDF |
| Finish | Black Paint |
| Deployment | Desktop |
| Pole Mount | None |
| Sensitivity 2.83v / 1m | n/a dB |
| System Rated Impedance | n/a |
| Crossover Frequency | 2.2 kHz |
| Recommended HPF = BW 18 dB/OCT. | 38 Hz |
| Amplifier design | Class D |
| DSP Controls | HF / LF Level Adjust (-2, 0, +1 ,+2) |
| EQ Type | HF / LF Level Adjust (-2, 0, +1 ,+2) |
| Main Power | 100 V - 240 V |
| Power Supply | SMPS |
| Included Accessory | Quick Start Guide, AC cable |
| Unpacked - Height (mm) | 340 |
| Unpacked - Width Front (mm) | 210 |
| Unpacked - Width Rear (mm) | 210 |
| Unpacked - Depth (mm) | 260 |
| Packed - Height (mm) | 400 |
| Packed - Width Front (mm) | 272 |
| Packed - Width Rear (mm) | 272 |
| Packed - Depth (mm) | 325 |
| Weight - Nett (kg) | 6.84 |
| Weight - Gross (kg) | 7.82 |
