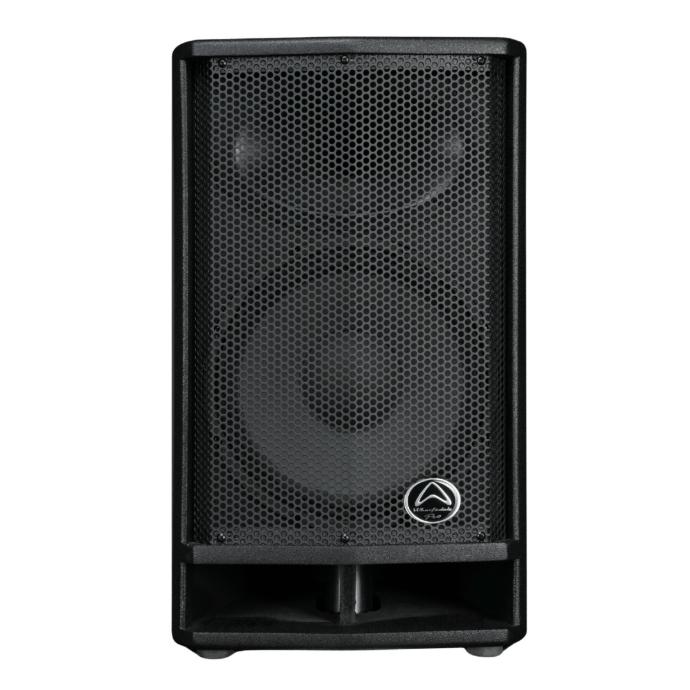

Wharfedale 12" Powered Speaker offers reliable, full-range performance for portable rigs and permanent installs.
| Specification | Value |
|---|---|
| Active or Passive | Active |
| System Type | Full-Range |
| Configuration | 2-way |
| System Continuous Power | 200 W |
| System Peak Power | 400 W |
| Max SPL @ 1m | 129 dB |
| Freq Range (-10 dB) | 55 Hz - 20 KHz |
| Freq Response (+/-3 dB) | 60 Hz - 18 KHz |
| IP Certification | None |
| Driver Brand | Wharfedale Pro |
| LF Driver Size | 12" |
| LF Voice Coil Size | 2.5" |
| LF Rated Impedance | 4 Ω |
| LF Power (RE:AES2-2012) | 300 W |
| HF Driver Type | Compression Driver |
| HF Voice Coil Size | 1.75″ |
| HF Diaphragm Material | Titanium |
| HF Exit Size | 1″ |
| HF Power (RE:AES2-2012) | 40 W |
| HF Rated Impedance | 8 Ω |
| HF Nominal Coverage (H x V) | 90° x 60° |
| Input Connector | 2 x XLR & 2 x 1/4″ (Line/MIC) |
| Waveguide Type | Elliptical |
| Enclosure Material | MDF |
| Grille Material and Finish | Steel Black |
| Finish | Black Paint |
| Handles | 2 |
| Deployment | Pole |
| Pole Mount | Dual Angle (0° / 10°) 35 mm |
| Sensitivity 2.83v / 1m | n/a dB |
| System Rated Impedance | n/a |
| Crossover Frequency | 2.2 KHz |
| Recommended HPF = BW 18 dB/OCT. | 55 Hz |
| Amplifier design | Class D |
| DSP Controls | Flat / Monitor / Speech / Bass / Punch / Live |
| Preset list | Flat / Monitor / Speech / Bass / Punch / Live |
| Active loudspeaker Input Impedance | Balanced: 20 K |
| Link Connector | pin XLR |
| Input sensitivity | 775 mv |
| Max input level | 4 v |
| Line output | Switchable LOOP/MIX Balanced Socket XLR |
| Main Power | 220-240 V 50/60 Hz |
| Power Supply | SMPS |
| Included Accessory | User Manual, AC Cable |
| Unpacked - Height (mm) | 617 |
| Unpacked - Width Front (mm) | 361.2 |
| Unpacked - Width Rear (mm) | 207.6 |
| Unpacked - Depth (mm) | 342.4 |
| Packed - Height (mm) | 680 |
| Packed - Width Front (mm) | 438 |
| Packed - Width Rear (mm) | 236 |
| Packed - Depth (mm) | 428 |
| Weight - Nett (kg) | 18.7 |
| Weight - Gross (kg) | 21.4 |
